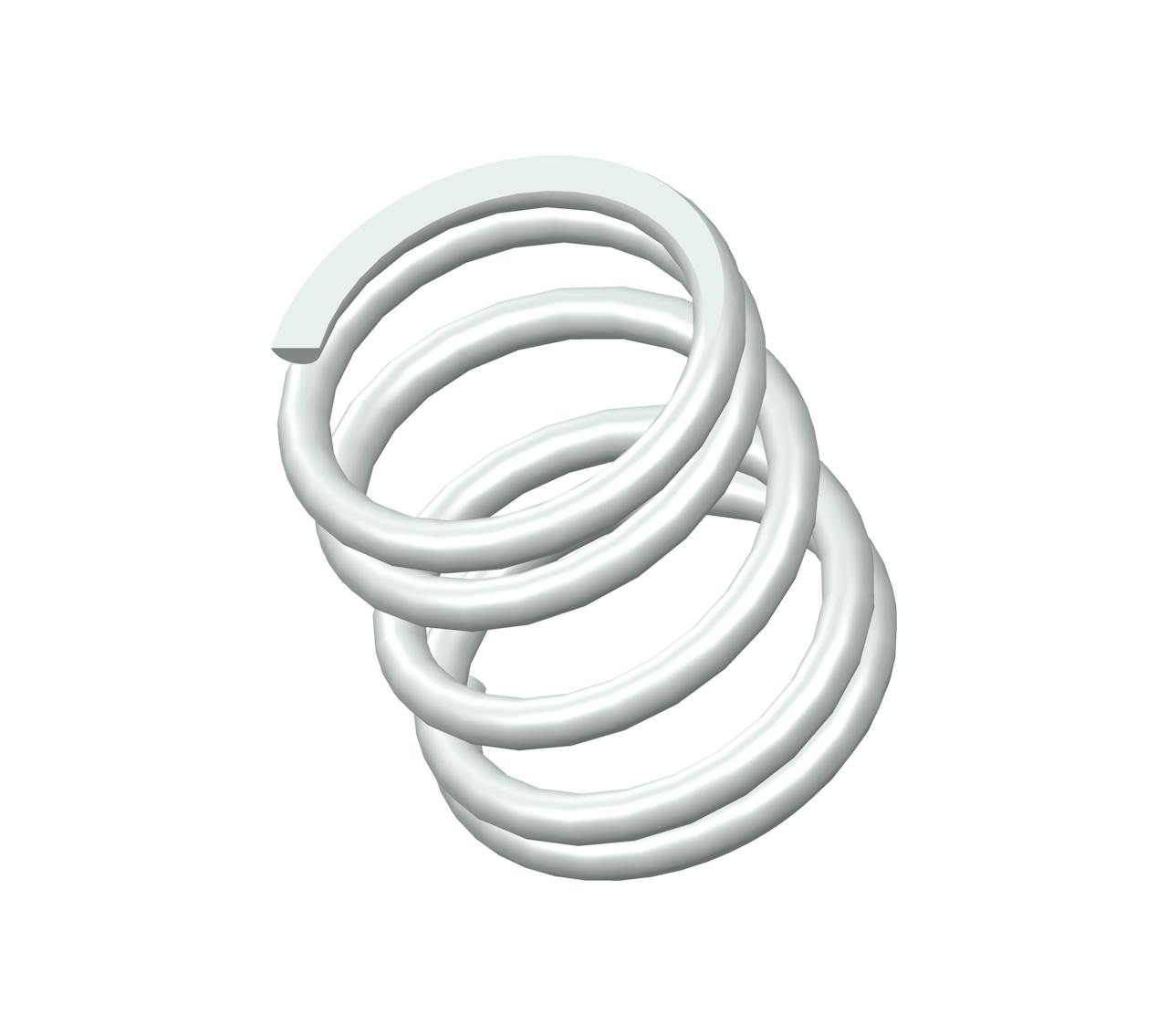

S-1047CS - 1.25" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 5 coils and closed & ground ends. This spring features an O.D. of 1.14", and an I.D. of 0.9".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1047 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.25 in |
| Inside Diameter | 0.9 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.14 in |
| Part Type | Standard |
| Rate | 81 lbs/in |
| SKU | S-1047CS |
| Solid Length | 0.6 in |
| Suggested Max Deflection | 0.54 in |
| Suggested Max Load | 44 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.12 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1047 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 31.75 mm |
| Inside Diameter | 22.86 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 28.96 mm |
| Part Type | Standard |
| Rate | 14.18 N/mm |
| SKU | S-1047CS |
| Solid Length | 15.24 mm |
| Suggested Max Deflection | 13.72 mm |
| Suggested Max Load | 195.71 N |
| Total Coils | 5 |
| Wire Diameter | 3.05 mm |
The compression spring S-1047CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1047 compression spring design exhibits exceptional tensile strength and resilience.
The S-1047 design is manufactured with a free length of 1.25", with an outer diameter of 1.14", an inner diameter of 0.9", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 81 lbs/in.
The S-1047CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1047 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
