Century Spring

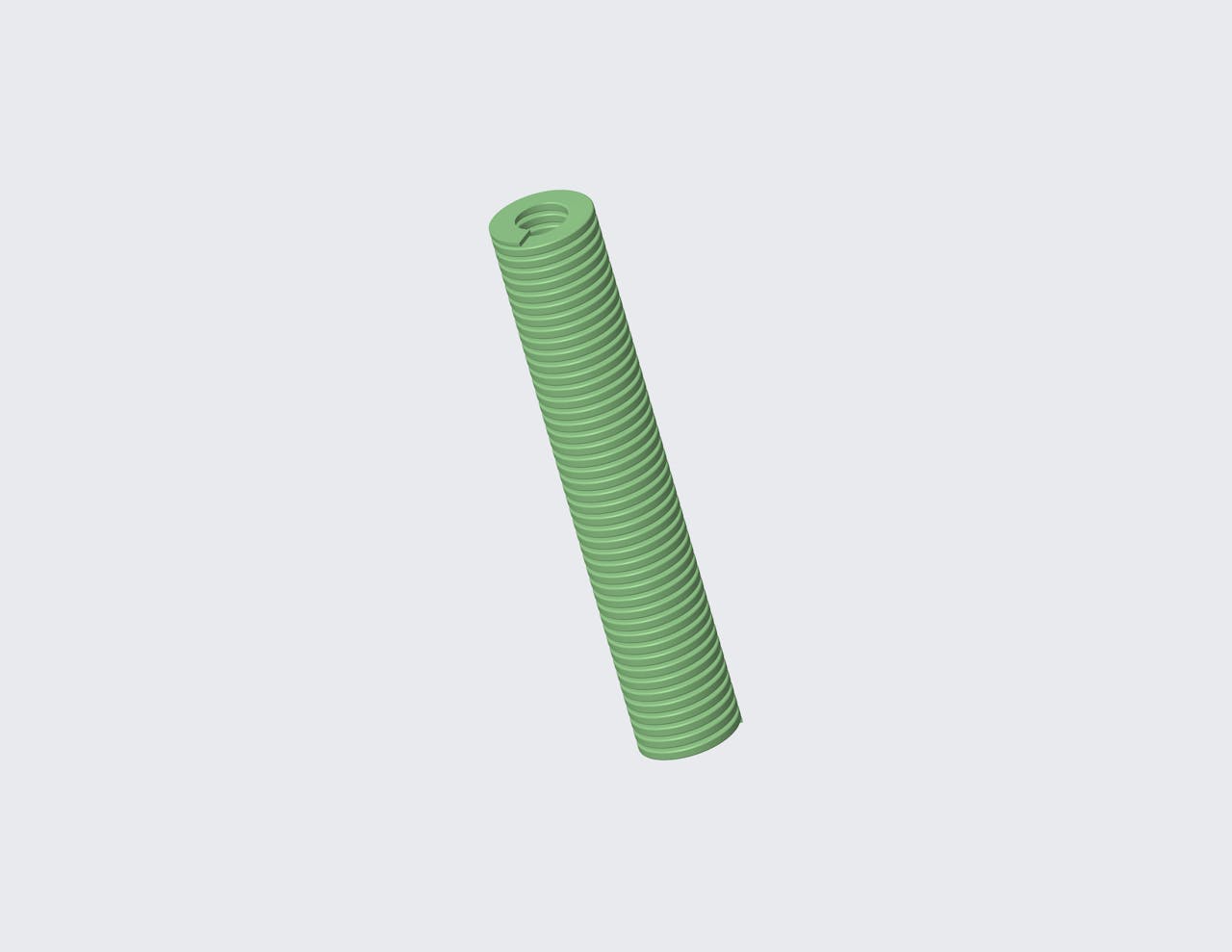

D-305420CS - 127 Millimeter Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 127 Millimeter long and has a 37.3 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1 in
Deflection 2 1.252 in
Deflection 3 1.5 in
Display Name D-305420
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 5 in
Hole Size 0.7874 in
Load 1 213.1295 lbf
Load 2 266.4119 lbf
Load 3 319.6942 lbf
Load At Max Deflection 359.0378 lbf
Material Chrome Silicon
Max Deflection 1.685 in
Measurement Units Metric
Rate 213.0211 lbs/in
Rod Size 0.3937 in
SKU D-305420CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 25.4 mm
Deflection 2 31.8 mm
Deflection 3 38.1 mm
Display Name D-305420
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 127 mm
Hole Size 20 mm
Load 1 948 N
Load 2 1185 N
Load 3 1422 N
Load At Max Deflection 1597 N
Material Chrome Silicon
Max Deflection 42.8 mm
Measurement Units Metric
Rate 37.3 N/mm
Rod Size 10 mm
SKU D-305420CS
