Century Spring

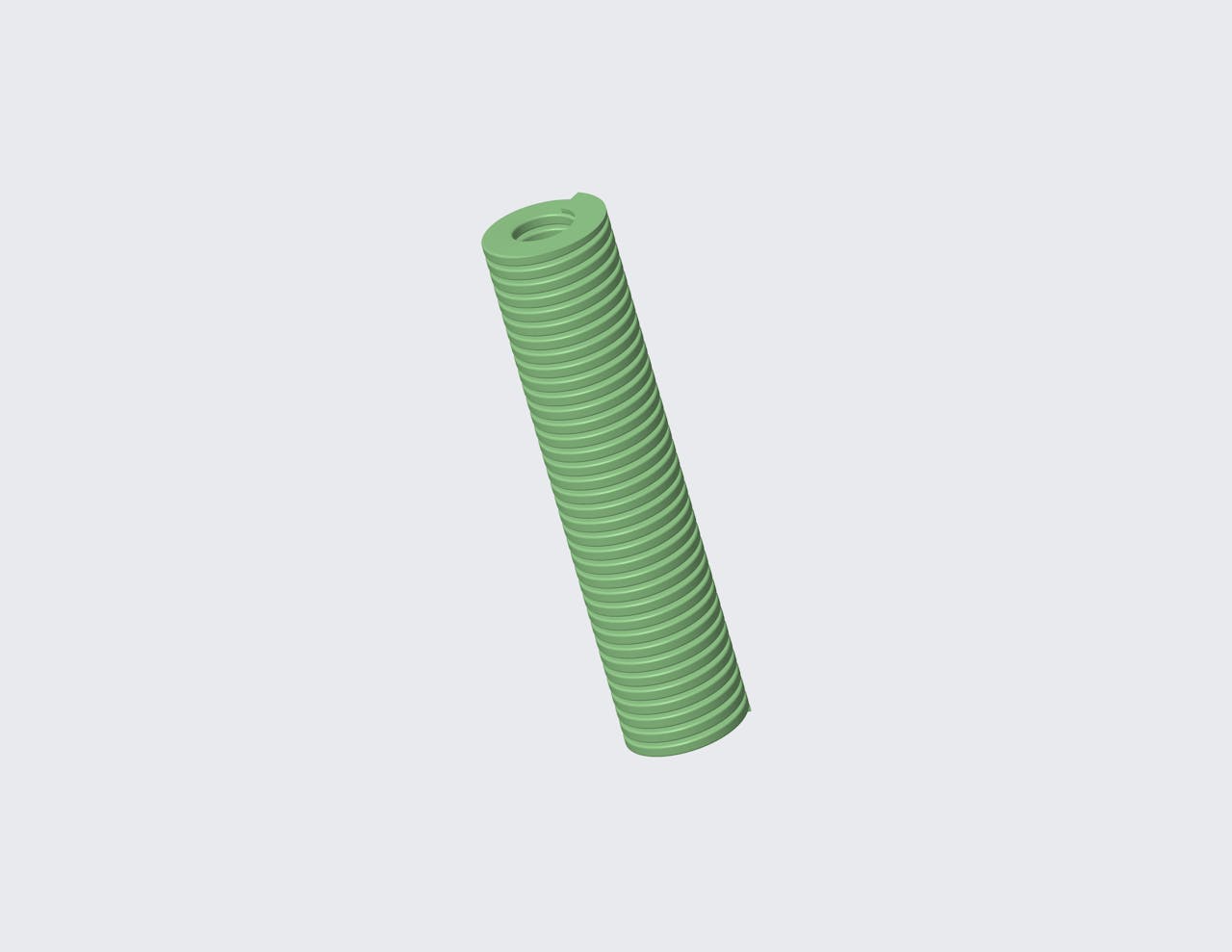

D-305416CS - 102 Millimeter Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 102 Millimeter long and has a 46.5 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.8031 in
Deflection 2 1.0039 in
Deflection 3 1.2047 in
Display Name D-305416
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 4.0157 in
Hole Size 0.7874 in
Load 1 213.3543 lbf
Load 2 266.8615 lbf
Load 3 320.1439 lbf
Load At Max Deflection 353.6421 lbf
Material Chrome Silicon
Max Deflection 1.3307 in
Measurement Units Metric
Rate 265.5625 lbs/in
Rod Size 0.3937 in
SKU D-305416CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 20.4 mm
Deflection 2 25.5 mm
Deflection 3 30.6 mm
Display Name D-305416
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 102 mm
Hole Size 20 mm
Load 1 949 N
Load 2 1187 N
Load 3 1424 N
Load At Max Deflection 1573 N
Material Chrome Silicon
Max Deflection 33.8 mm
Measurement Units Metric
Rate 46.5 N/mm
Rod Size 10 mm
SKU D-305416CS
