4052 - 4.25 Inch Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

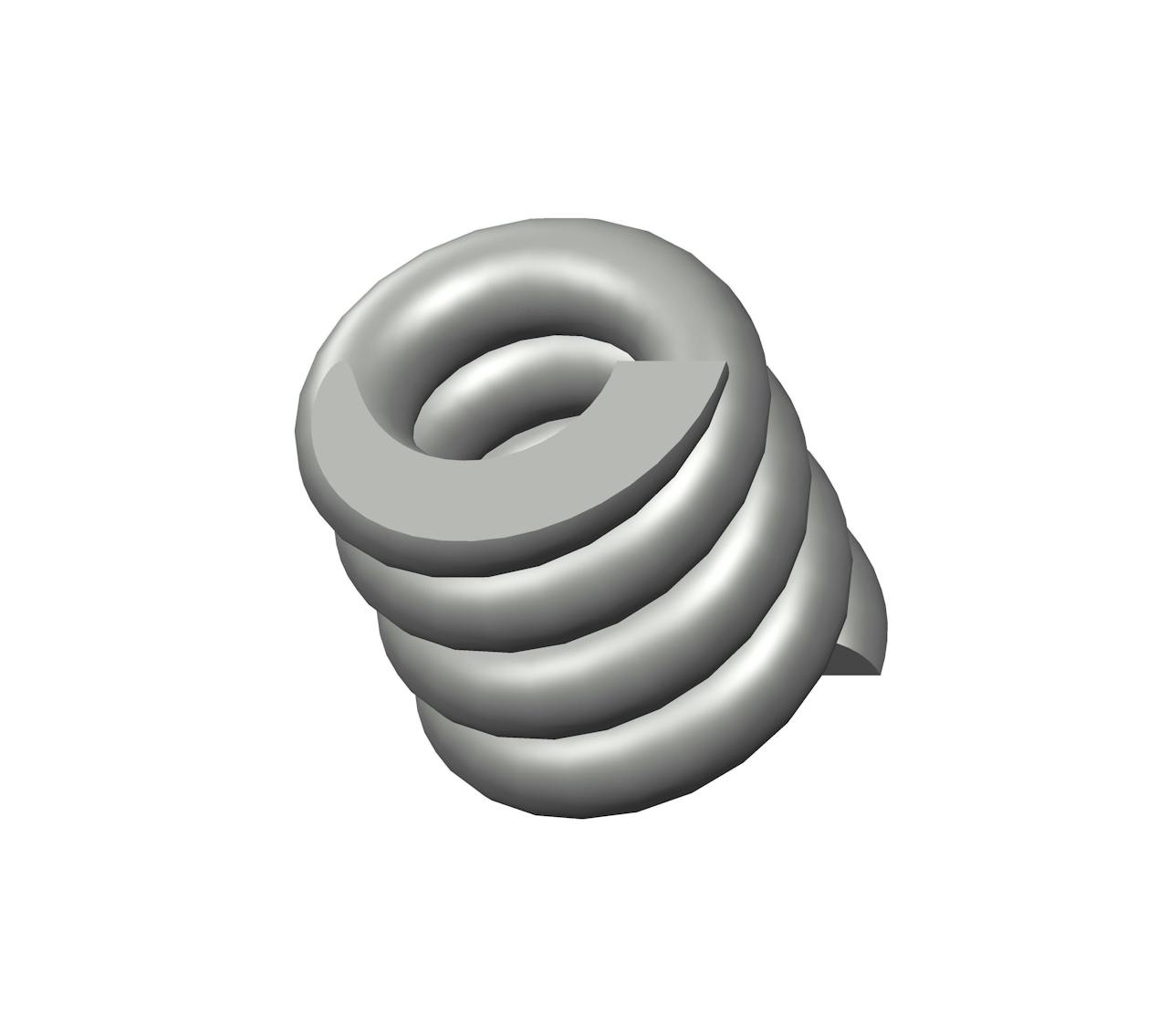

Regular compression spring in Spring Steel with 4 total coils and Closed & Ground ends. This spring features an O.D. of 4 Inch, and an I.D. of 2 Inch.
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 4052 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 4.25 in |
| Inside Diameter | 2 in |
| Material | Spring Steel |
| Outside Diameter | 4 in |
| Part Type | Standard |
| Rate | 26620 lbs/in |
| SKU | 4052CS |
| Solid Length | 4 in |
| Suggested Max Deflection | 0.14 in |
| Suggested Max Load | 3645 lbf |
| Total Coils | 4 |
| Wire Diameter | 1 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 4052 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 107.95 mm |
| Inside Diameter | 50.8 mm |
| Material | Spring Steel |
| Outside Diameter | 101.6 mm |
| Part Type | Standard |
| Rate | 4661.16 N/mm |
| SKU | 4052CS |
| Solid Length | 101.6 mm |
| Suggested Max Deflection | 3.56 mm |
| Suggested Max Load | 16212.96 N |
| Total Coils | 4 |
| Wire Diameter | 25.4 mm |
The 4052CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 1" diameter hard drawn, the 4052 spring design exhibits reliable strength across its 4 active coils, withstanding repeated compression cycles with a maximum load of 3645 lbf without succumbing to fatigue.
We manufacture the 4052 design to provide a compression spring that is 4.25" long at rest and provides a consistent rate of 26620 lbs/in along its recommended maximum of 0.14" deflection. For best results, your application should fully accommodate the inner (2") and outer (4") diameters of this spring and be designed for its closed & ground end configuration.
