Century Spring

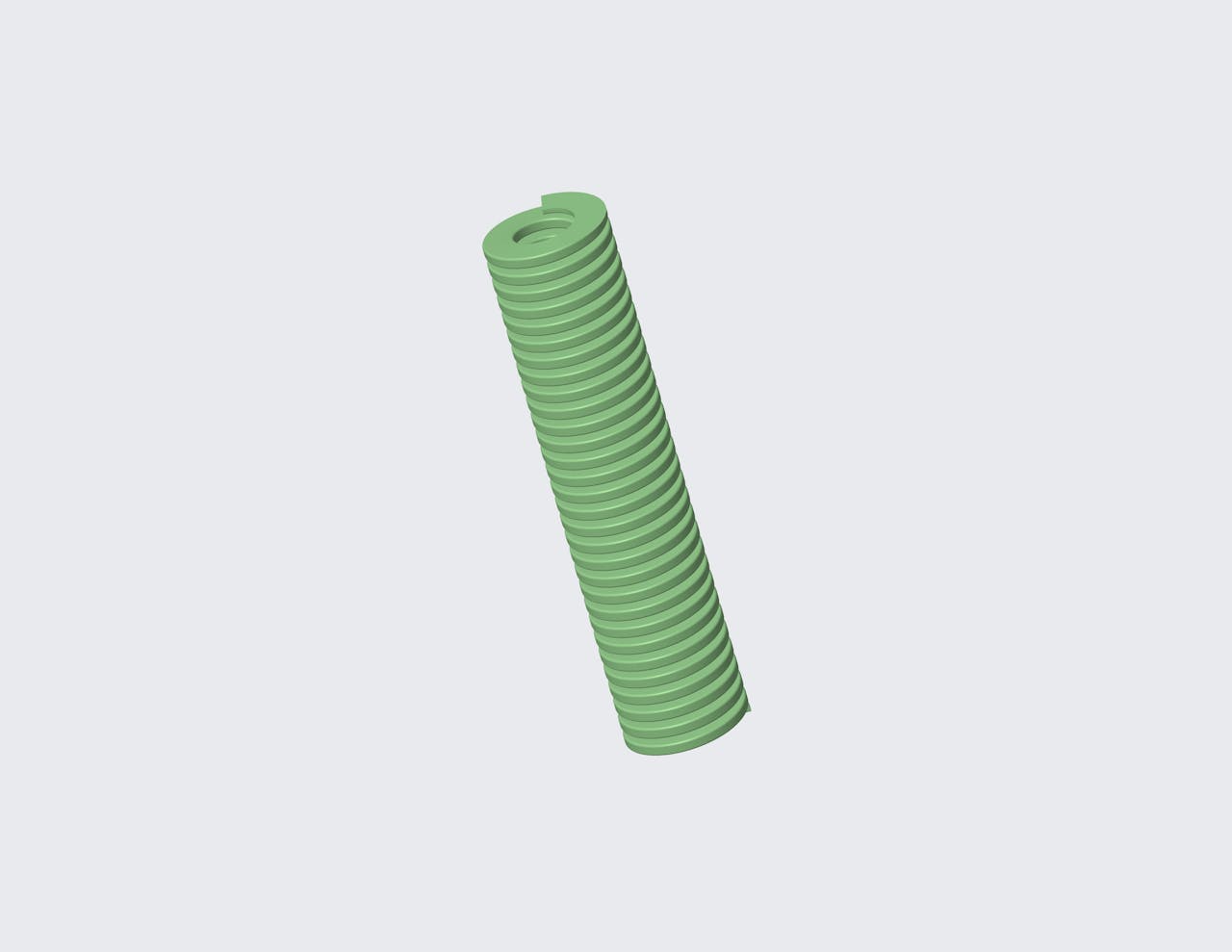

D-305108CS - 51 Millimeter Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 51 Millimeter long and has a 12 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.4016 in
Deflection 2 0.5039 in
Deflection 3 0.6024 in
Display Name D-305108
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 2.0079 in
Hole Size 0.3937 in
Load 1 27.4281 lbf
Load 2 34.3975 lbf
Load 3 41.1421 lbf
Load At Max Deflection 59.8022 lbf
Material Chrome Silicon
Max Deflection 0.874 in
Measurement Units Metric
Rate 68.5323 lbs/in
Rod Size 0.1969 in
SKU D-305108CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 10.2 mm
Deflection 2 12.8 mm
Deflection 3 15.3 mm
Display Name D-305108
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 51 mm
Hole Size 10 mm
Load 1 122 N
Load 2 153 N
Load 3 183 N
Load At Max Deflection 266 N
Material Chrome Silicon
Max Deflection 22.2 mm
Measurement Units Metric
Rate 12 N/mm
Rod Size 5 mm
SKU D-305108CS
