67786SCS - 0.84" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

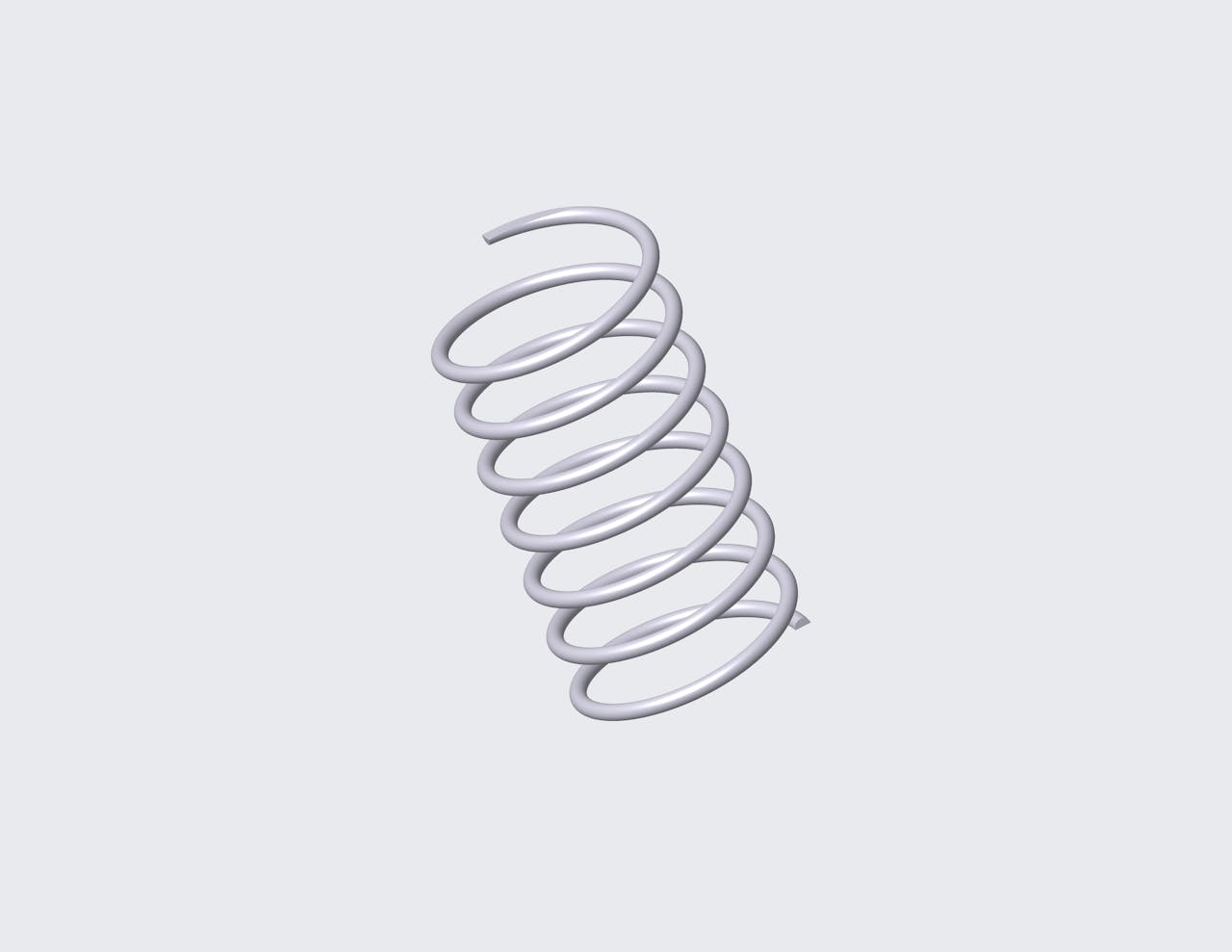

Compression spring manufactured from 316 stainless steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.437", and an I.D. of 0.377".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 67786S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 0.84 in |
| Inside Diameter | 0.377 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.437 in |
| Part Type | Standard |
| Rate | 3.004 lbs/in |
| SKU | 67786SCS |
| Solid Length | 0.21 in |
| Suggested Max Deflection | 0.63 in |
| Suggested Max Load | 1.893 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.03 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 67786S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 21.34 mm |
| Inside Diameter | 9.58 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 11.1 mm |
| Part Type | Standard |
| Rate | 0.53 N/mm |
| SKU | 67786SCS |
| Solid Length | 5.33 mm |
| Suggested Max Deflection | 16 mm |
| Suggested Max Load | 8.42 N |
| Total Coils | 7 |
| Wire Diameter | 0.76 mm |
The compression spring 67786SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 67786S compression spring design exhibits exceptional tensile strength and resilience.
The 67786S design is manufactured with a free length of 0.84", with an outer diameter of 0.437", an inner diameter of 0.377", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.004 lbs/in.
The 67786SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 67786S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 67786S design is manufactured with a free length of 0.84", with an outer diameter of 0.437", an inner diameter of 0.377", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.004 lbs/in.
The 67786SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 67786S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
