Century Spring

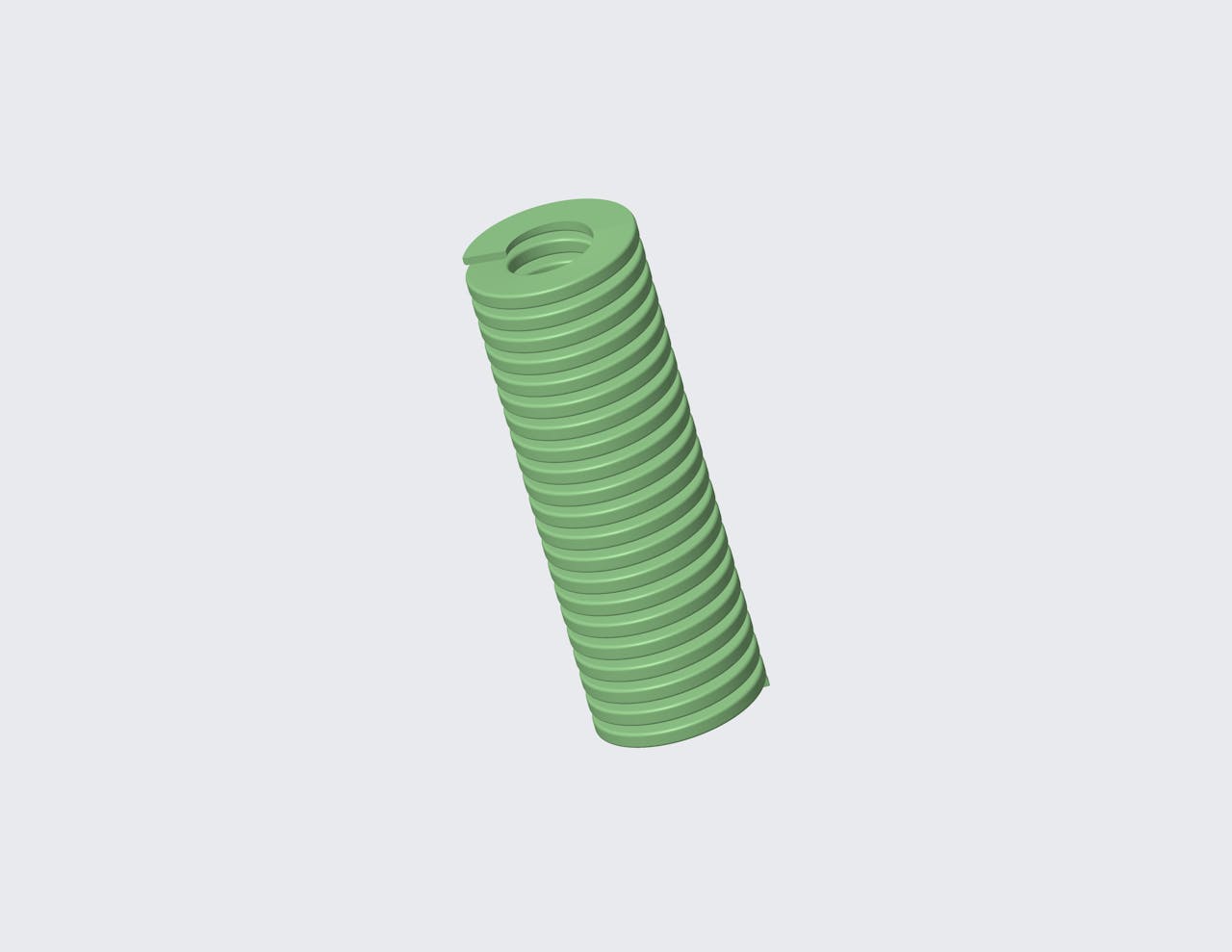

D-304722CS - 139 Millimeter Medium Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 139 Millimeter long and has a 55.3 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.3701 in
Deflection 2 1.6417 in
Deflection 3 2.189 in
Display Name D-304722
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 5.4724 in
Hole Size 1.5748 in
Load 1 432.3291 lbf
Load 2 518.6601 lbf
Load 3 691.5468 lbf
Load At Max Deflection 709.0827 lbf
Material Chrome Silicon
Max Deflection 2.2441 in
Measurement Units Metric
Rate 315.8195 lbs/in
Rod Size 0.7874 in
SKU D-304722CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 34.8 mm
Deflection 2 41.7 mm
Deflection 3 55.6 mm
Display Name D-304722
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 139 mm
Hole Size 40 mm
Load 1 1923 N
Load 2 2307 N
Load 3 3076 N
Load At Max Deflection 3154 N
Material Chrome Silicon
Max Deflection 57 mm
Measurement Units Metric
Rate 55.3 N/mm
Rod Size 20 mm
SKU D-304722CS
