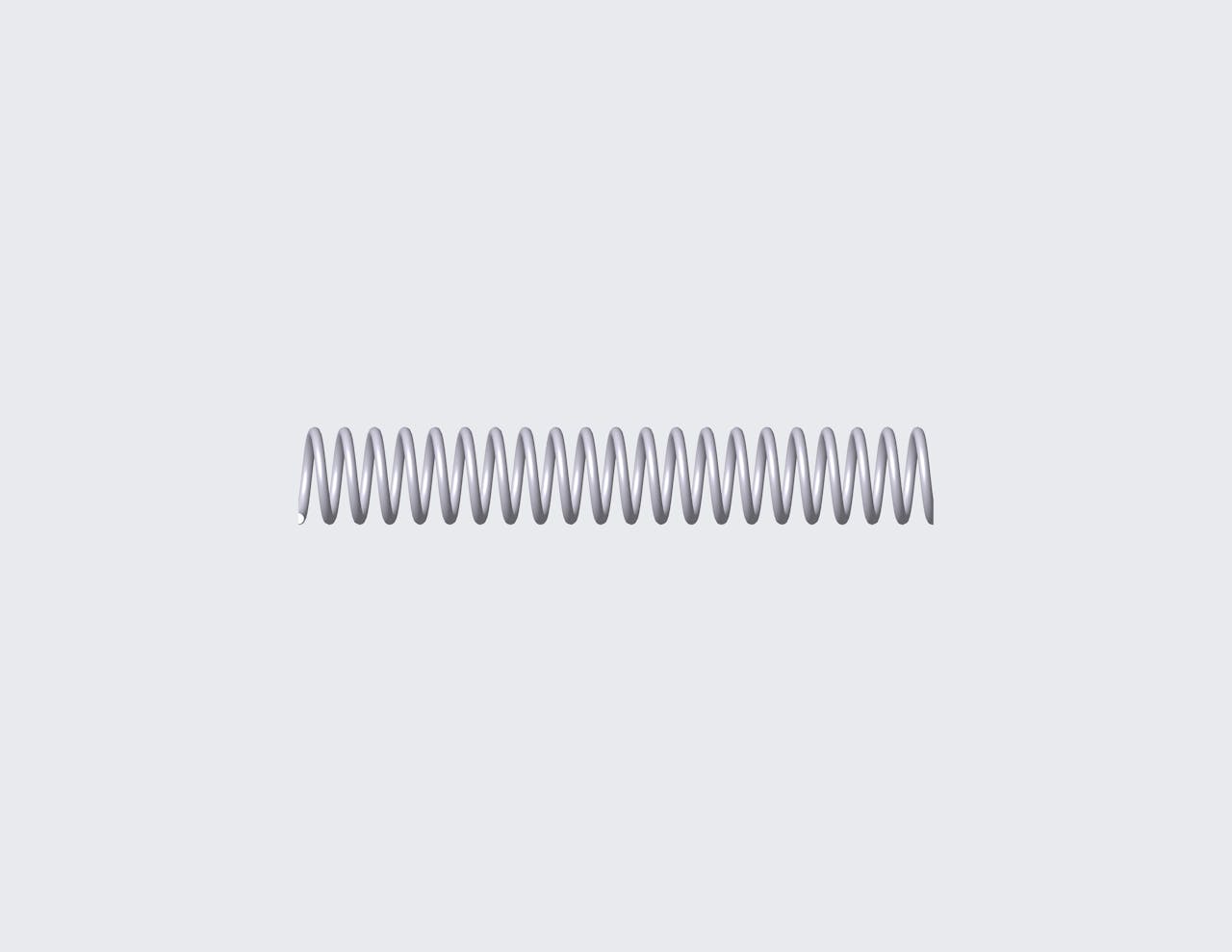

77149CS - 14.37" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 20.69 coils and closed & ground ends. This spring features an O.D. of 2.219", and an I.D. of 1.719".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 77149
Ends Closed & Ground
Finish None
Free Length 14.37 in
Inside Diameter 1.719 in
Material Music Wire
Outside Diameter 2.219 in
Part Type Metric
Rate 39.387 lbs/in
SKU 77149CS
Solid Length 5.173 in
Suggested Max Deflection 7.048 in
Suggested Max Load 277.603 lbf
Total Coils 20.69
Wire Diameter 0.25 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 77149
Ends Closed & Ground
Finish None
Free Length 365 mm
Inside Diameter 43.66 mm
Material Music Wire
Outside Diameter 56.36 mm
Part Type Metric
Rate 6.9 N/mm
SKU 77149CS
Solid Length 131.39 mm
Suggested Max Deflection 179.02 mm
Suggested Max Load 1234.78 N
Total Coils 20.69
Wire Diameter 6.35 mm
The 77149CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.25" diameter music wire, the 77149 spring design exhibits reliable strength across its 20.69 active coils, withstanding repeated compression cycles with a maximum load of 277.603 lbf without succumbing to fatigue.

We manufacture the 77149 design to provide a compression spring that is 14.37" long at rest and provides a consistent rate of 39.387 lbs/in along its recommended maximum of 7.048" deflection. For best results, your application should fully accommodate the inner (1.719") and outer (2.219") diameters of this spring and be designed for its closed & ground end configuration.
