Century Spring

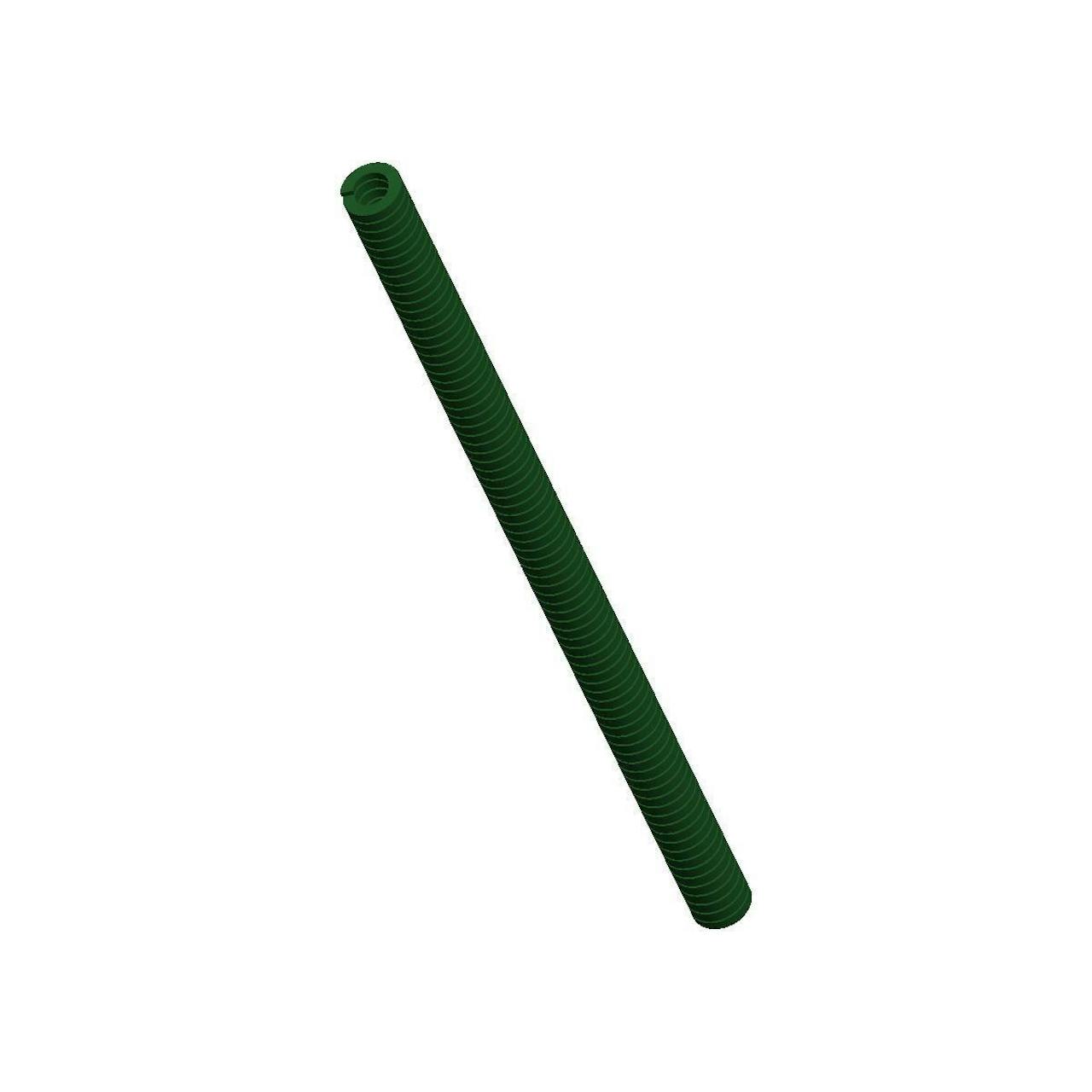

D-1427CS - 12 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

12 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 81 lb
Brand Century Spring
Deflection For Average Life 1.8 in
Deflection For Long Life 2.4 in
Display Name D-1427
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 12 in
Hole Size 0.625 in
Long Life Deflection Force 108 lb
Material Chrome Alloy
Maximum Deflection 3 in
Maximum Deflection Force 135 lb
Measurement Units Standard
Rate 45 lbs/in
Rod Size 0.3428 in
SKU D-1427CS
Wire Diameter 0.126 in x 0.11 in
Specs (in metric)
Label Value
Average Life Deflection Force 36.73 kg
Brand Century Spring
Deflection For Average Life 45.72 mm
Deflection For Long Life 60.96 mm
Display Name D-1427
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 304.8 mm
Hole Size 15.88 mm
Long Life Deflection Force 48.98 kg
Material Chrome Alloy
Maximum Deflection 76.2 mm
Maximum Deflection Force 61.22 kg
Measurement Units Standard
Rate 7.88 N/mm
Rod Size 8.71 mm
SKU D-1427CS
Wire Diameter 3.2 mm x 2.79 mm
