Century Spring

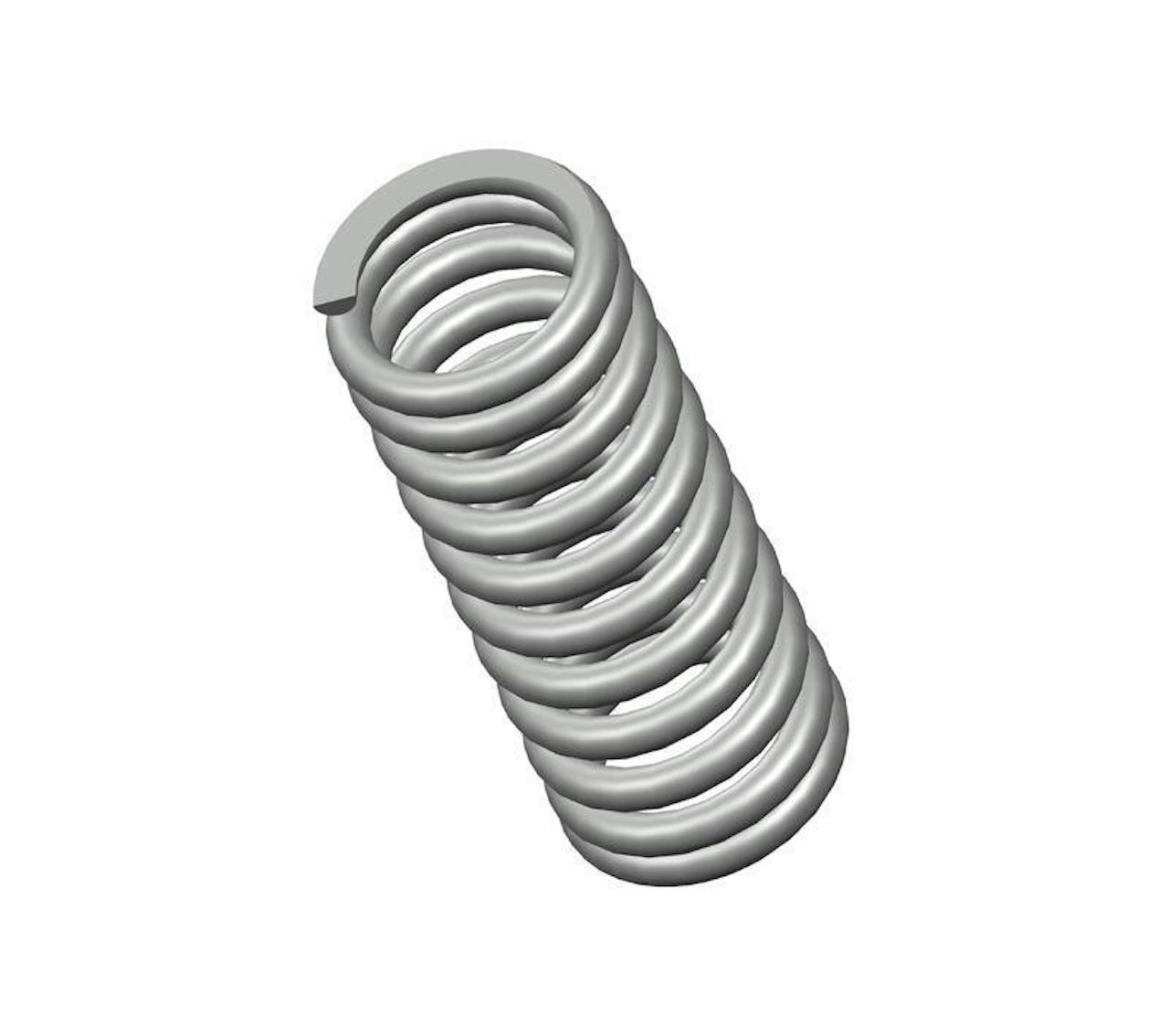

73467CS - 10" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 11.1 coils and closed & ground ends. This spring features an O.D. of 3.906", and an I.D. of 2.782".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73467
Ends Closed & Ground
Finish None
Free Length 10 in
Inside Diameter 2.782 in
Material Oil Tempered
Outside Diameter 3.906 in
Part Type Standard
Rate 420 lbs/in
SKU 73467CS
Solid Length 6.26 in
Suggested Max Deflection 2.7 in
Suggested Max Load 1144 lbf
Total Coils 11.1
Wire Diameter 0.562 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73467
Ends Closed & Ground
Finish None
Free Length 254 mm
Inside Diameter 70.66 mm
Material Oil Tempered
Outside Diameter 99.21 mm
Part Type Standard
Rate 73.54 N/mm
SKU 73467CS
Solid Length 159 mm
Suggested Max Deflection 68.58 mm
Suggested Max Load 5088.51 N
Total Coils 11.1
Wire Diameter 14.27 mm
The compression spring 73467CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73467 compression spring design exhibits exceptional tensile strength and resilience.

The 73467 design is manufactured with a free length of 10", with an outer diameter of 3.906", an inner diameter of 2.782", and a total of 11.1 coils, expertly designed to deliver consistent compression characteristics including a rate of 420 lbs/in.

The 73467CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73467 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
