Century Spring

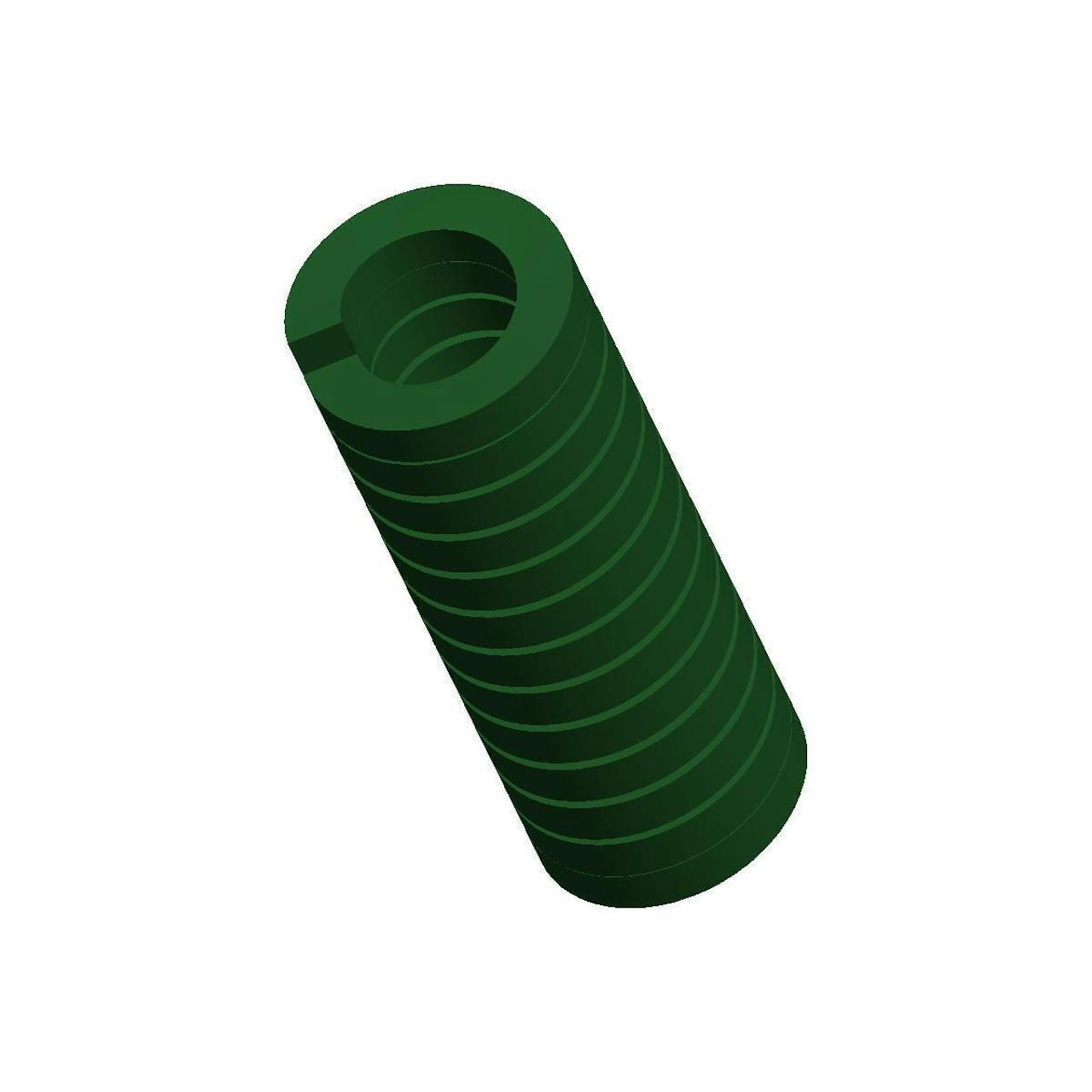

D-1411CS - 1.5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

1.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 45 lb
Brand Century Spring
Deflection For Average Life 0.23 in
Deflection For Long Life 0.3 in
Display Name D-1411
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 1.5 in
Hole Size 0.5 in
Long Life Deflection Force 60 lb
Material Chrome Alloy
Maximum Deflection 0.38 in
Maximum Deflection Force 75 lb
Measurement Units Standard
Rate 200 lbs/in
Rod Size 0.2813 in
SKU D-1411CS
Wire Diameter 0.097 in x 0.084 in
Specs (in metric)
Label Value
Average Life Deflection Force 20.41 kg
Brand Century Spring
Deflection For Average Life 5.84 mm
Deflection For Long Life 7.62 mm
Display Name D-1411
Duty Load Extra Heavy
Finish None
Finish Color Green
Free Length 38.1 mm
Hole Size 12.7 mm
Long Life Deflection Force 27.21 kg
Material Chrome Alloy
Maximum Deflection 9.65 mm
Maximum Deflection Force 34.01 kg
Measurement Units Standard
Rate 35.02 N/mm
Rod Size 7.15 mm
SKU D-1411CS
Wire Diameter 2.46 mm x 2.13 mm
