G-75CS - 0.88" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

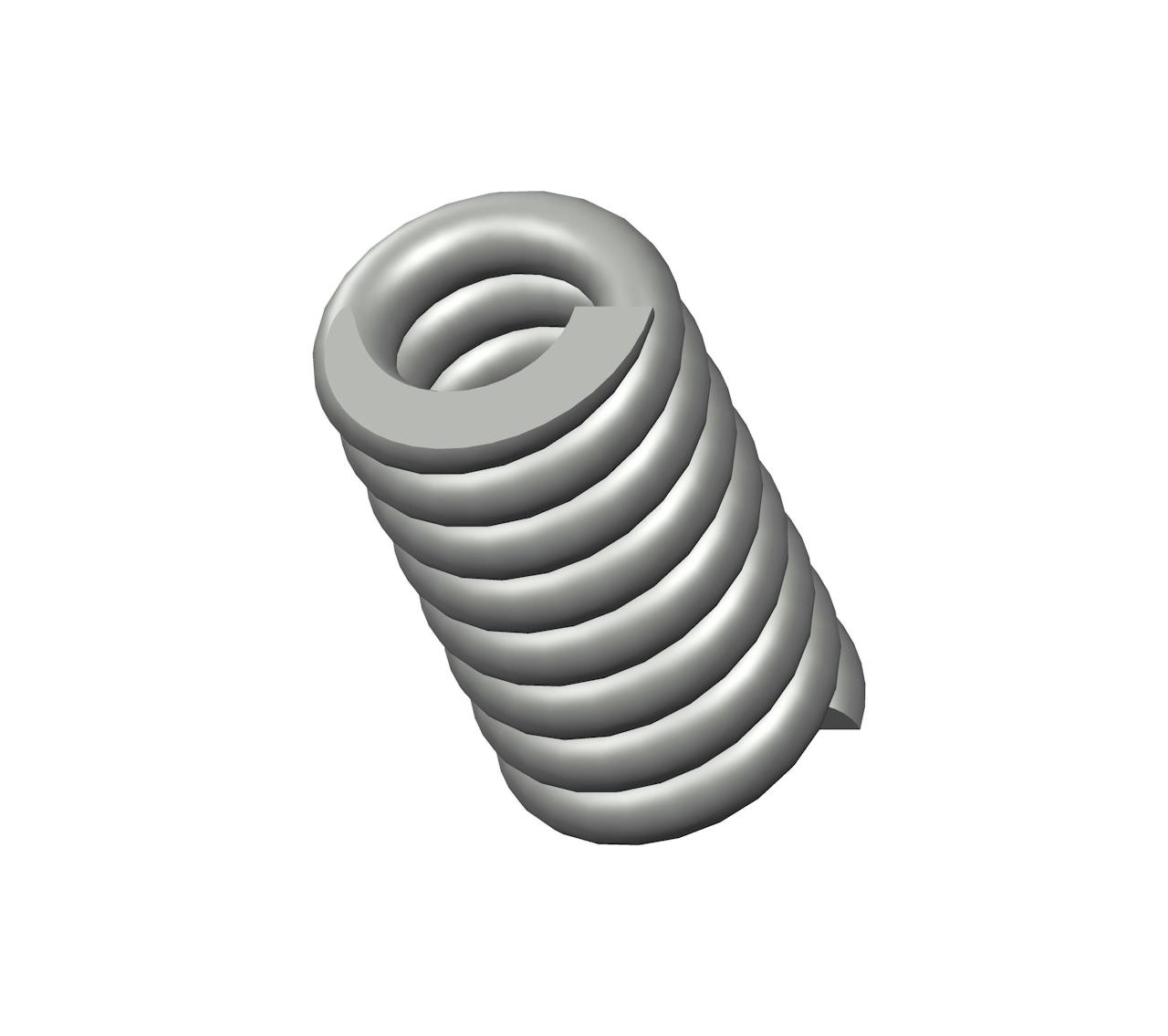

Compression spring manufactured from spring steel with 8 coils and closed & ground ends. This spring features an O.D. of 0.484", and an I.D. of 0.266".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name G-75
Ends Closed & Ground
Finish None
Free Length 0.88 in
Inside Diameter 0.266 in
Material Spring Steel
Outside Diameter 0.484 in
Part Type Standard
Rate 641 lbs/in
SKU G-75CS
Solid Length 0.87 in
Suggested Max Deflection 0.003 in
Suggested Max Load 1.9 lbf
Total Coils 8
Wire Diameter 0.109 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name G-75
Ends Closed & Ground
Finish None
Free Length 22.35 mm
Inside Diameter 6.76 mm
Material Spring Steel
Outside Diameter 12.29 mm
Part Type Standard
Rate 112.24 N/mm
SKU G-75CS
Solid Length 22.1 mm
Suggested Max Deflection 0.08 mm
Suggested Max Load 8.45 N
Total Coils 8
Wire Diameter 2.77 mm
The G-75CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.109" diameter spring steel, the G-75 spring design exhibits reliable strength across its 8 active coils, withstanding repeated compression cycles with a maximum load of 1.9 lbf without succumbing to fatigue.

We manufacture the G-75 design to provide a compression spring that is 0.88" long at rest and provides a consistent rate of 641 lbs/in along its recommended maximum of 0.003" deflection. For best results, your application should fully accommodate the inner (0.266") and outer (0.484") diameters of this spring and be designed for its closed & ground end configuration.
