Century Spring

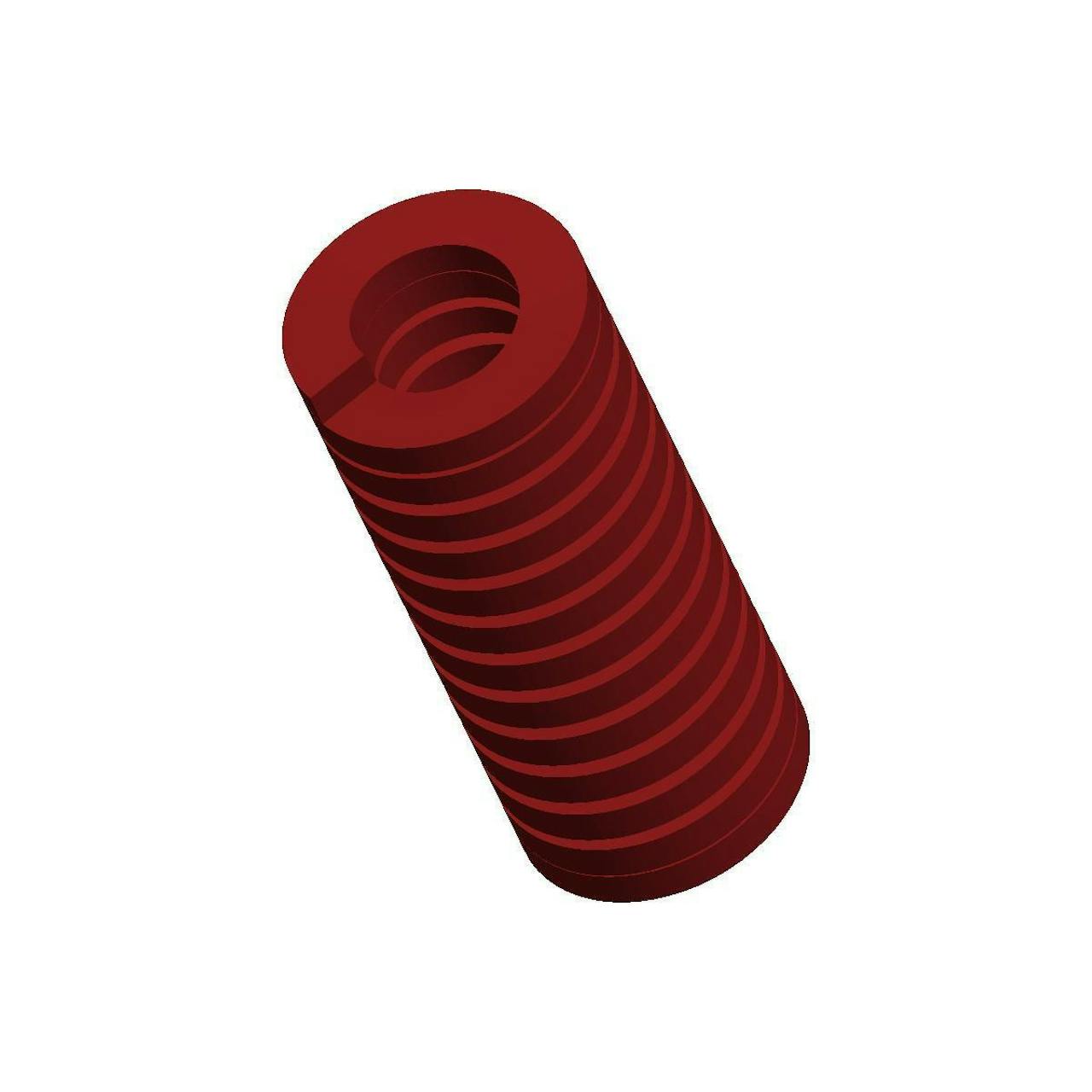

D-1277CS - 5.5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

5.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 554 lb
Brand Century Spring
Deflection For Average Life 1.1 in
Deflection For Long Life 1.38 in
Display Name D-1277
Duty Load Medium
Finish None
Finish Color Red
Free Length 5.5 in
Hole Size 2 in
Long Life Deflection Force 693 lb
Material Chrome Alloy
Maximum Deflection 2.04 in
Maximum Deflection Force 1026 lb
Measurement Units Standard
Rate 504 lbs/in
Rod Size 1 in
SKU D-1277CS
Wire Diameter 0.438 in x 0.255 in
Specs (in metric)
Label Value
Average Life Deflection Force 251.25 kg
Brand Century Spring
Deflection For Average Life 27.94 mm
Deflection For Long Life 35.05 mm
Display Name D-1277
Duty Load Medium
Finish None
Finish Color Red
Free Length 139.7 mm
Hole Size 50.8 mm
Long Life Deflection Force 314.29 kg
Material Chrome Alloy
Maximum Deflection 51.82 mm
Maximum Deflection Force 465.31 kg
Measurement Units Standard
Rate 88.25 N/mm
Rod Size 25.4 mm
SKU D-1277CS
Wire Diameter 11.13 mm x 6.48 mm
