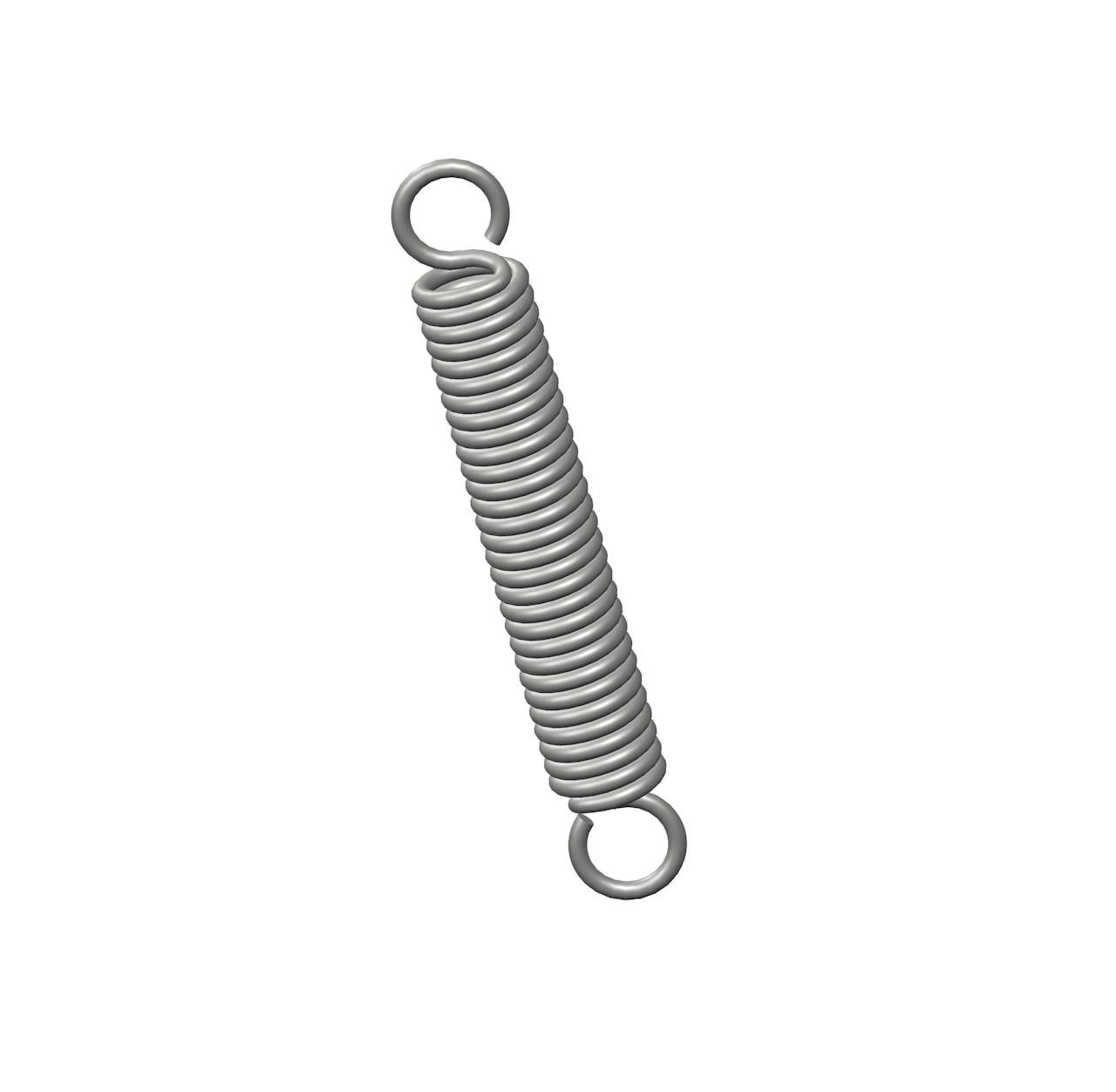

449CS - 1.44 Inch Spring Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Spring Steel. This spring features an O.D. of 0.219 Inch and an initial tension of 2 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 449 |
| Ends | Full Loop |
| Finish | Zinc |
| Initial Tension | 2 lb |
| Length | 1.44 in |
| Material | Spring Steel |
| Outside Diameter | 0.219 in |
| Part Type | Standard |
| Rate | 10 lbs/in |
| SKU | 449CS |
| Sugg Max Deflection | 0.54 in |
| Sugg Max Load | 7.4 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.035 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 449 |
| Ends | Full Loop |
| Finish | Zinc |
| Initial Tension | 0.91 kg |
| Length | 36.58 mm |
| Material | Spring Steel |
| Outside Diameter | 5.56 mm |
| Part Type | Standard |
| Rate | 1.75 N/mm |
| SKU | 449CS |
| Sugg Max Deflection | 13.72 mm |
| Sugg Max Load | 32.92 N |
| Wind Direction | Left |
| Wire Diameter | 0.89 mm |
