Century Spring

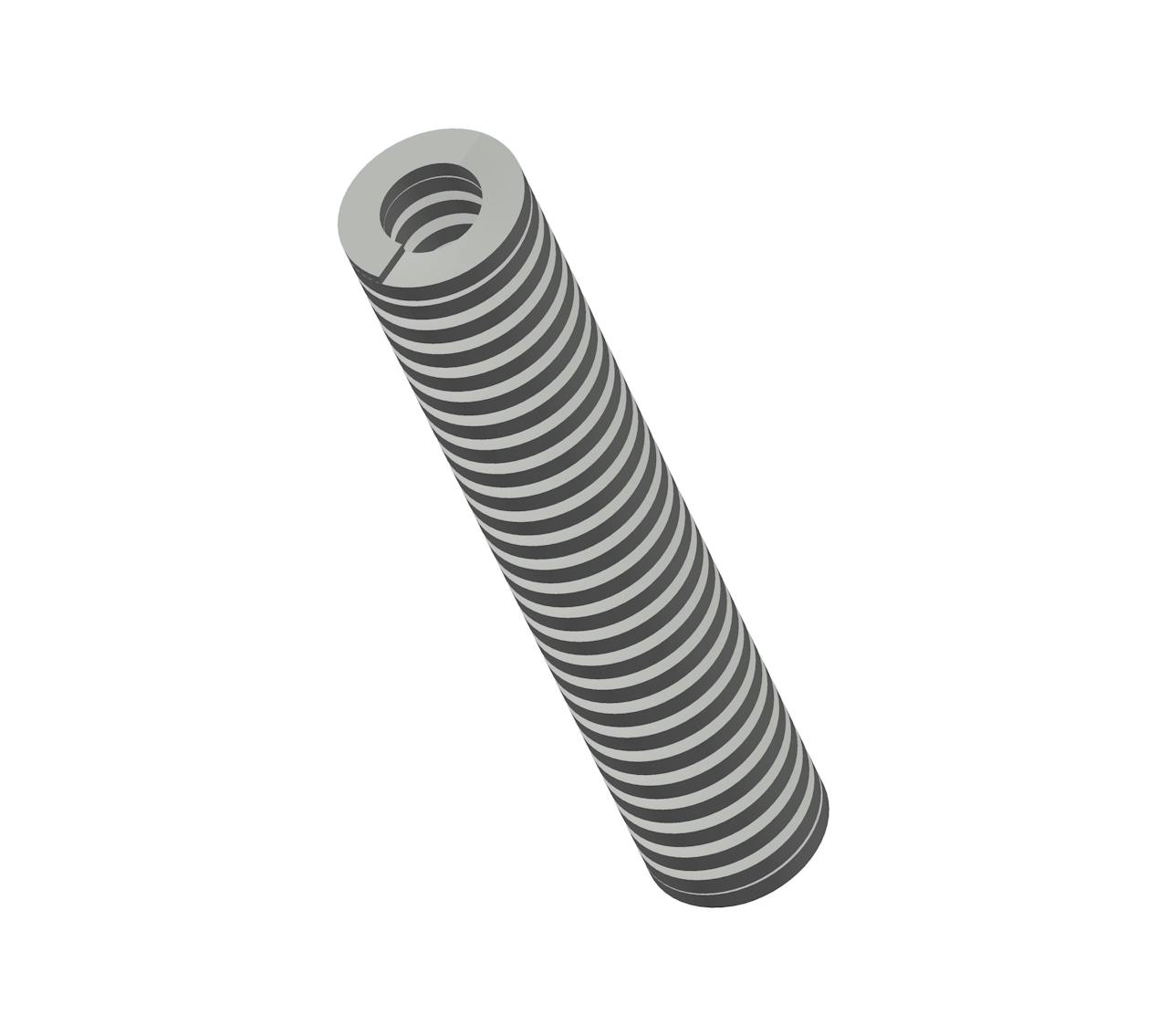

D-120CS - 10 Inch Oil Tempered Die Spring

Inventory Status
Estimated Lead Time

10 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 820 lb
Brand Century Spring
Deflection For Average Life 2.5 in
Display Name D-120
Duty Load Medium
Finish None
Free Length 10 in
Hole Size 2 in
Material Oil Tempered
Maximum Deflection 4 in
Maximum Deflection Force 1312 lb
Measurement Units Standard
Rate 328 lbs/in
Rod Size 1 in
SKU D-120CS
Wire Diameter 0.438 in x 0.219 in
Specs (in metric)
Label Value
Average Life Deflection Force 371.88 kg
Brand Century Spring
Deflection For Average Life 63.5 mm
Display Name D-120
Duty Load Medium
Finish None
Free Length 254 mm
Hole Size 50.8 mm
Material Oil Tempered
Maximum Deflection 101.6 mm
Maximum Deflection Force 595.01 kg
Measurement Units Standard
Rate 57.43 N/mm
Rod Size 25.4 mm
SKU D-120CS
Wire Diameter 11.13 mm x 5.56 mm
