B8-36CS - 1.53" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

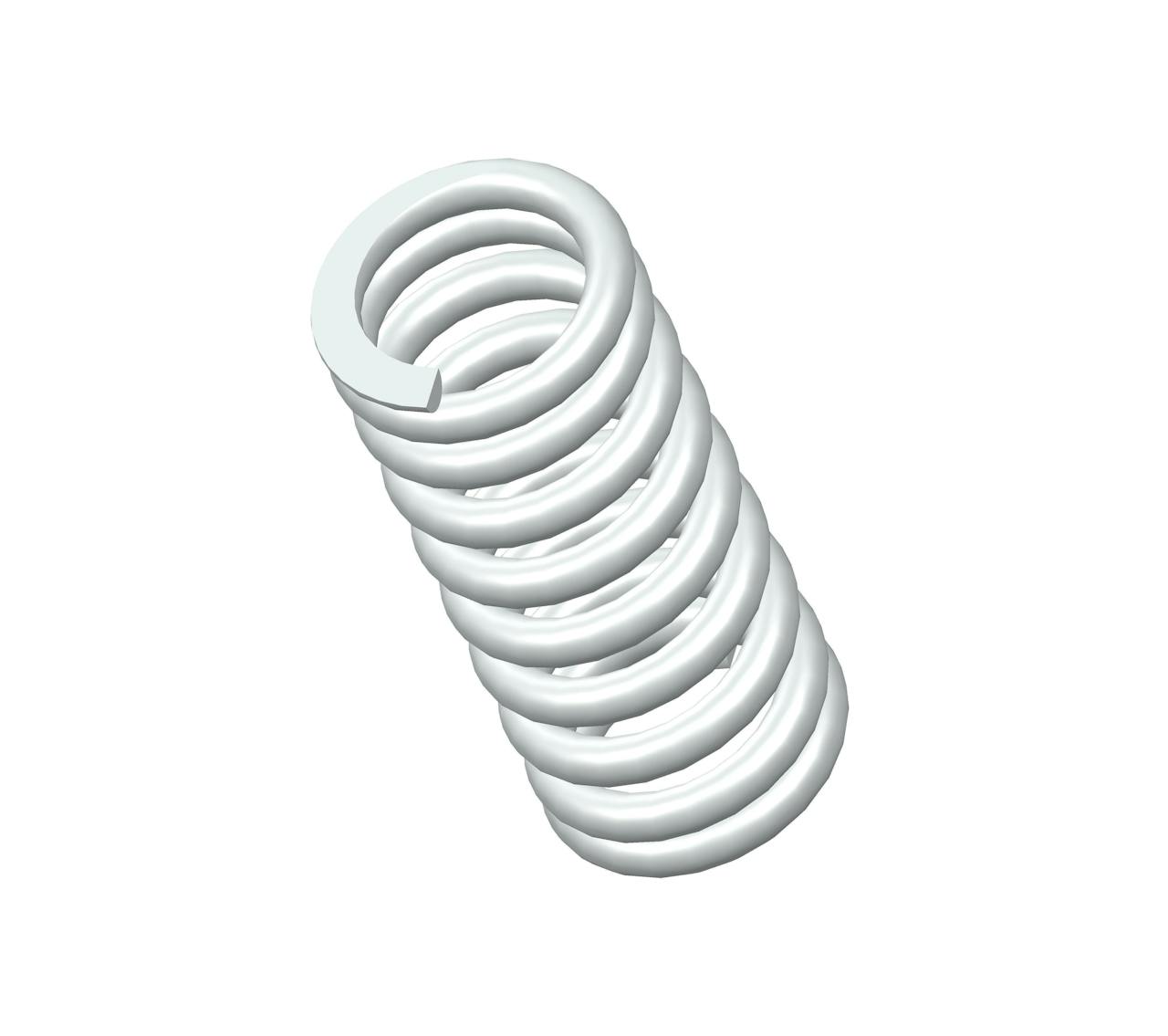

Compression spring manufactured from 302/304 stainless steel with 9.5 coils and closed & ground ends. This spring features an O.D. of 0.656", and an I.D. of 0.456".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B8-36 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.53 in |
| Inside Diameter | 0.456 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.656 in |
| Part Type | Standard |
| Rate | 99 lbs/in |
| SKU | B8-36CS |
| Solid Length | 0.95 in |
| Suggested Max Deflection | 0.45 in |
| Suggested Max Load | 45 lbf |
| Total Coils | 9.5 |
| Wire Diameter | 0.1 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B8-36 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 38.86 mm |
| Inside Diameter | 11.58 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 16.66 mm |
| Part Type | Standard |
| Rate | 17.33 N/mm |
| SKU | B8-36CS |
| Solid Length | 24.13 mm |
| Suggested Max Deflection | 11.43 mm |
| Suggested Max Load | 200.16 N |
| Total Coils | 9.5 |
| Wire Diameter | 2.54 mm |
The compression spring B8-36CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the B8-36 compression spring design exhibits exceptional tensile strength and resilience.
The B8-36 design is manufactured with a free length of 1.53", with an outer diameter of 0.656", an inner diameter of 0.456", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 99 lbs/in.
The B8-36CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B8-36 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B8-36 design is manufactured with a free length of 1.53", with an outer diameter of 0.656", an inner diameter of 0.456", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 99 lbs/in.
The B8-36CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B8-36 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
