D-1138CS - 3.5 Inch Chrome Alloy Die Spring

Inventory:
Estimated Lead Time

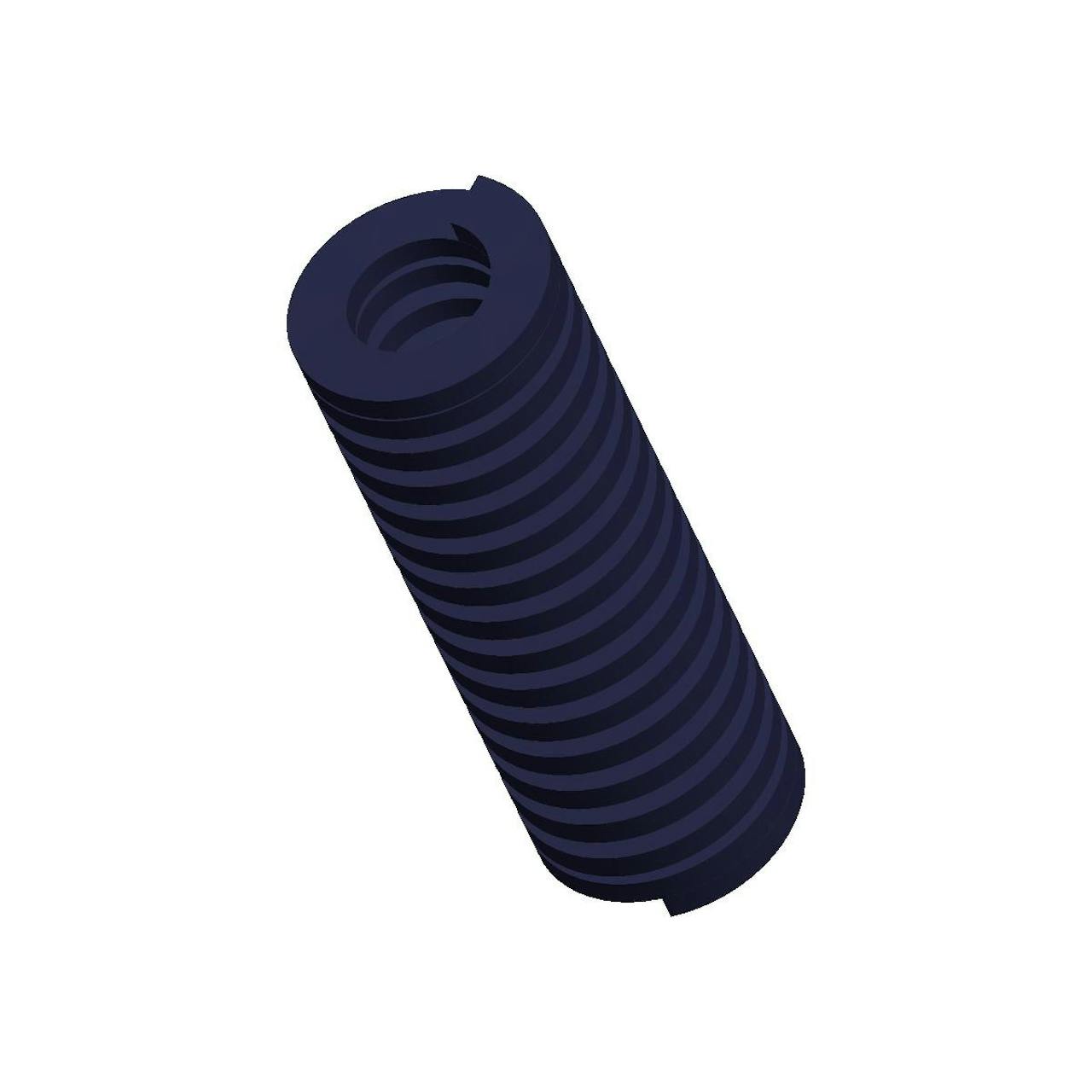

3.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 179 lb
Brand Century Spring
Deflection For Average Life 1.4 in
Deflection For Long Life 0.88 in
Display Name D-1138
Duty Load Light
Finish None
Finish Color Blue
Free Length 3.5 in
Hole Size 1 in
Long Life Deflection Force 112 lb
Material Chrome Alloy
Maximum Deflection 1.75 in
Maximum Deflection Force 224 lb
Measurement Units Standard
Rate 150 lbs/in
Rod Size 0.5 in
SKU D-1138CS
Wire Diameter 0.215 in x 0.1 in
Specs (in metric)
Label Value
Average Life Deflection Force 81.18 kg
Brand Century Spring
Deflection For Average Life 35.56 mm
Deflection For Long Life 22.35 mm
Display Name D-1138
Duty Load Light
Finish None
Finish Color Blue
Free Length 88.9 mm
Hole Size 25.4 mm
Long Life Deflection Force 50.79 kg
Material Chrome Alloy
Maximum Deflection 44.45 mm
Maximum Deflection Force 101.59 kg
Measurement Units Standard
Rate 26.27 N/mm
Rod Size 12.7 mm
SKU D-1138CS
Wire Diameter 5.46 mm x 2.54 mm
