Century Spring

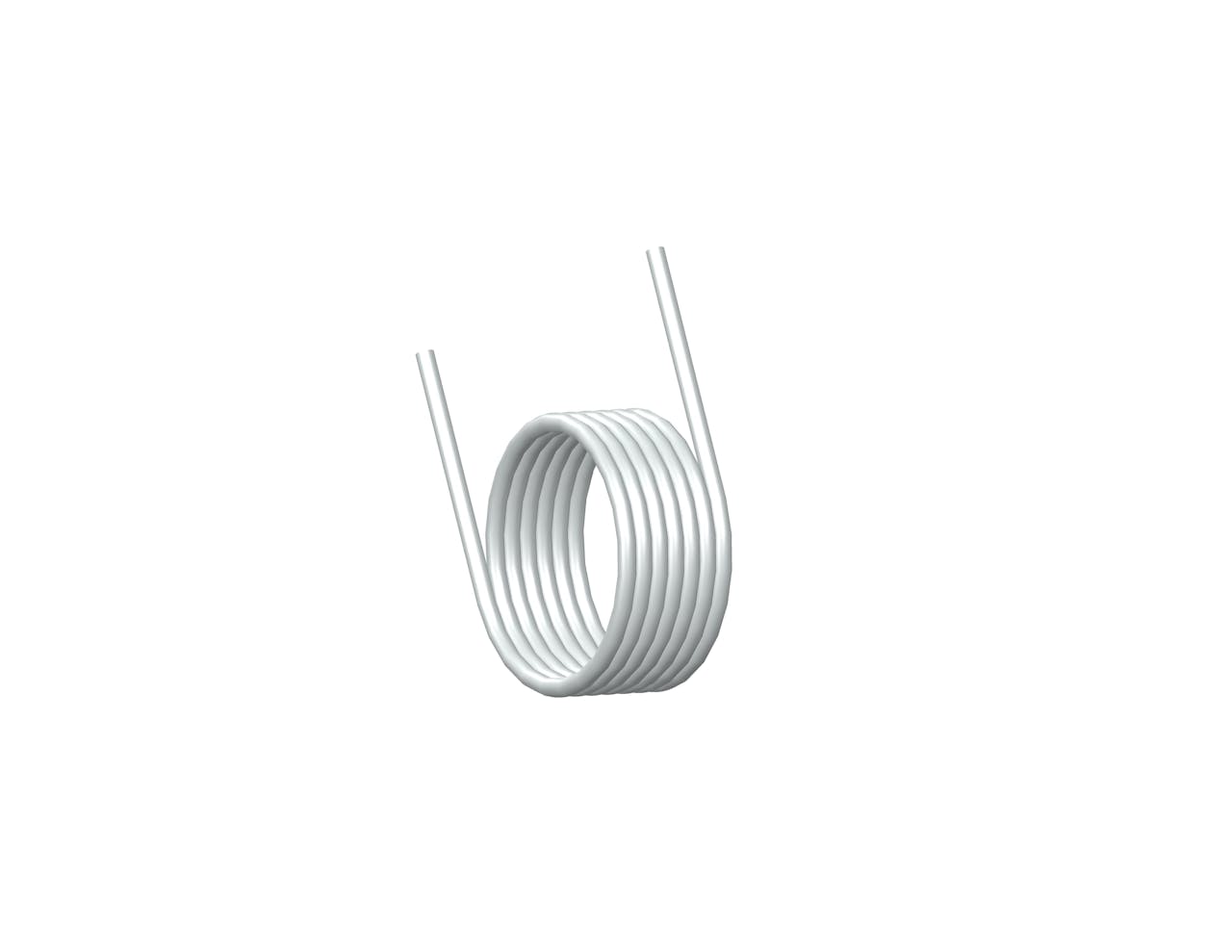

TO-1018CS - 0 Degree, 0.0205 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in 302/304 Stainless Steel with 6.5 total coils and 0.92 Inch legs. This spring features an O.D. of 0.971 Inch, an I.D. of 0.843 Inch, and a spring rate of 0.0205 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 0 deg
Body Length 0.53 in
Brand Century Spring
Display Name TO-1018
Finish None
Inside Diameter 0.843 in
Leg Length 0.92 in
Mandrel Diameter 0.65 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 229
Max Torque (suggested) 4.7 lbs/in
Measurement Units Standard
Outside Diameter 0.971 in
Rate 0.0205 lbf-in/deg
SKU TO-1018CS
Total Coils 6.5
Wind Direction Left
Wire Diameter 0.064 in
Specs (in metric)
Label Value
Angle Between Legs 0 deg
Body Length 13.46 mm
Brand Century Spring
Display Name TO-1018
Finish None
Inside Diameter 21.41 mm
Leg Length 23.37 mm
Mandrel Diameter 16.51 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 229
Max Torque (suggested) 0.82 N-mm
Measurement Units Standard
Outside Diameter 24.66 mm
Rate 2.32 N-mm/deg
SKU TO-1018CS
Total Coils 6.5
Wind Direction Left
Wire Diameter 1.63 mm
