Century Spring

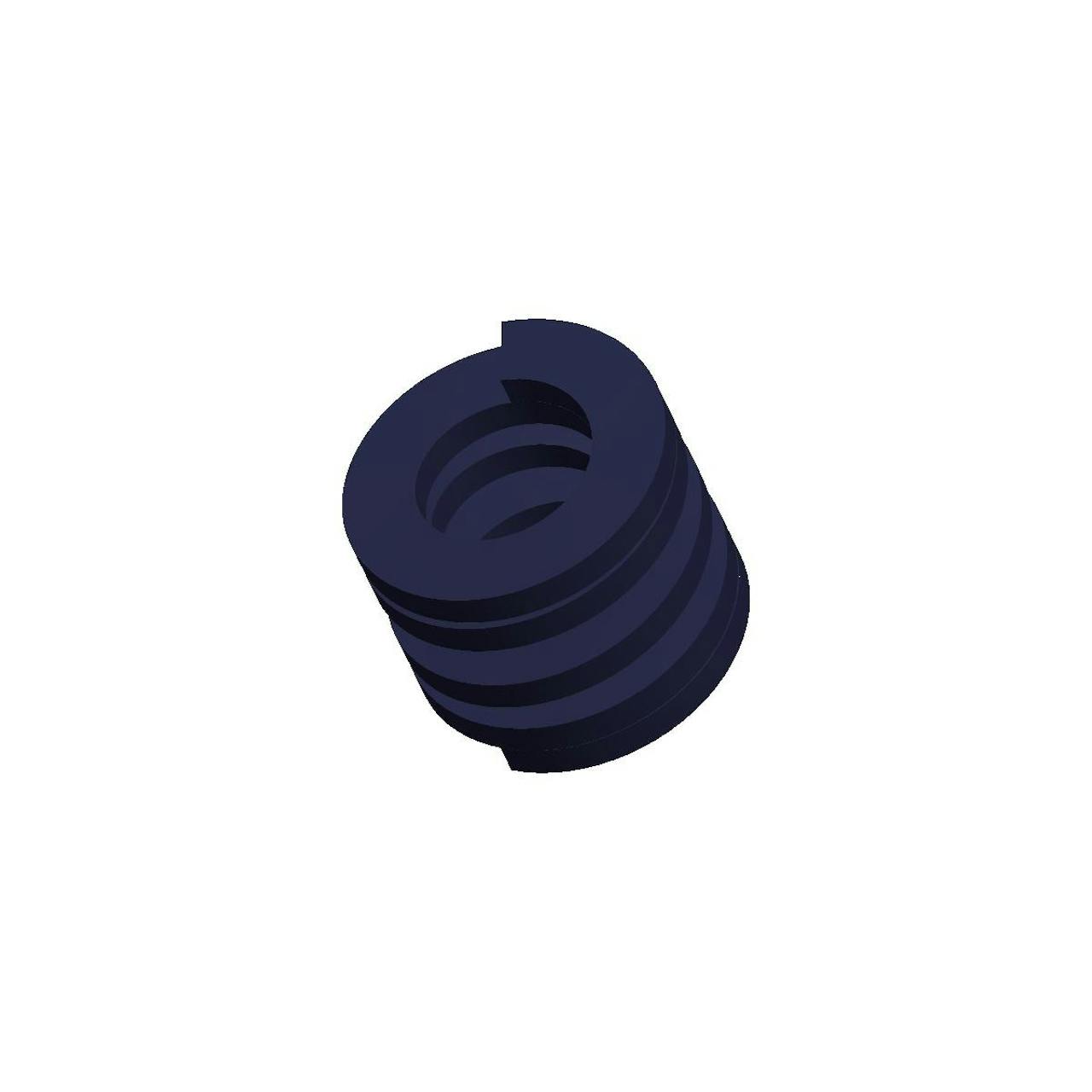

D-1133CS - 1 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

1 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 214 lb
Brand Century Spring
Deflection For Average Life 0.4 in
Deflection For Long Life 0.25 in
Display Name D-1133
Duty Load Light
Finish None
Finish Color Blue
Free Length 1 in
Hole Size 1 in
Long Life Deflection Force 134 lb
Material Chrome Alloy
Maximum Deflection 0.5 in
Maximum Deflection Force 268 lb
Measurement Units Standard
Rate 536 lbs/in
Rod Size 0.5 in
SKU D-1133CS
Wire Diameter 0.215 in x 0.1 in
Specs (in metric)
Label Value
Average Life Deflection Force 97.05 kg
Brand Century Spring
Deflection For Average Life 10.16 mm
Deflection For Long Life 6.35 mm
Display Name D-1133
Duty Load Light
Finish None
Finish Color Blue
Free Length 25.4 mm
Hole Size 25.4 mm
Long Life Deflection Force 60.77 kg
Material Chrome Alloy
Maximum Deflection 12.7 mm
Maximum Deflection Force 121.54 kg
Measurement Units Standard
Rate 93.85 N/mm
Rod Size 12.7 mm
SKU D-1133CS
Wire Diameter 5.46 mm x 2.54 mm
