69193SCS - 2.25" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

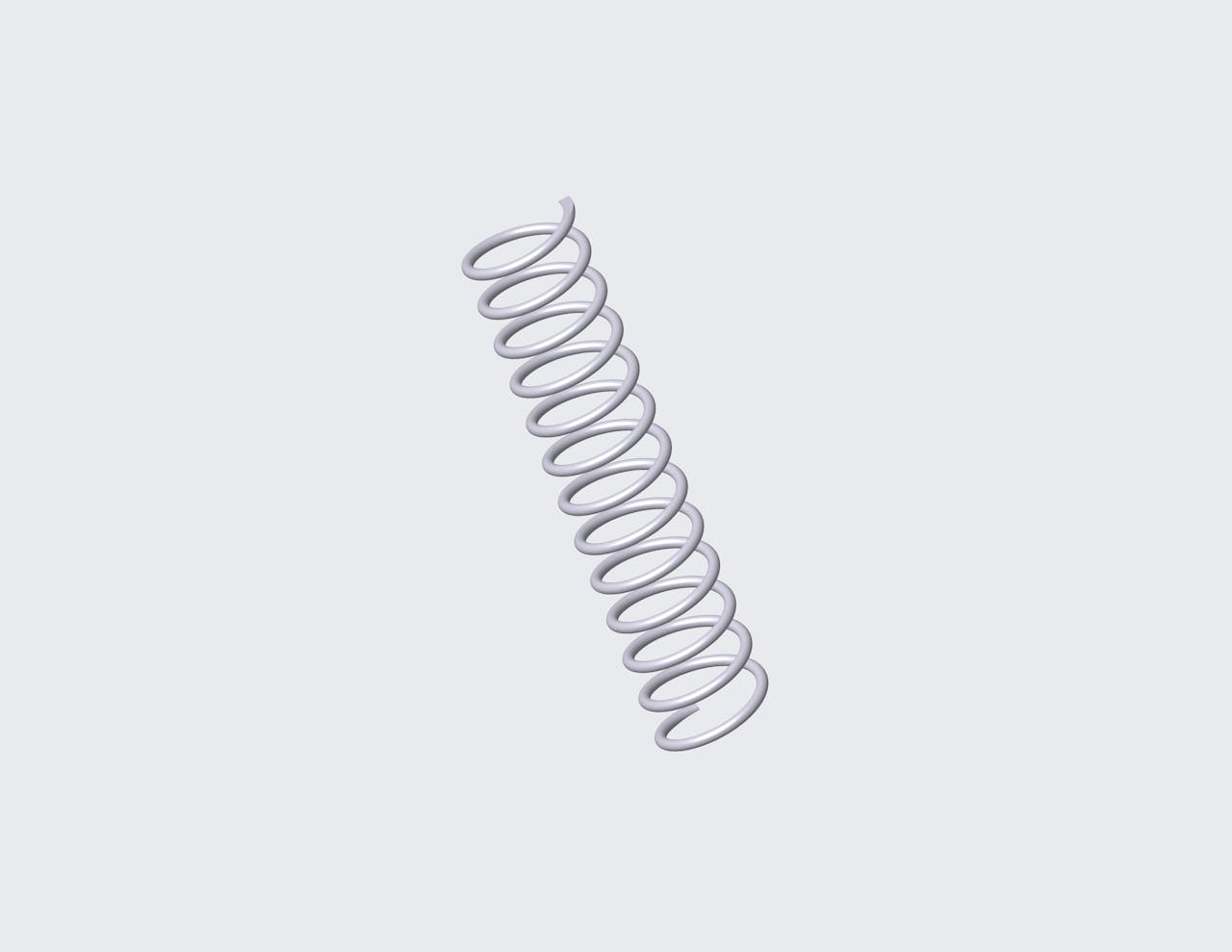

Compression spring manufactured from 316 stainless steel with 12.5 coils and closed & ground ends. This spring features an O.D. of 0.484", and an I.D. of 0.394".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 69193S
Ends Closed & Ground
Finish Passivated
Free Length 2.25 in
Inside Diameter 0.394 in
Material 316 Stainless Steel
Outside Diameter 0.484 in
Part Type Standard
Rate 5.77 lbs/in
SKU 69193SCS
Solid Length 0.563 in
Suggested Max Deflection 0.991 in
Suggested Max Load 5.718 lbf
Total Coils 12.5
Wire Diameter 0.045 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 69193S
Ends Closed & Ground
Finish Passivated
Free Length 57.15 mm
Inside Diameter 10.01 mm
Material 316 Stainless Steel
Outside Diameter 12.29 mm
Part Type Standard
Rate 1.01 N/mm
SKU 69193SCS
Solid Length 14.3 mm
Suggested Max Deflection 25.17 mm
Suggested Max Load 25.43 N
Total Coils 12.5
Wire Diameter 1.14 mm
The compression spring 69193SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 69193S compression spring design exhibits exceptional tensile strength and resilience.

The 69193S design is manufactured with a free length of 2.25", with an outer diameter of 0.484", an inner diameter of 0.394", and a total of 12.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.77 lbs/in.

The 69193SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 69193S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
