CSW-241650CS - 0.323 Inch ID 0.622 Inch OD Slotted Disc Spring

Inventory:
Estimated Lead Time

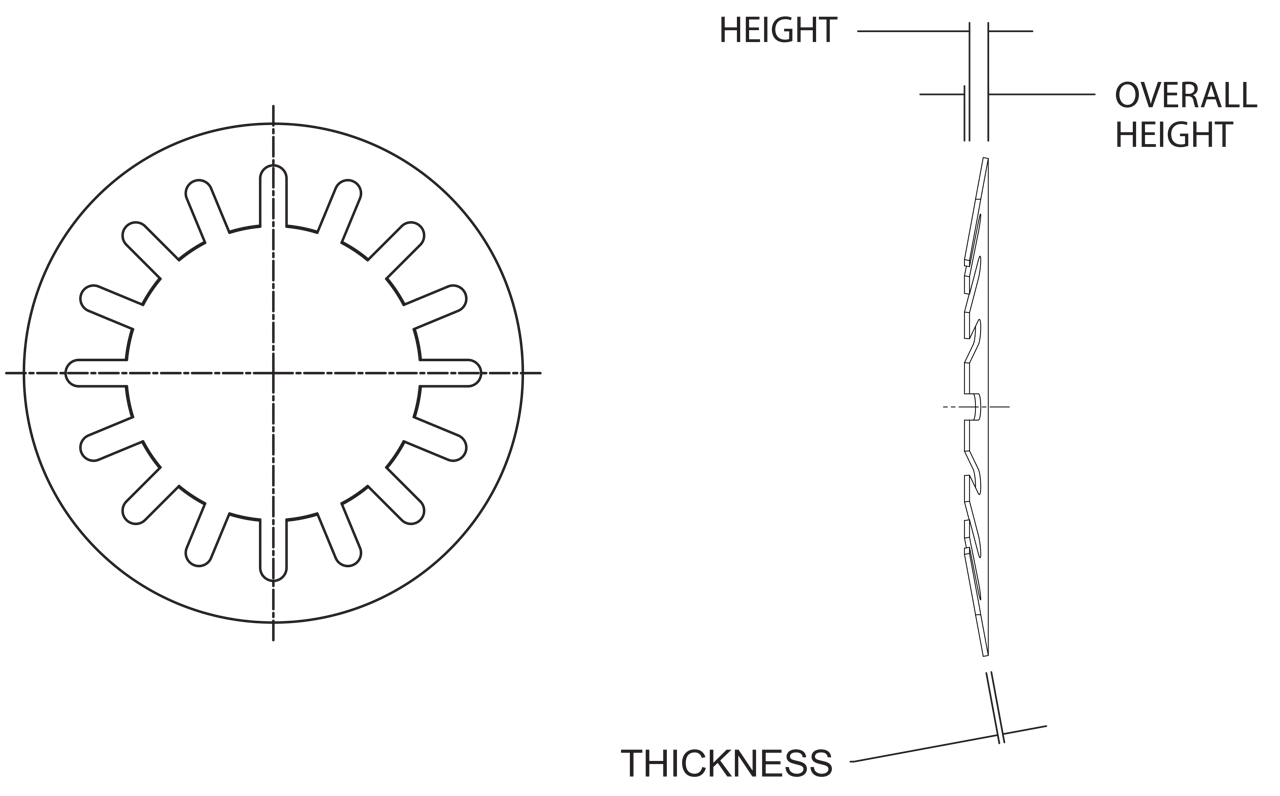

Slotted disc spring manufactured from Spring Steel with an inside diameter of 0.323 Inch and an outside diameter of 0.622 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Ball Bearing Inside 0.197 in
Ball Bearing Outside 0.63 in
Ball Bearing Size 625 (EL5), 634 (R4)
Brand Century Spring
Calculated Load at Approximate Deflection 4 lb
Deflection 0.016 in
Display Name CSW-241650
Finish None
H 0.02 in
Inside Diameter 0.323 in
Inside Diameter 2 0.157 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.622 in
Outside Height 0.03 in
SKU CSW-241650CS
T 0.01 in
h/t 0.029 in
Specs (in metric)
Label Value
Ball Bearing Inside 5 mm
Ball Bearing Outside 16 mm
Ball Bearing Size 625 (EL5), 634 (R4)
Brand Century Spring
Calculated Load at Approximate Deflection 1.81 kg
Deflection 0.41 mm
Display Name CSW-241650
Finish None
H 0.51 mm
Inside Diameter 8.2 mm
Inside Diameter 2 3.99 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 15.8 mm
Outside Height 0.76 mm
SKU CSW-241650CS
T 0.25 mm
h/t 0.74 mm
