S-3065CS - 2.25" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

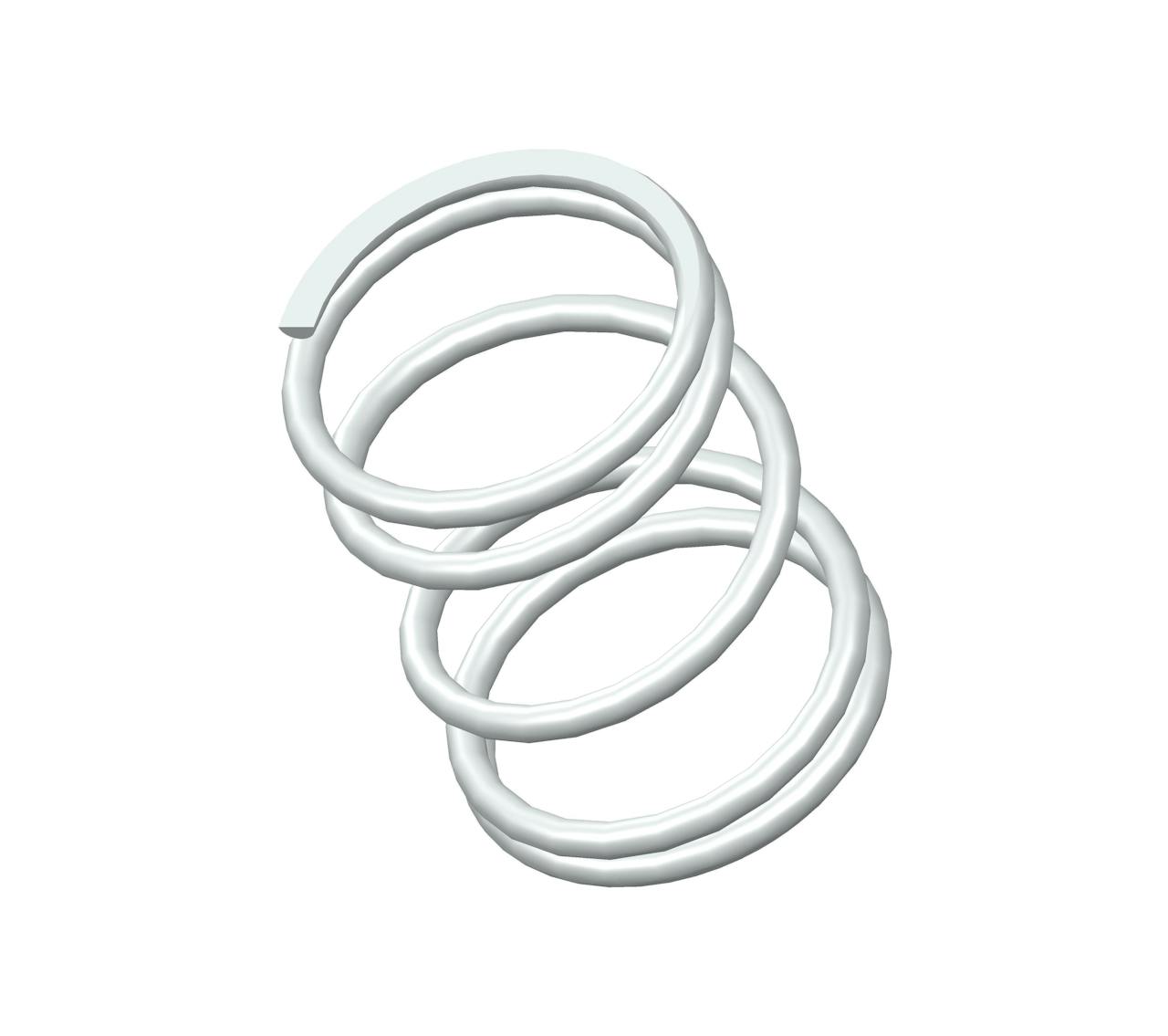

Compression spring manufactured from 302/304 stainless steel with 5 coils and closed & ground ends. This spring features an O.D. of 1.687", and an I.D. of 1.407".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3065 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.25 in |
| Inside Diameter | 1.407 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.687 in |
| Part Type | Standard |
| Rate | 43 lbs/in |
| SKU | S-3065CS |
| Solid Length | 0.7 in |
| Suggested Max Deflection | 1.1 in |
| Suggested Max Load | 46 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.14 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3065 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 57.15 mm |
| Inside Diameter | 35.74 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 42.85 mm |
| Part Type | Standard |
| Rate | 7.53 N/mm |
| SKU | S-3065CS |
| Solid Length | 17.78 mm |
| Suggested Max Deflection | 27.94 mm |
| Suggested Max Load | 204.61 N |
| Total Coils | 5 |
| Wire Diameter | 3.56 mm |
The S-3065 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-3065CS compression spring is designed with a free length of 1.25" total of 3.5 coils, and a rate of 5.9 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-3065 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-3065CS compression spring is designed with a free length of 1.25" total of 3.5 coils, and a rate of 5.9 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-3065 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
