Century Spring

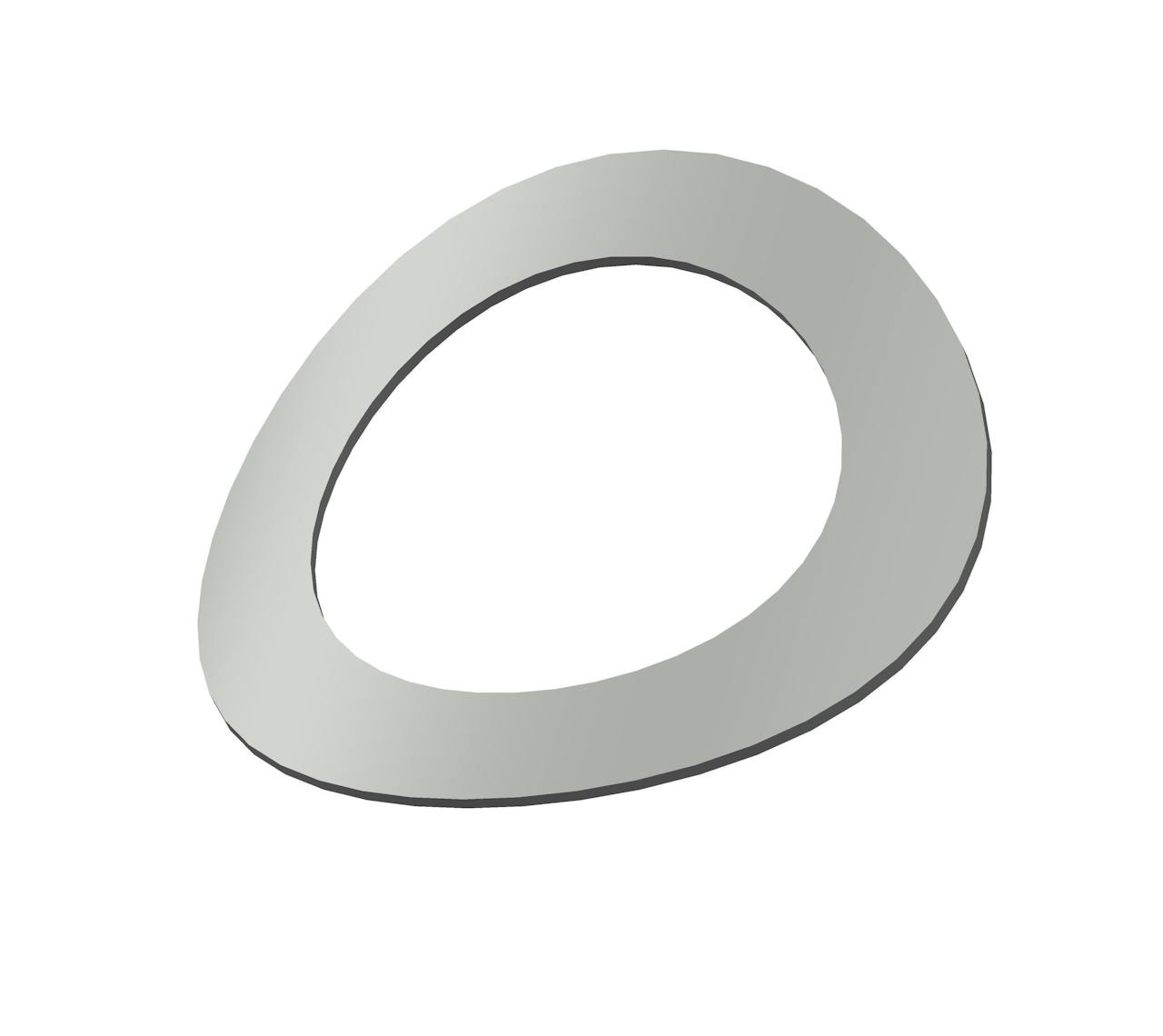

CRV-25344CS - 0.379 Inch ID 0.563 Inch OD Curved Disc Spring

Inventory Status
Estimated Lead Time

Curved disc spring manufactured from Spring Steel with an inside diameter of 0.379 Inch and an outside diameter of 0.563 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size 5/16
Brand Century Spring
Calculated Load at Approximate Deflection 4.7 lb
Deflection 0.039 in
Display Name CRV-25344
Finish None
Inside Diameter 0.379 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.563 in
Outside Height 0.08 in
SKU CRV-25344CS
T 0.01 in
Specs (in metric)
Label Value
Bolt Size 5/16
Brand Century Spring
Calculated Load at Approximate Deflection 2.13 kg
Deflection 0.99 mm
Display Name CRV-25344
Finish None
Inside Diameter 9.63 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 14.3 mm
Outside Height 2.03 mm
SKU CRV-25344CS
T 0.25 mm
