Century Spring

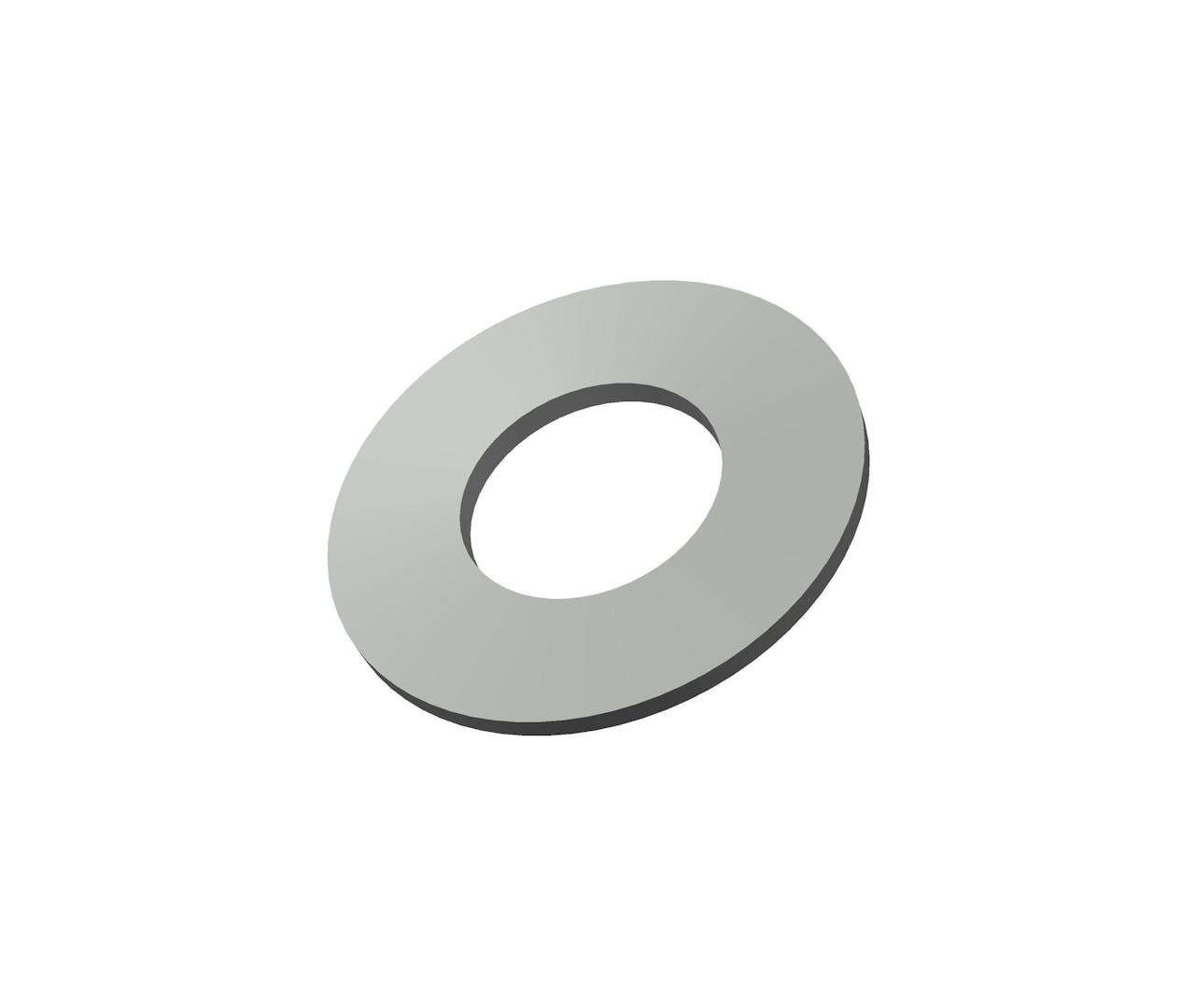

CDS-341616CS - 0.164 Inch ID 0.343 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory Status
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.164 Inch and an outside diameter of 0.343 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size #8
Brand Century Spring
Display Name CDS-341616
Finish Phosphate
H 0.01 in
Inside Diameter 0.164 in
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.01 in
Maximum Force at 100% Height 65 lb
Measurement Units Standard
Outside Diameter 0.343 in
Outside Height 0.026 in
SKU CDS-341616CS
T 0.016 in
Specs (in metric)
Label Value
Bolt Size #8
Brand Century Spring
Display Name CDS-341616
Finish Phosphate
H 0.25 mm
Inside Diameter 4.17 mm
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.25 mm
Maximum Force at 100% Height 29.48 kg
Measurement Units Standard
Outside Diameter 8.71 mm
Outside Height 0.66 mm
SKU CDS-341616CS
T 0.41 mm
