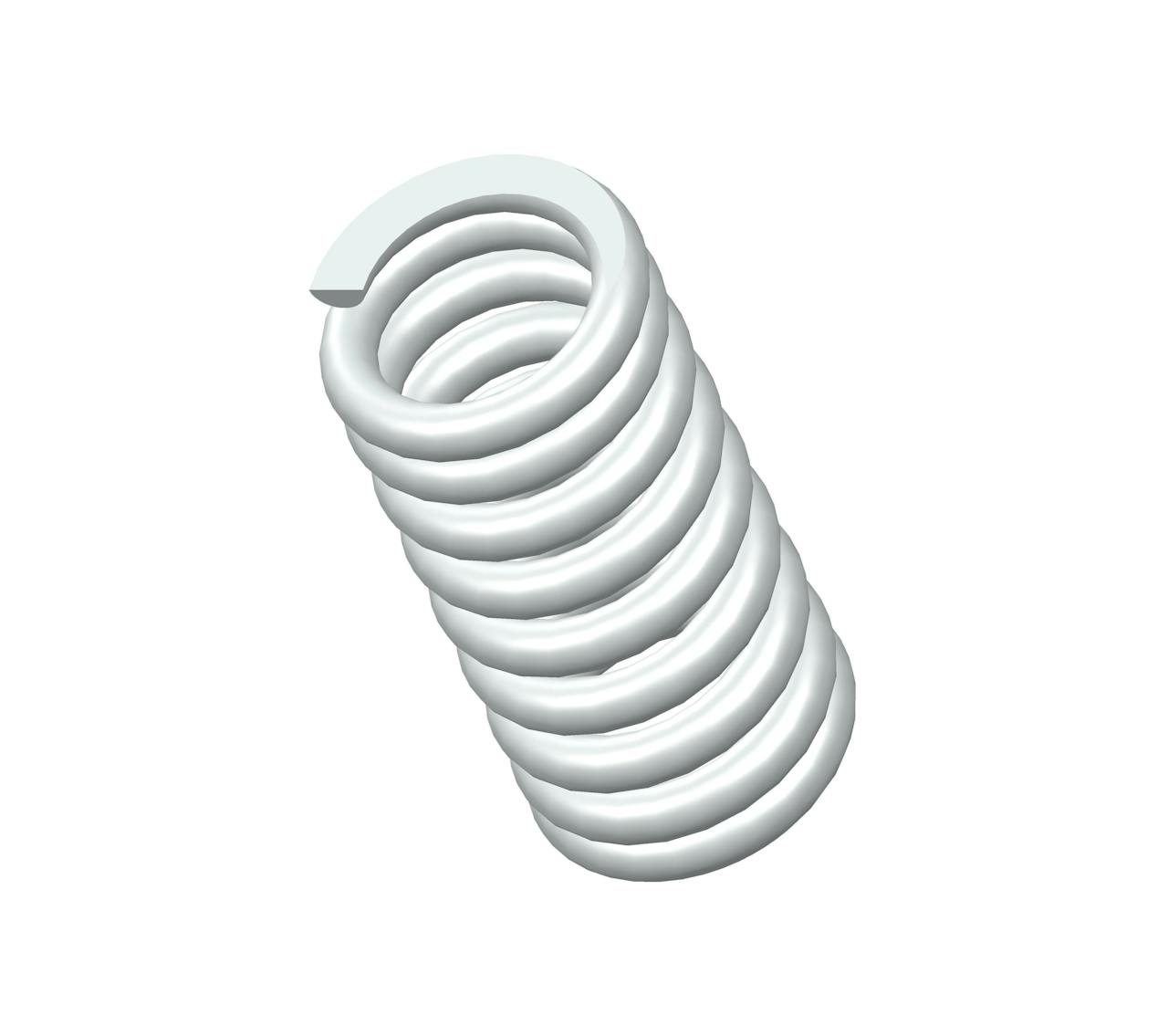

AA-86CS - 1.13" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 9 coils and closed & ground ends. This spring features an O.D. of 0.546", and an I.D. of 0.366".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name AA-86
Ends Closed & Ground
Finish None
Free Length 1.13 in
Inside Diameter 0.366 in
Material 302/304 Stainless Steel
Outside Diameter 0.546 in
Part Type Standard
Rate 126 lbs/in
SKU AA-86CS
Solid Length 0.81 in
Suggested Max Deflection 0.31 in
Suggested Max Load 39 lbf
Total Coils 9
Wire Diameter 0.09 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name AA-86
Ends Closed & Ground
Finish None
Free Length 28.7 mm
Inside Diameter 9.3 mm
Material 302/304 Stainless Steel
Outside Diameter 13.87 mm
Part Type Standard
Rate 22.06 N/mm
SKU AA-86CS
Solid Length 20.57 mm
Suggested Max Deflection 7.87 mm
Suggested Max Load 173.47 N
Total Coils 9
Wire Diameter 2.29 mm
The compression spring AA-86CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the AA-86 compression spring design exhibits exceptional tensile strength and resilience.

The AA-86 design is manufactured with a free length of 1.13", with an outer diameter of 0.546", an inner diameter of 0.366", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 126 lbs/in.

The AA-86CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring AA-86 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
