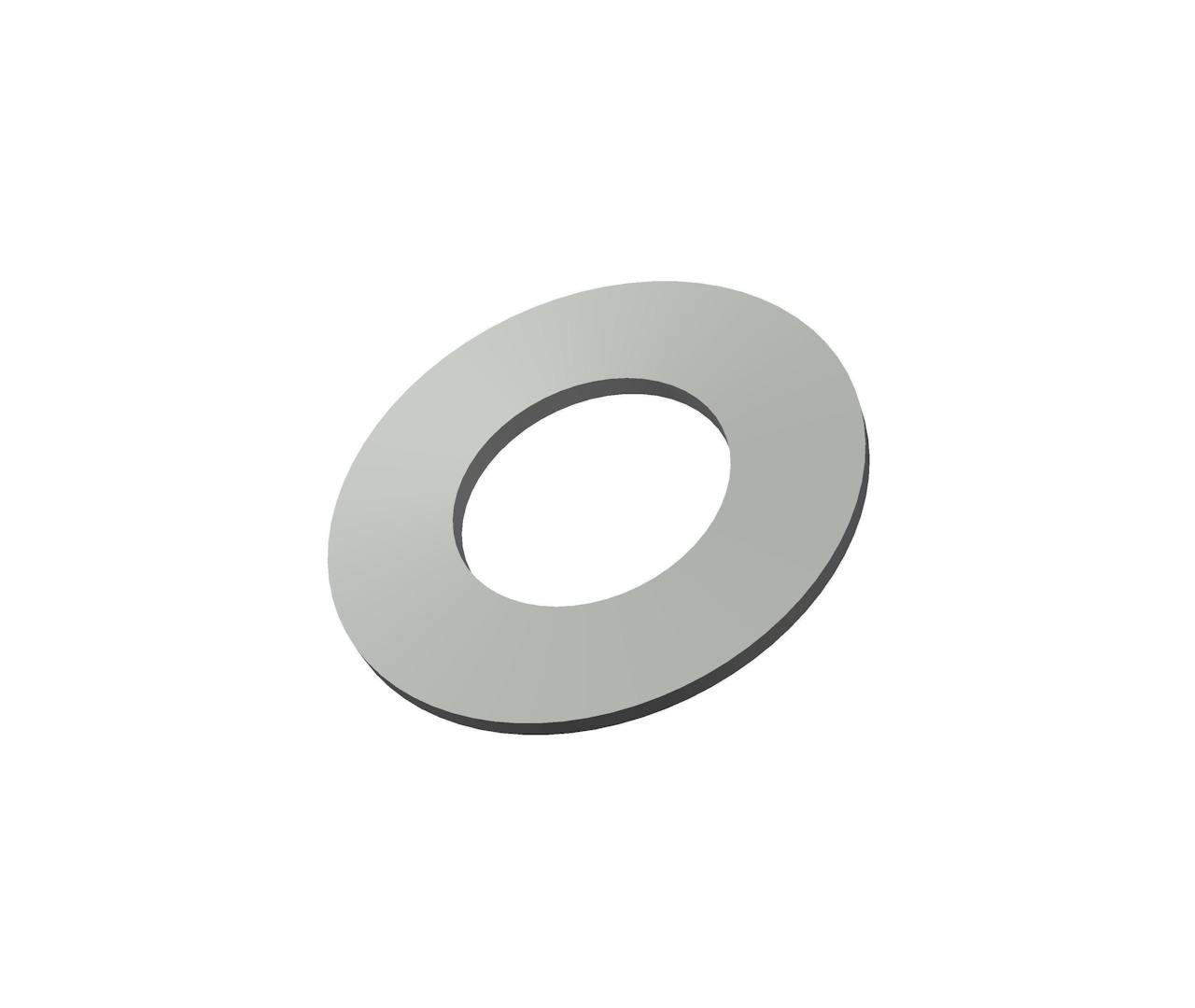

CDM-502520CS - 1 Inch ID 1.97 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory:
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 1 Inch and an outside diameter of 1.97 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 464 lb
Deflection at 100% Height 0.0557 in
Deflection at 50% Height 0.0279 in
Deflection at 75% Height 0.0418 in
Display Name CDM-502520
Finish Phosphate
Inside Diameter 1 in
Load at 100% Height 1396 lb
Load at 50% Height 829 lb
Load at 75% Height 1129 lb
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 1.97 in
Outside Height 0.1339 in
SKU CDM-502520CS
T 0.0787 in
h/t 0.708 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 210.43 kg
Deflection at 100% Height 1.41 mm
Deflection at 50% Height 0.71 mm
Deflection at 75% Height 1.06 mm
Display Name CDM-502520
Finish Phosphate
Inside Diameter 25.4 mm
Load at 100% Height 633.11 kg
Load at 50% Height 375.96 kg
Load at 75% Height 512.02 kg
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 50.04 mm
Outside Height 3.4 mm
SKU CDM-502520CS
T 2 mm
h/t 17.98 mm
