TO-1052CS - 135 Degree, 0.005 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory:
Estimated Lead Time

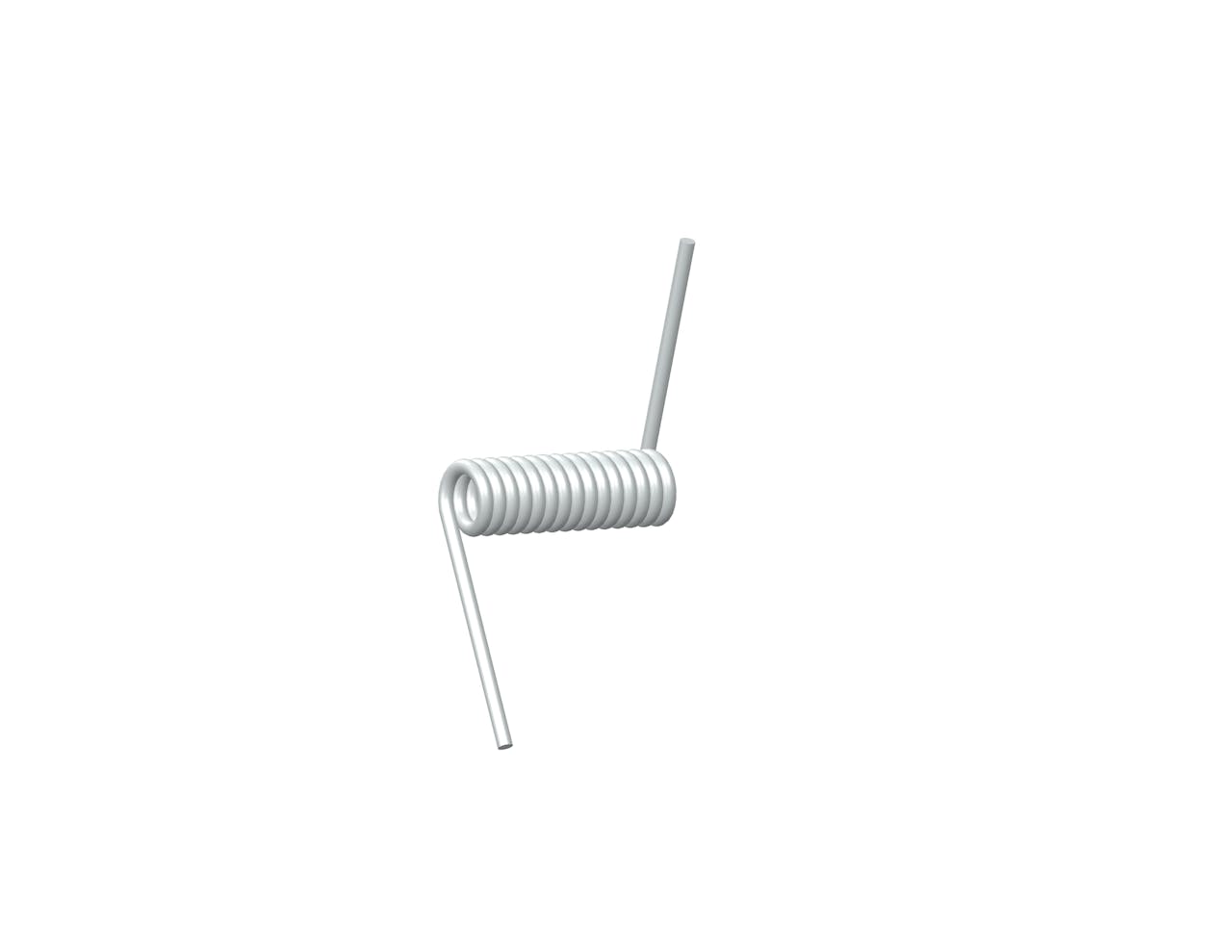

Torsion spring in 302/304 Stainless Steel with 15.125 total coils and 0.58 Inch legs. This spring features an O.D. of 0.179 Inch, an I.D. of 0.109 Inch, and a spring rate of 0.005 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 135 deg
Body Length 0.62 in
Brand Century Spring
Display Name TO-1052
Finish None
Inside Diameter 0.109 in
Leg Length 0.58 in
Mandrel Diameter 0.09 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 143
Max Torque (suggested) 0.71 lbs-in
Measurement Units Standard
Outside Diameter 0.179 in
Rate 0.005 lbf-in/deg
SKU TO-1052CS
Total Coils 15.125
Wind Direction Right
Wire Diameter 0.035 in
Specs (in metric)
Label Value
Angle Between Legs 135 deg
Body Length 15.75 mm
Brand Century Spring
Display Name TO-1052
Finish None
Inside Diameter 2.77 mm
Leg Length 14.73 mm
Mandrel Diameter 2.29 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 143
Max Torque (suggested) 0.12 N-mm
Measurement Units Standard
Outside Diameter 4.55 mm
Rate 0.56 N-mm/deg
SKU TO-1052CS
Total Coils 15.13
Wind Direction Right
Wire Diameter 0.89 mm
