Century Spring

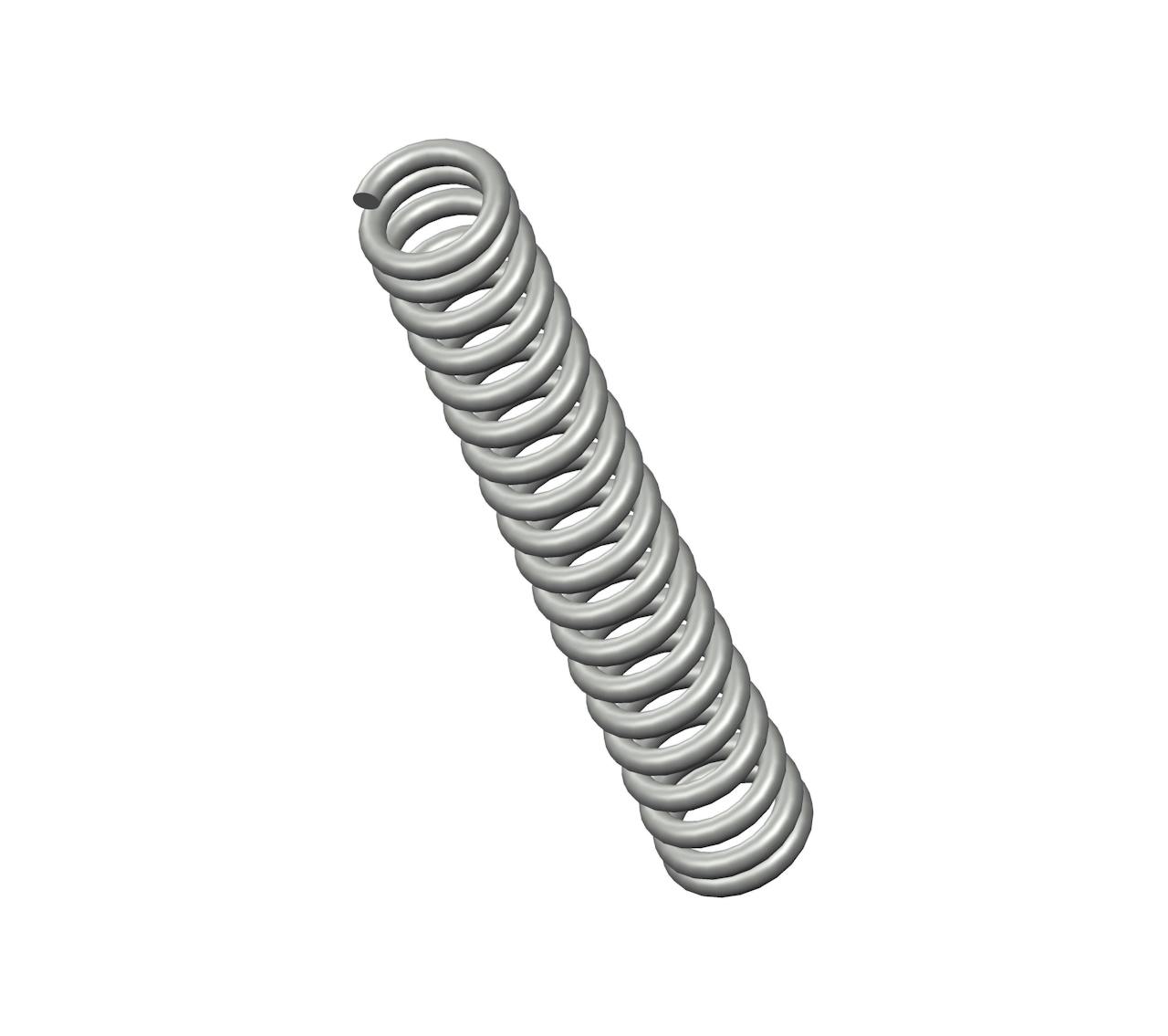

CC-3CS - 1.5" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 19 coils and closed ends. This spring features an O.D. of 0.234", and an I.D. of 0.154".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name CC-3
Ends Closed
Finish None
Free Length 1.5 in
Inside Diameter 0.154 in
Material Spring Steel
Outside Diameter 0.234 in
Part Type Standard
Rate 30 lbs/in
SKU CC-3CS
Solid Length 0.8 in
Suggested Max Deflection 0.34 in
Suggested Max Load 10 lbf
Total Coils 19
Wire Diameter 0.04 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name CC-3
Ends Closed
Finish None
Free Length 38.1 mm
Inside Diameter 3.91 mm
Material Spring Steel
Outside Diameter 5.94 mm
Part Type Standard
Rate 5.25 N/mm
SKU CC-3CS
Solid Length 20.32 mm
Suggested Max Deflection 8.64 mm
Suggested Max Load 44.48 N
Total Coils 19
Wire Diameter 1.02 mm
The CC-3CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.04" diameter spring steel, the CC-3 spring design exhibits reliable strength across its 19 active coils, withstanding repeated compression cycles with a maximum load of 10 lbf without succumbing to fatigue.

We manufacture the CC-3 design to provide a compression spring that is 1.5" long at rest and provides a consistent rate of 30 lbs/in along its recommended maximum of 0.34" deflection. For best results, your application should fully accommodate the inner (0.154") and outer (0.234") diameters of this spring and be designed for its closed end configuration.
