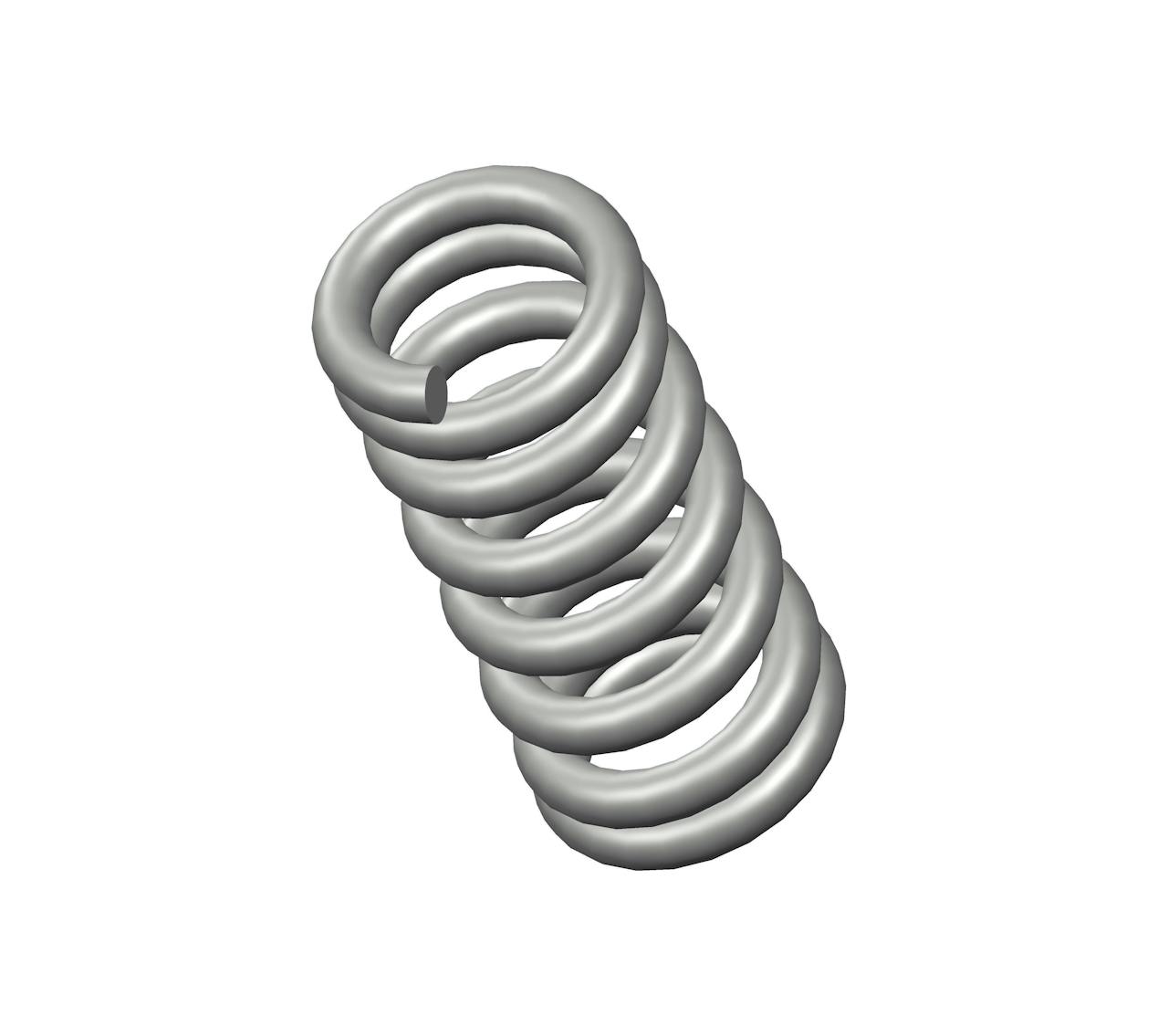

EE-85CS - 0.41" Music Wire Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from music wire with 7.5 coils and closed ends. This spring features an O.D. of 0.172", and an I.D. of 0.112".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name EE-85
Ends Closed
Finish None
Free Length 0.41 in
Inside Diameter 0.112 in
Material Music Wire
Outside Diameter 0.172 in
Part Type Standard
Rate 74 lbs/in
SKU EE-85CS
Solid Length 0.26 in
Suggested Max Deflection 0.11 in
Suggested Max Load 8.4 lbf
Total Coils 7.5
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name EE-85
Ends Closed
Finish None
Free Length 10.41 mm
Inside Diameter 2.84 mm
Material Music Wire
Outside Diameter 4.37 mm
Part Type Standard
Rate 12.96 N/mm
SKU EE-85CS
Solid Length 6.6 mm
Suggested Max Deflection 2.79 mm
Suggested Max Load 37.36 N
Total Coils 7.5
Wire Diameter 0.76 mm
The compression spring EE-85CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the EE-85 compression spring design exhibits exceptional tensile strength and resilience.

The EE-85 design is manufactured with a free length of 0.41", with an outer diameter of 0.172", an inner diameter of 0.112", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 74 lbs/in.

The EE-85CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring EE-85 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
