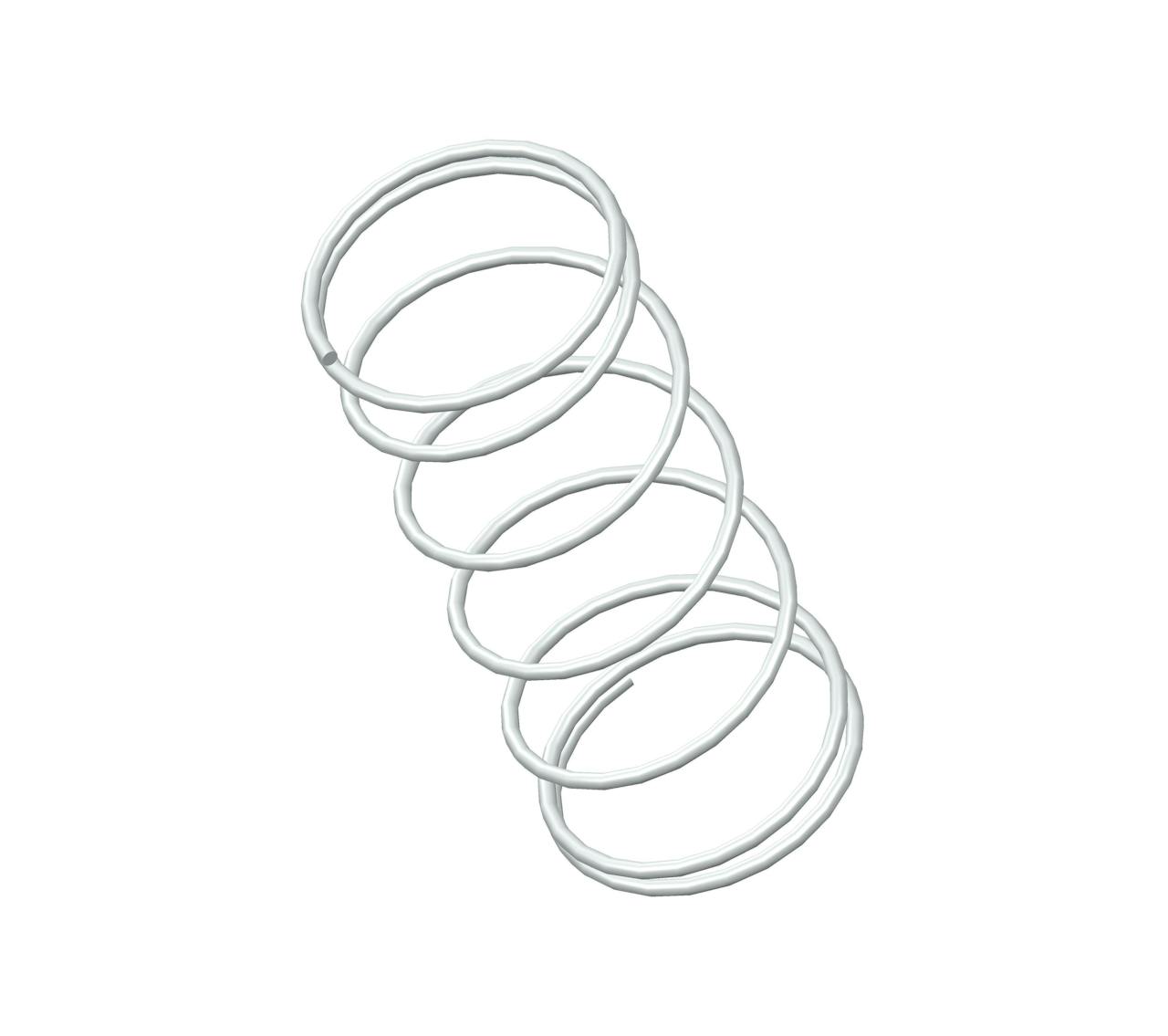

BB-8CS - 0.94" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 7.25 coils and closed ends. This spring features an O.D. of 0.39", and an I.D. of 0.35".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name BB-8
Ends Closed
Finish None
Free Length 0.94 in
Inside Diameter 0.35 in
Material 302/304 Stainless Steel
Outside Diameter 0.39 in
Part Type Standard
Rate 0.75 lbs/in
SKU BB-8CS
Solid Length 0.17 in
Suggested Max Deflection 0.77 in
Suggested Max Load 0.58 lbf
Total Coils 7.25
Wire Diameter 0.02 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name BB-8
Ends Closed
Finish None
Free Length 23.88 mm
Inside Diameter 8.89 mm
Material 302/304 Stainless Steel
Outside Diameter 9.91 mm
Part Type Standard
Rate 0.13 N/mm
SKU BB-8CS
Solid Length 4.32 mm
Suggested Max Deflection 19.56 mm
Suggested Max Load 2.58 N
Total Coils 7.25
Wire Diameter 0.51 mm
The compression spring BB-8CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the BB-8 compression spring design exhibits exceptional tensile strength and resilience.

The BB-8 design is manufactured with a free length of 0.94", with an outer diameter of 0.39", an inner diameter of 0.35", and a total of 7.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.75 lbs/in.

The BB-8CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring BB-8 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
