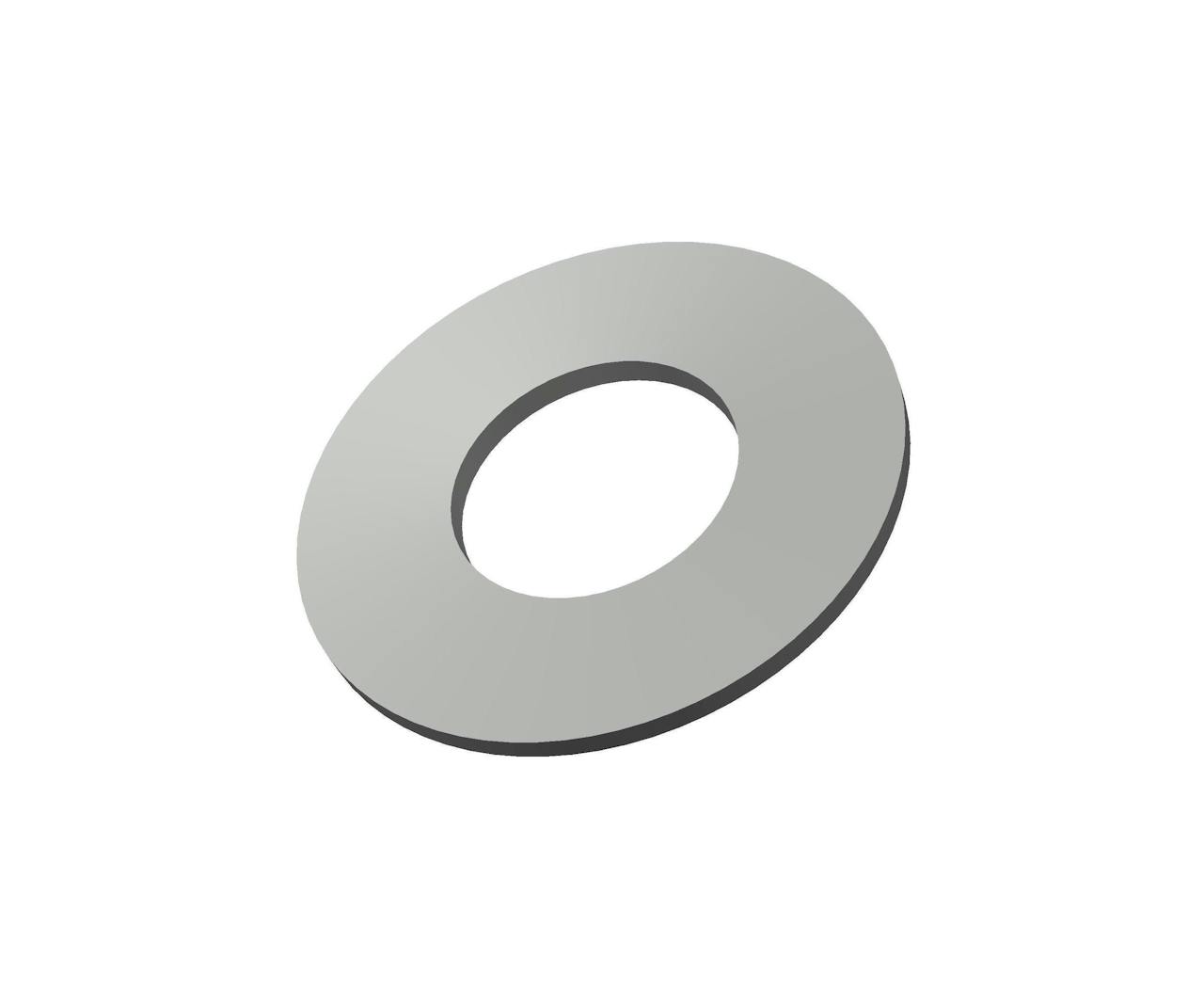

CDS-136359CS - 0.637 Inch ID 1.375 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory:
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.637 Inch and an outside diameter of 1.375 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size 0.625
Brand Century Spring
Display Name CDS-136359
Finish Phosphate
H 0.043 in
Inside Diameter 0.637 in
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.043 in
Maximum Force at 100% Height 901 lb
Measurement Units Standard
Outside Diameter 1.375 in
Outside Height 0.102 in
SKU CDS-136359CS
T 0.059 in
Specs (in metric)
Label Value
Bolt Size 0.63
Brand Century Spring
Display Name CDS-136359
Finish Phosphate
H 1.09 mm
Inside Diameter 16.18 mm
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 1.09 mm
Maximum Force at 100% Height 408.62 kg
Measurement Units Standard
Outside Diameter 34.93 mm
Outside Height 2.59 mm
SKU CDS-136359CS
T 1.5 mm
