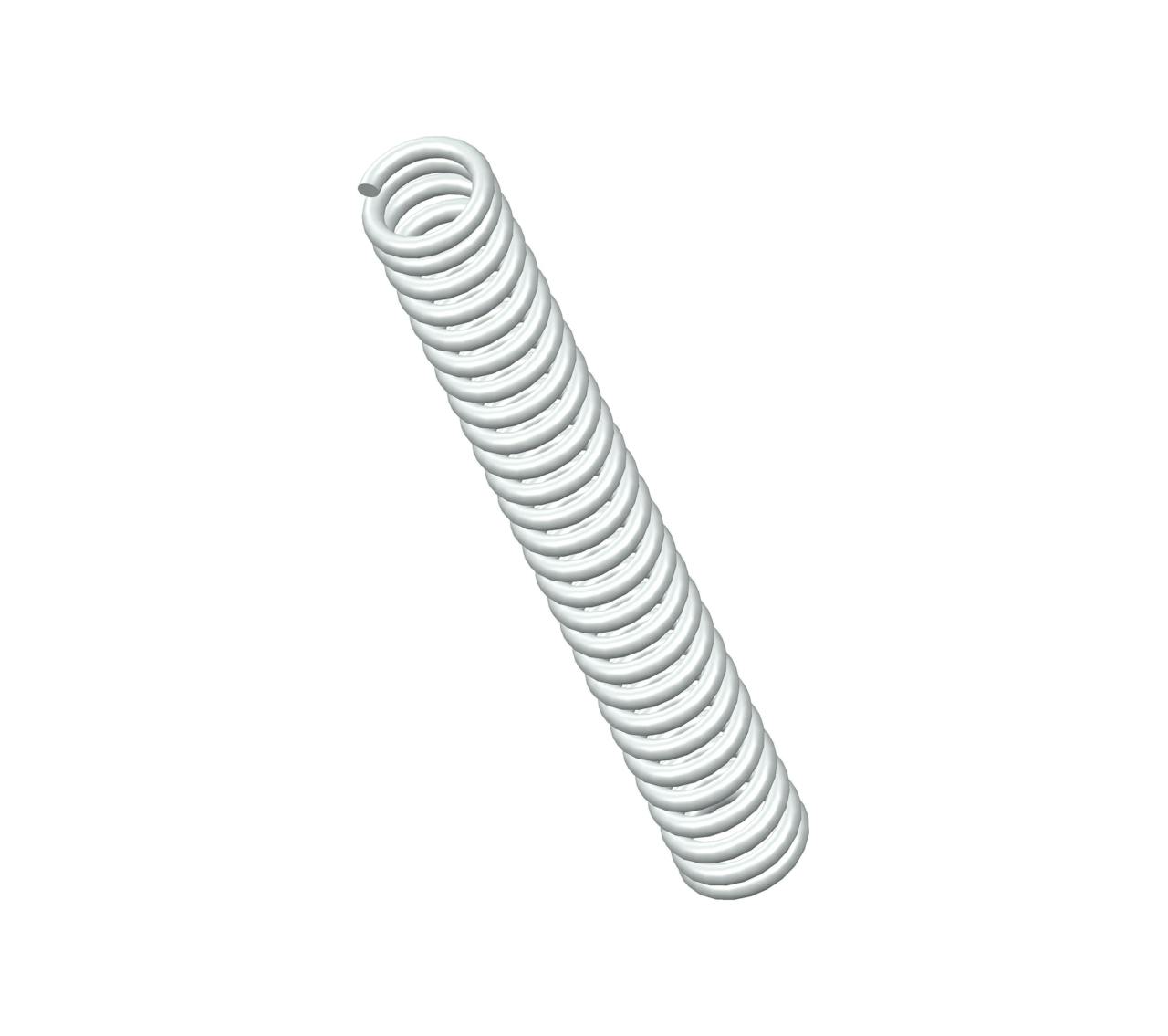

BB-83CS - 1.06" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 27 coils and closed ends. This spring features an O.D. of 0.14", and an I.D. of 0.096".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | BB-83 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.06 in |
| Inside Diameter | 0.096 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.14 in |
| Part Type | Standard |
| Rate | 7.1 lbs/in |
| SKU | BB-83CS |
| Solid Length | 0.62 in |
| Suggested Max Deflection | 0.41 in |
| Suggested Max Load | 2.9 lbf |
| Total Coils | 27 |
| Wire Diameter | 0.022 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | BB-83 |
| Ends | Closed |
| Finish | None |
| Free Length | 26.92 mm |
| Inside Diameter | 2.44 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 3.56 mm |
| Part Type | Standard |
| Rate | 1.24 N/mm |
| SKU | BB-83CS |
| Solid Length | 15.75 mm |
| Suggested Max Deflection | 10.41 mm |
| Suggested Max Load | 12.9 N |
| Total Coils | 27 |
| Wire Diameter | 0.56 mm |
The compression spring BB-83CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the BB-83 compression spring design exhibits exceptional tensile strength and resilience.
The BB-83 design is manufactured with a free length of 1.06", with an outer diameter of 0.14", an inner diameter of 0.096", and a total of 27 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.1 lbs/in.
The BB-83CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring BB-83 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
