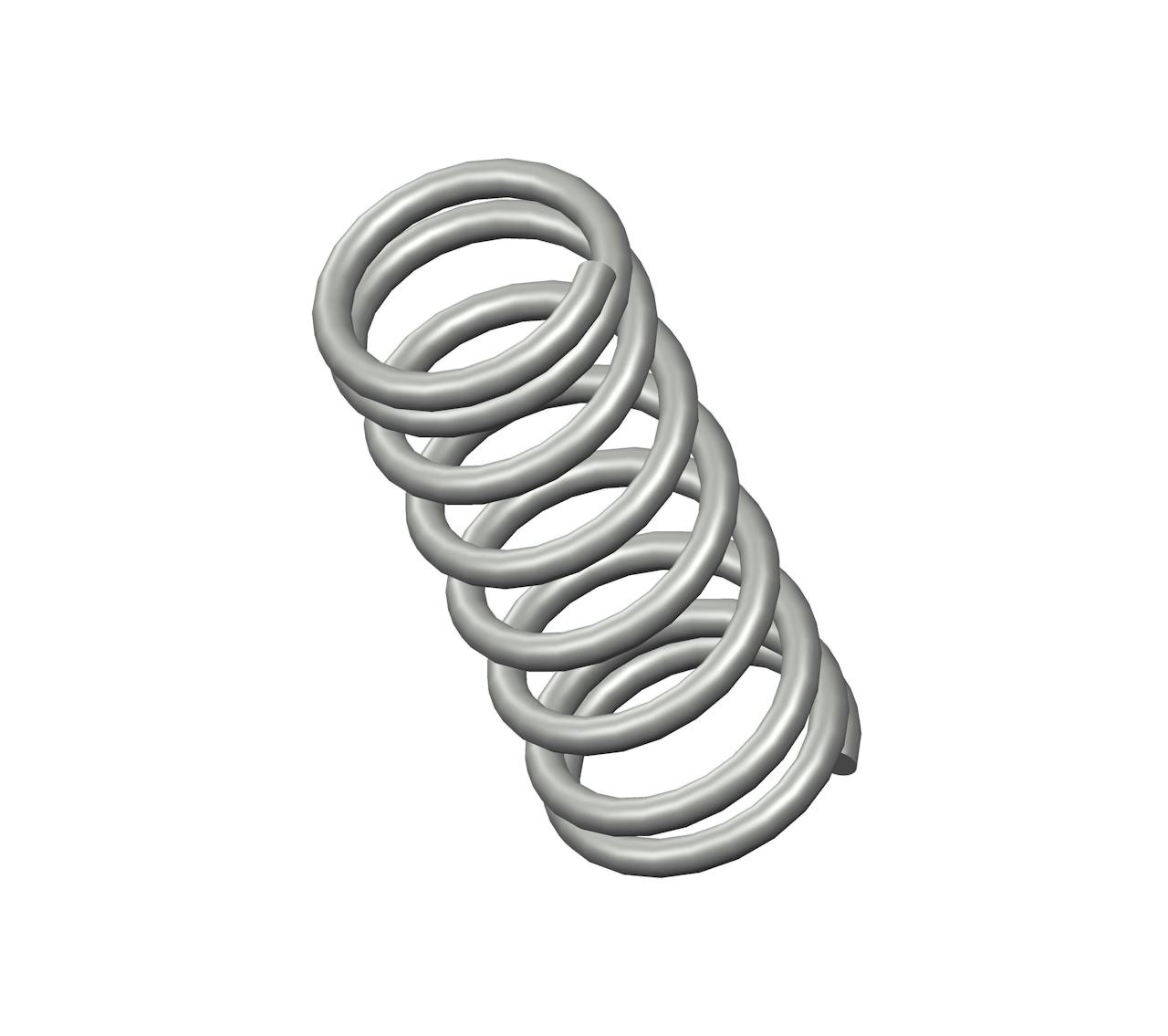

JJ-95CS - 0.63" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from music wire with 8 coils and closed ends. This spring features an O.D. of 0.25", and an I.D. of 0.19".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | JJ-95 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.63 in |
| Inside Diameter | 0.19 in |
| Material | Music Wire |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 18 lbs/in |
| SKU | JJ-95CS |
| Solid Length | 0.27 in |
| Suggested Max Deflection | 0.33 in |
| Suggested Max Load | 6 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.03 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | JJ-95 |
| Ends | Closed |
| Finish | None |
| Free Length | 16 mm |
| Inside Diameter | 4.83 mm |
| Material | Music Wire |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 3.15 N/mm |
| SKU | JJ-95CS |
| Solid Length | 6.86 mm |
| Suggested Max Deflection | 8.38 mm |
| Suggested Max Load | 26.69 N |
| Total Coils | 8 |
| Wire Diameter | 0.76 mm |
The compression spring JJ-95CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the JJ-95 compression spring design exhibits exceptional tensile strength and resilience.
The JJ-95 design is manufactured with a free length of 0.63", with an outer diameter of 0.25", an inner diameter of 0.19", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 18 lbs/in.
The JJ-95CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring JJ-95 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The JJ-95 design is manufactured with a free length of 0.63", with an outer diameter of 0.25", an inner diameter of 0.19", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 18 lbs/in.
The JJ-95CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring JJ-95 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
