BB-73CS - 0.38" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

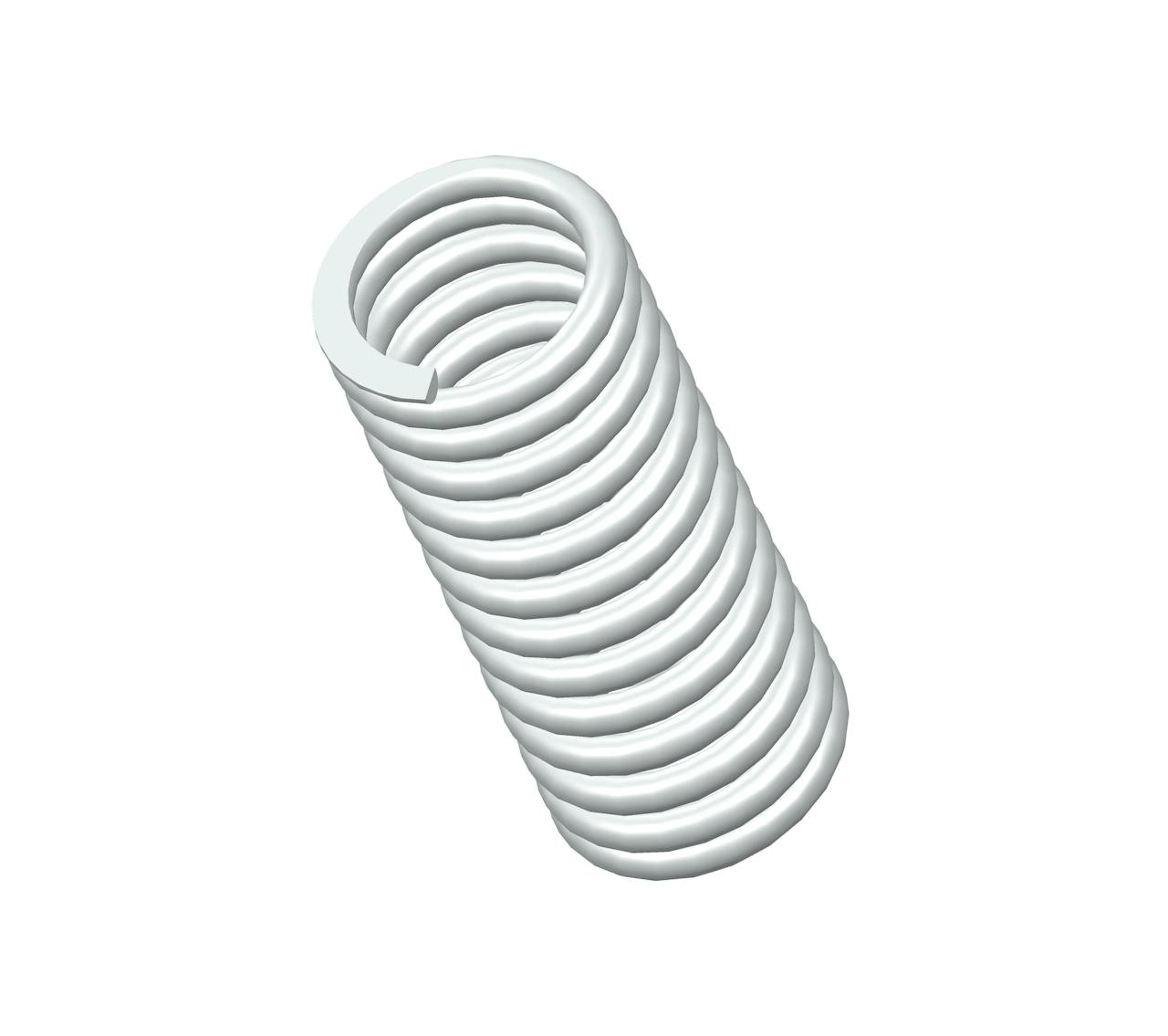

Compression spring manufactured from 302/304 stainless steel with 13.5 coils and closed & ground ends. This spring features an O.D. of 0.156", and an I.D. of 0.116".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | BB-73 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.38 in |
| Inside Diameter | 0.116 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.156 in |
| Part Type | Standard |
| Rate | 7.1 lbs/in |
| SKU | BB-73CS |
| Solid Length | 0.27 in |
| Suggested Max Deflection | 0.11 in |
| Suggested Max Load | 0.74 lbf |
| Total Coils | 13.5 |
| Wire Diameter | 0.02 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | BB-73 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 9.65 mm |
| Inside Diameter | 2.95 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 3.96 mm |
| Part Type | Standard |
| Rate | 1.24 N/mm |
| SKU | BB-73CS |
| Solid Length | 6.86 mm |
| Suggested Max Deflection | 2.79 mm |
| Suggested Max Load | 3.29 N |
| Total Coils | 13.5 |
| Wire Diameter | 0.51 mm |
The BB-73 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The BB-73CS compression spring is designed with a free length of 0.88" total of 8.25 coils, and a rate of 2.4 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The BB-73 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The BB-73CS compression spring is designed with a free length of 0.88" total of 8.25 coils, and a rate of 2.4 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The BB-73 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
