Century Spring

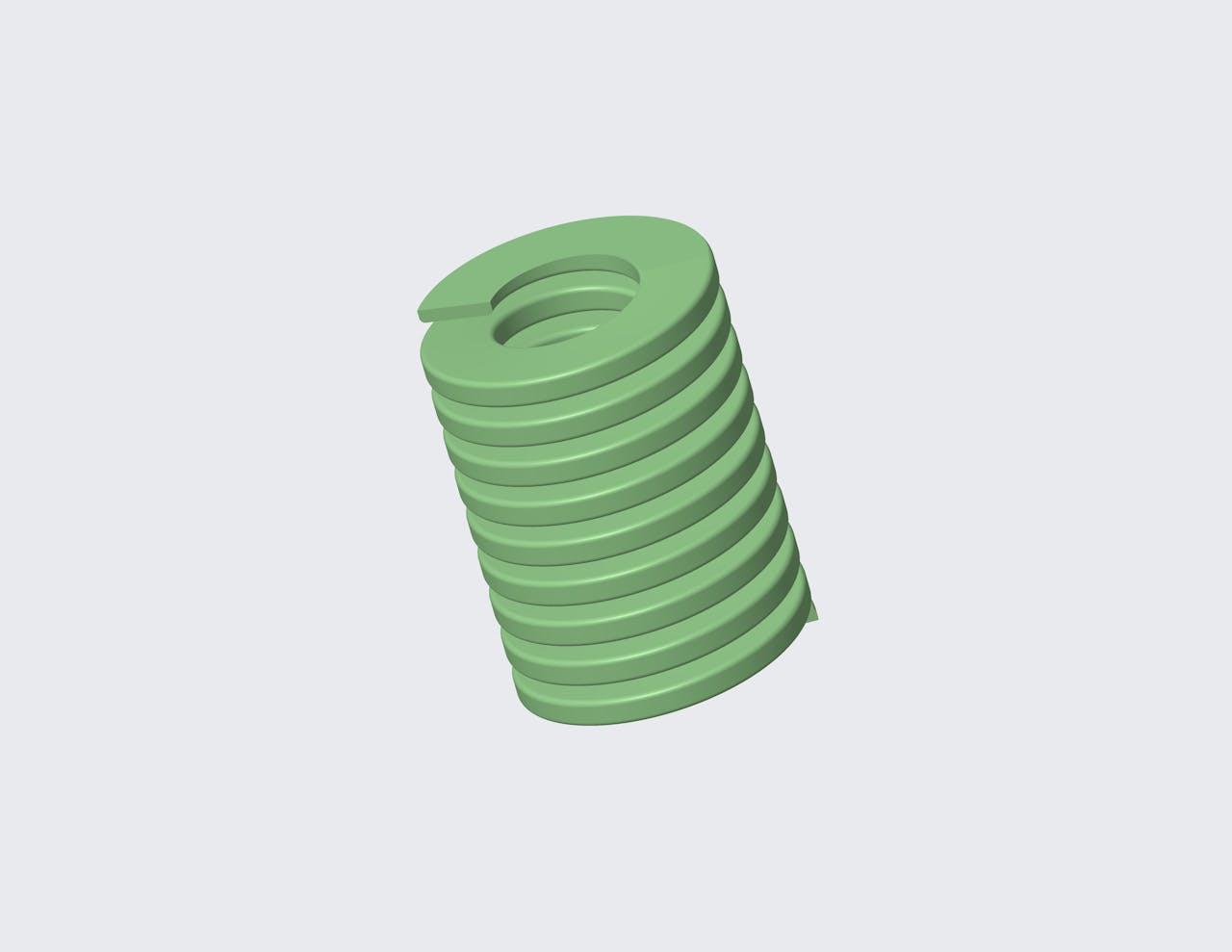

D-304405CS - 32 Millimeter Medium Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 32 Millimeter long and has a 67.9 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.315 in
Deflection 2 0.378 in
Deflection 3 0.5039 in
Display Name D-304405
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 1.2598 in
Hole Size 0.7874 in
Load 1 122.0773 lbf
Load 2 146.5827 lbf
Load 3 195.3687 lbf
Load At Max Deflection 204.5863 lbf
Material Chrome Silicon
Max Deflection 0.5276 in
Measurement Units Metric
Rate 387.7784 lbs/in
Rod Size 0.3937 in
SKU D-304405CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 8 mm
Deflection 2 9.6 mm
Deflection 3 12.8 mm
Display Name D-304405
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 32 mm
Hole Size 20 mm
Load 1 543 N
Load 2 652 N
Load 3 869 N
Load At Max Deflection 910 N
Material Chrome Silicon
Max Deflection 13.4 mm
Measurement Units Metric
Rate 67.9 N/mm
Rod Size 10 mm
SKU D-304405CS
