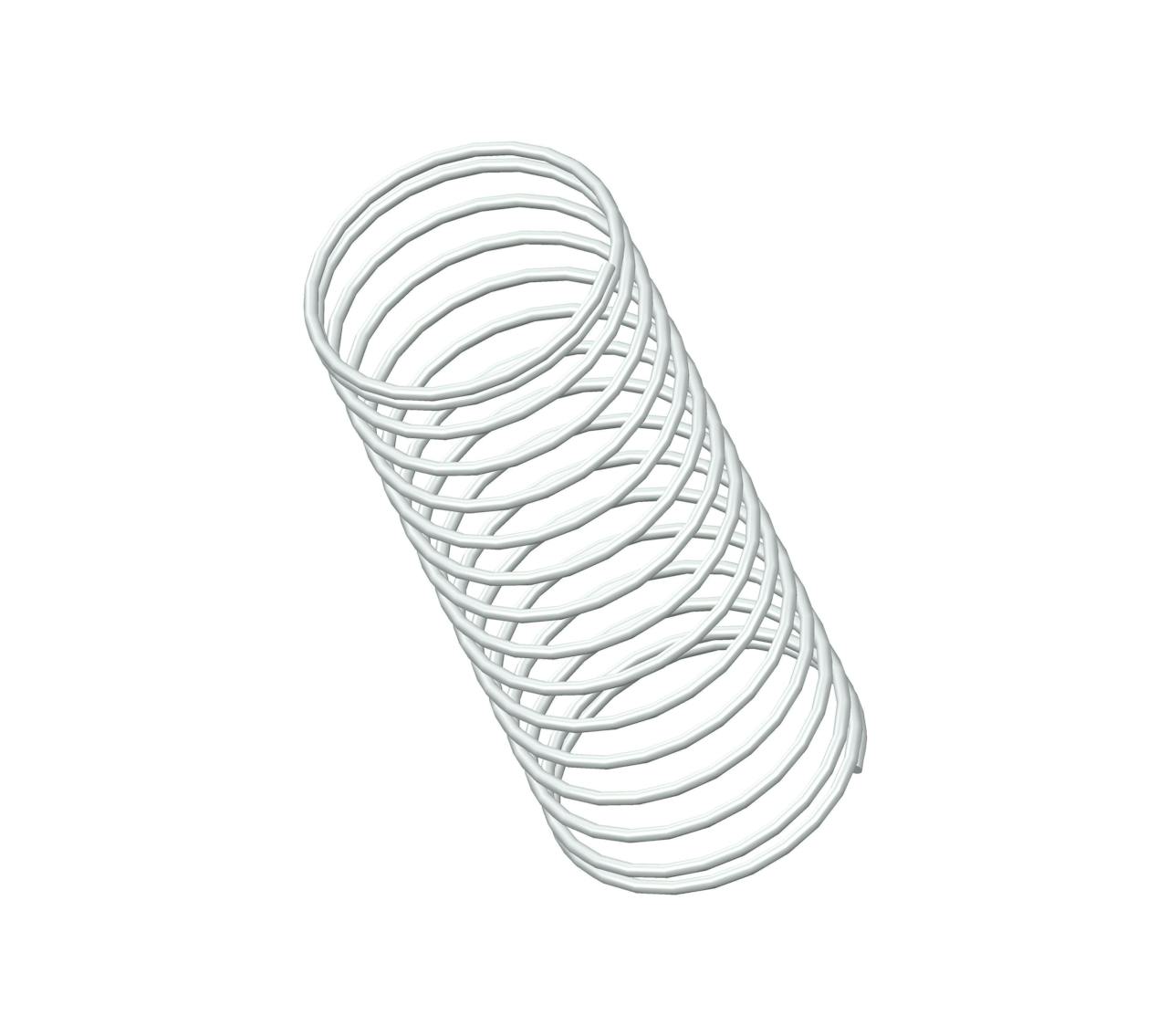

BB-18CS - 0.69" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 16 coils and closed ends. This spring features an O.D. of 0.281", and an I.D. of 0.257".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | BB-18 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.69 in |
| Inside Diameter | 0.257 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.281 in |
| Part Type | Standard |
| Rate | 0.1 lbs/in |
| SKU | BB-18CS |
| Solid Length | 0.2 in |
| Suggested Max Deflection | 0.48 in |
| Suggested Max Load | 0.05 lbf |
| Total Coils | 16 |
| Wire Diameter | 0.012 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | BB-18 |
| Ends | Closed |
| Finish | None |
| Free Length | 17.53 mm |
| Inside Diameter | 6.53 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.14 mm |
| Part Type | Standard |
| Rate | 0.02 N/mm |
| SKU | BB-18CS |
| Solid Length | 5.08 mm |
| Suggested Max Deflection | 12.19 mm |
| Suggested Max Load | 0.22 N |
| Total Coils | 16 |
| Wire Diameter | 0.3 mm |
The compression spring BB-18CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the BB-18 compression spring design exhibits exceptional tensile strength and resilience.
The BB-18 design is manufactured with a free length of 0.69", with an outer diameter of 0.281", an inner diameter of 0.257", and a total of 16 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.1 lbs/in.
The BB-18CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring BB-18 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
