Century Spring

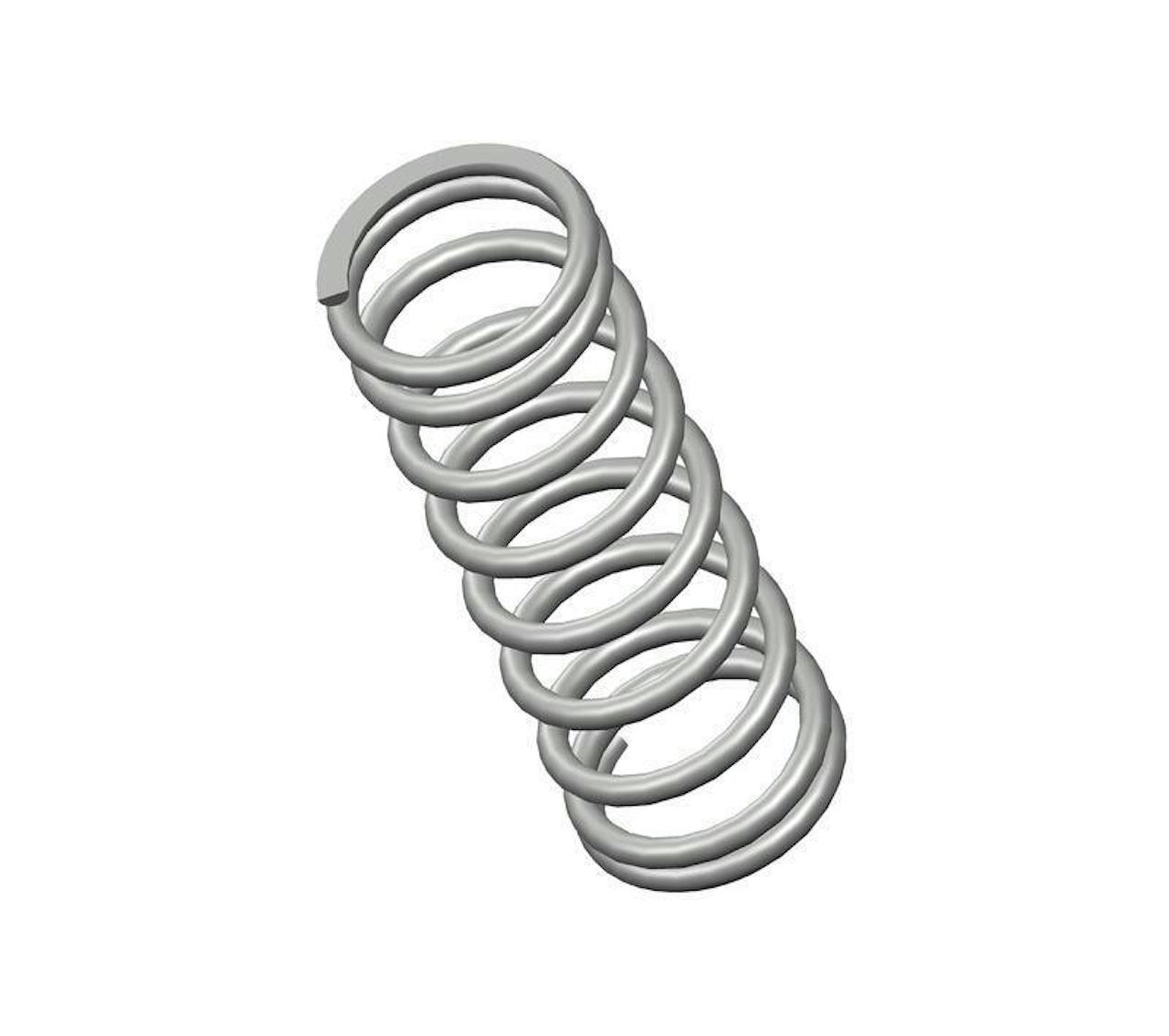

71292CS - 1.13" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 9.13 coils and closed & ground ends. This spring features an O.D. of 0.39", and an I.D. of 0.304".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71292
Ends Closed & Ground
Finish None
Free Length 1.13 in
Inside Diameter 0.304 in
Material Music Wire
Outside Diameter 0.39 in
Part Type Standard
Rate 17 lbs/in
SKU 71292CS
Solid Length 0.39 in
Suggested Max Deflection 0.65 in
Suggested Max Load 11 lbf
Total Coils 9.13
Wire Diameter 0.043 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 71292
Ends Closed & Ground
Finish None
Free Length 28.7 mm
Inside Diameter 7.72 mm
Material Music Wire
Outside Diameter 9.91 mm
Part Type Standard
Rate 2.98 N/mm
SKU 71292CS
Solid Length 9.91 mm
Suggested Max Deflection 16.51 mm
Suggested Max Load 48.93 N
Total Coils 9.13
Wire Diameter 1.09 mm
The compression spring 71292CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 71292 compression spring design exhibits exceptional tensile strength and resilience.

The 71292 design is manufactured with a free length of 1.13", with an outer diameter of 0.39", an inner diameter of 0.304", and a total of 9.13 coils, expertly designed to deliver consistent compression characteristics including a rate of 17 lbs/in.

The 71292CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 71292 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
