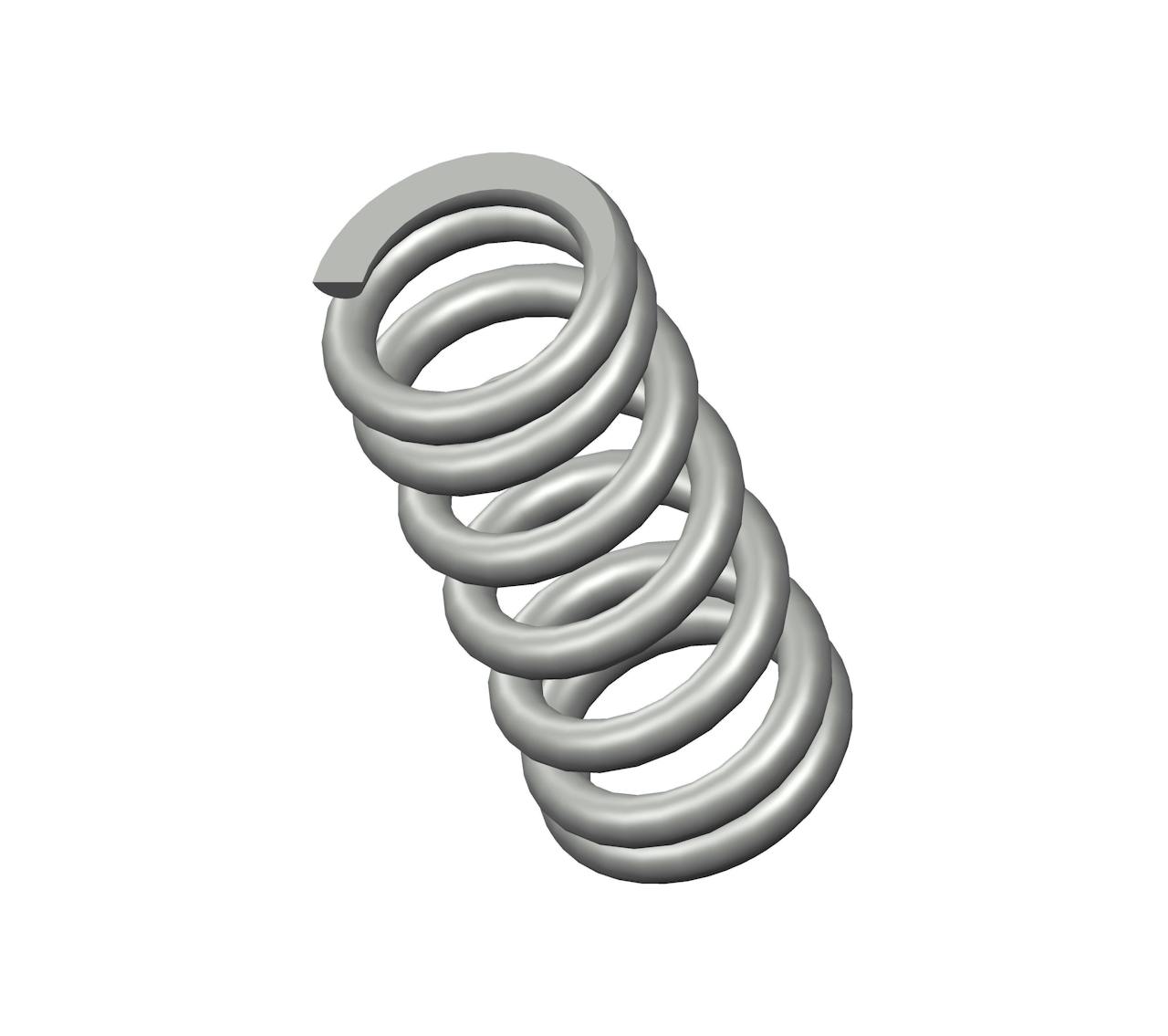

BB-15CS - 0.28" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 7 coils and closed & ground ends. This spring features an O.D. of 0.125", and an I.D. of 0.085".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | BB-15 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.28 in |
| Inside Diameter | 0.085 in |
| Material | Music Wire |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 40 lbs/in |
| SKU | BB-15CS |
| Solid Length | 0.14 in |
| Suggested Max Deflection | 0.09 in |
| Suggested Max Load | 3.7 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.02 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | BB-15 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 7.11 mm |
| Inside Diameter | 2.16 mm |
| Material | Music Wire |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 7 N/mm |
| SKU | BB-15CS |
| Solid Length | 3.56 mm |
| Suggested Max Deflection | 2.29 mm |
| Suggested Max Load | 16.46 N |
| Total Coils | 7 |
| Wire Diameter | 0.51 mm |
The compression spring BB-15CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the BB-15 compression spring design exhibits exceptional tensile strength and resilience.
The BB-15 design is manufactured with a free length of 0.28", with an outer diameter of 0.125", an inner diameter of 0.085", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 40 lbs/in.
The BB-15CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring BB-15 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
