Century Spring

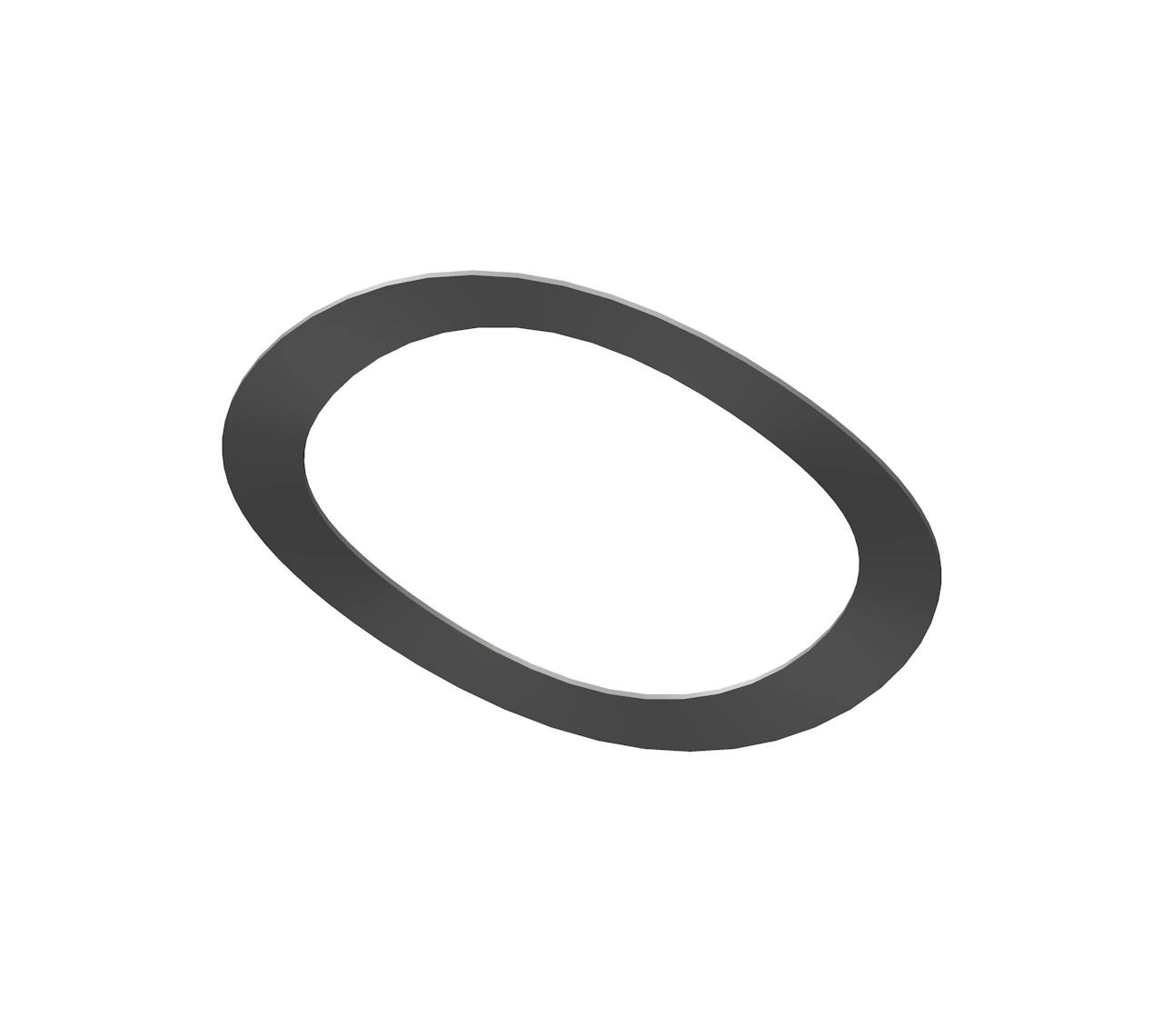

WAV-25034CS - 1.135 Inch ID 1.47 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 1.135 Inch and an outside diameter of 1.47 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 4.6 lb
Display Name WAV-25034
Finish None
Inside Diameter 1.135 in
Material Spring Steel
Maximum Deflection at 100% Height 0.05 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 1.47 in
Outside Height 0.062 in
SKU WAV-25034CS
T 0.012 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 2.09 kg
Display Name WAV-25034
Finish None
Inside Diameter 28.83 mm
Material Spring Steel
Maximum Deflection at 100% Height 1.27 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 37.34 mm
Outside Height 1.57 mm
SKU WAV-25034CS
T 0.3 mm
