B8-50CS - 1.09" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

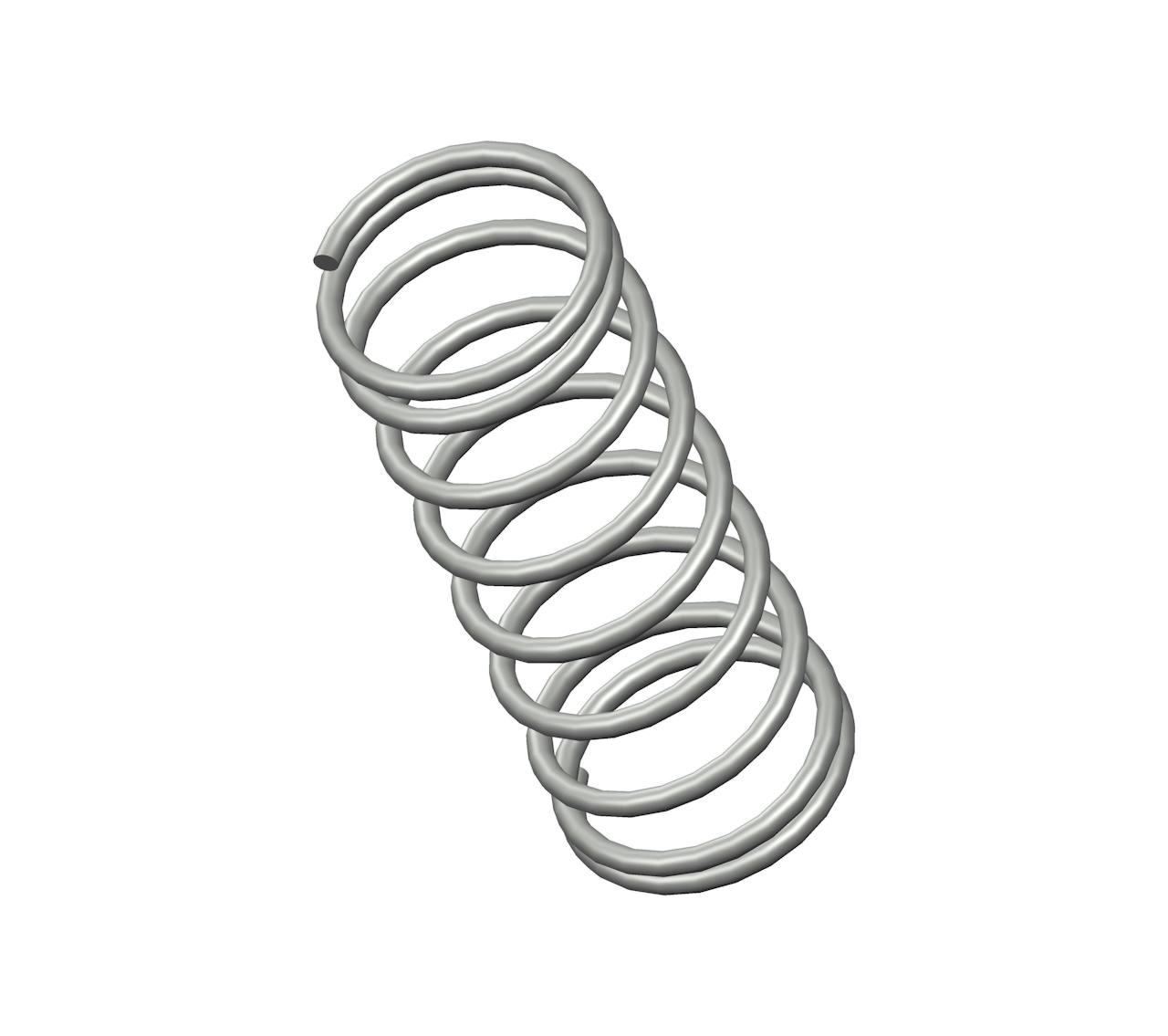

Compression spring manufactured from spring steel with 9 coils and closed ends. This spring features an O.D. of 0.406", and an I.D. of 0.338".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B8-50
Ends Closed
Finish None
Free Length 1.09 in
Inside Diameter 0.338 in
Material Spring Steel
Outside Diameter 0.406 in
Part Type Standard
Rate 5.3 lbs/in
SKU B8-50CS
Solid Length 0.34 in
Suggested Max Deflection 0.74 in
Suggested Max Load 3.9 lbf
Total Coils 9
Wire Diameter 0.034 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B8-50
Ends Closed
Finish None
Free Length 27.69 mm
Inside Diameter 8.59 mm
Material Spring Steel
Outside Diameter 10.31 mm
Part Type Standard
Rate 0.93 N/mm
SKU B8-50CS
Solid Length 8.64 mm
Suggested Max Deflection 18.8 mm
Suggested Max Load 17.35 N
Total Coils 9
Wire Diameter 0.86 mm
The B8-50 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The B8-50CS compression spring is designed with a free length of 1.28" total of 7 coils, and a rate of 0.8 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The B8-50 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
