S-3237CS - 2.34" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

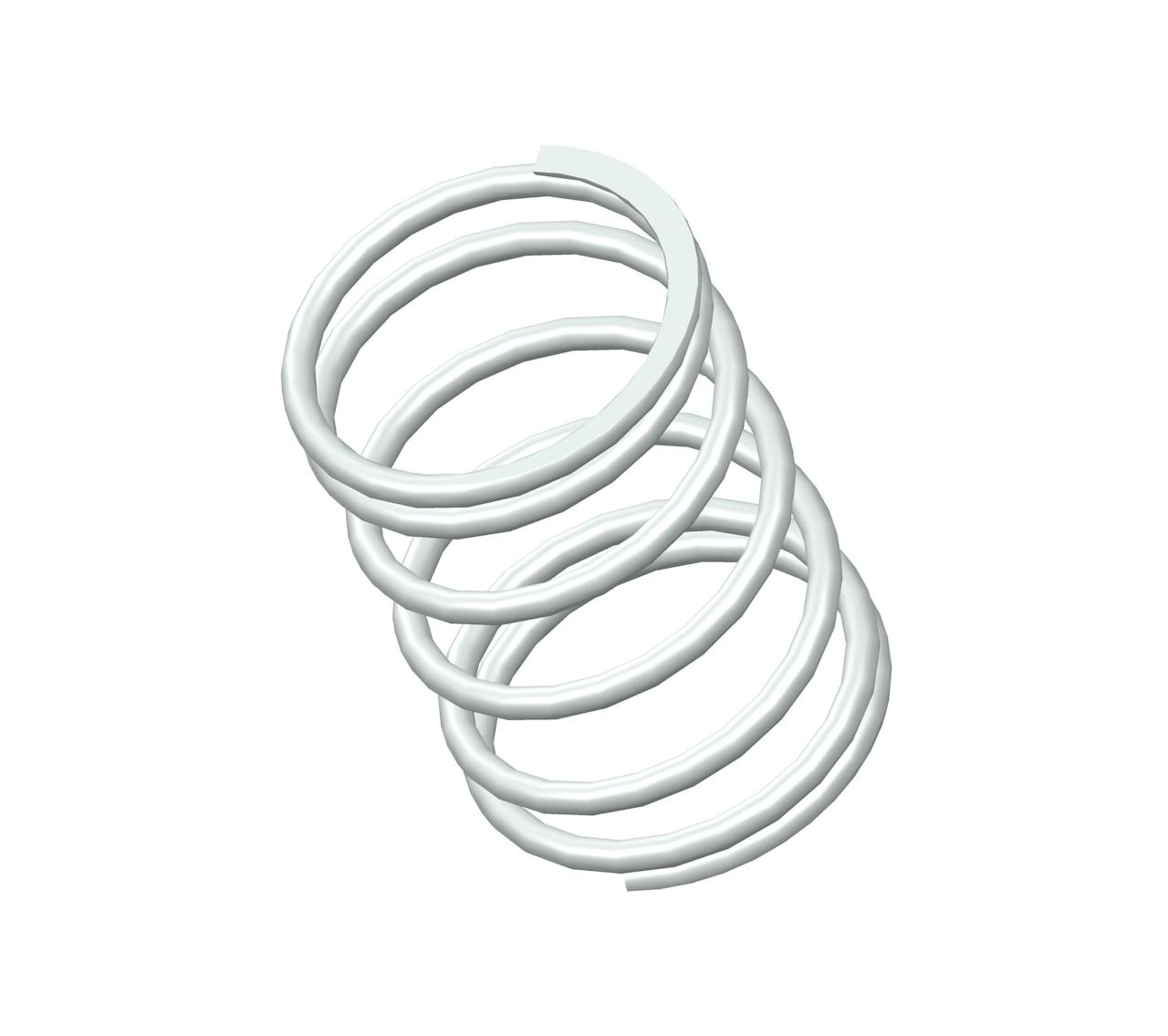

Compression spring manufactured from 302/304 stainless steel with 6.5 coils and closed & ground ends. This spring features an O.D. of 1.64", and an I.D. of 1.39".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-3237
Ends Closed & Ground
Finish None
Free Length 2.34 in
Inside Diameter 1.39 in
Material 302/304 Stainless Steel
Outside Diameter 1.64 in
Part Type Standard
Rate 20 lbs/in
SKU S-3237CS
Solid Length 0.81 in
Suggested Max Deflection 1.5 in
Suggested Max Load 30 lbf
Total Coils 6.5
Wire Diameter 0.125 in
The compression spring S-3237CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3237 compression spring design exhibits exceptional tensile strength and resilience.

The S-3237 design is manufactured with a free length of 2.34", with an outer diameter of 1.64", an inner diameter of 1.39", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 20 lbs/in.

The S-3237CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring S-3237 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
