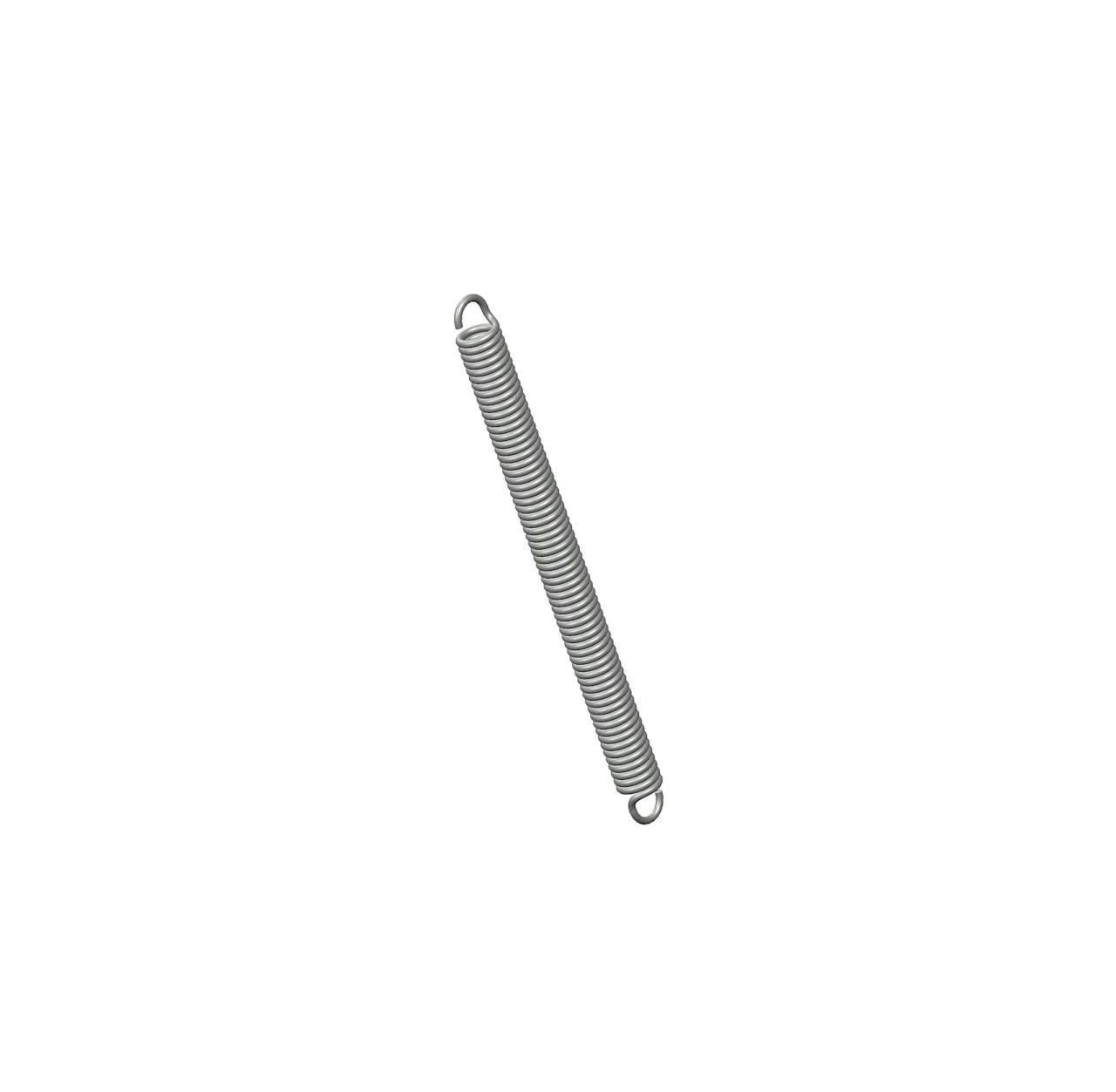

B6-11CS - 3.03 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.234 Inch and an initial tension of 3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B6-11
Ends Machine Hook
Finish Gold Iridite
Initial Tension 3 lb
Length 3.03 in
Material Spring Steel
Outside Diameter 0.234 in
Part Type Standard
Rate 8.3 lbs/in
SKU B6-11CS
Sugg Max Deflection 1 in
Sugg Max Load 11 lbf
Wire Diameter 0.041 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B6-11
Ends Machine Hook
Finish Gold Iridite
Initial Tension 1.36 kg
Length 76.96 mm
Material Spring Steel
Outside Diameter 5.94 mm
Part Type Standard
Rate 1.45 N/mm
SKU B6-11CS
Sugg Max Deflection 25.4 mm
Sugg Max Load 48.93 N
Wire Diameter 1.04 mm
