Century Spring

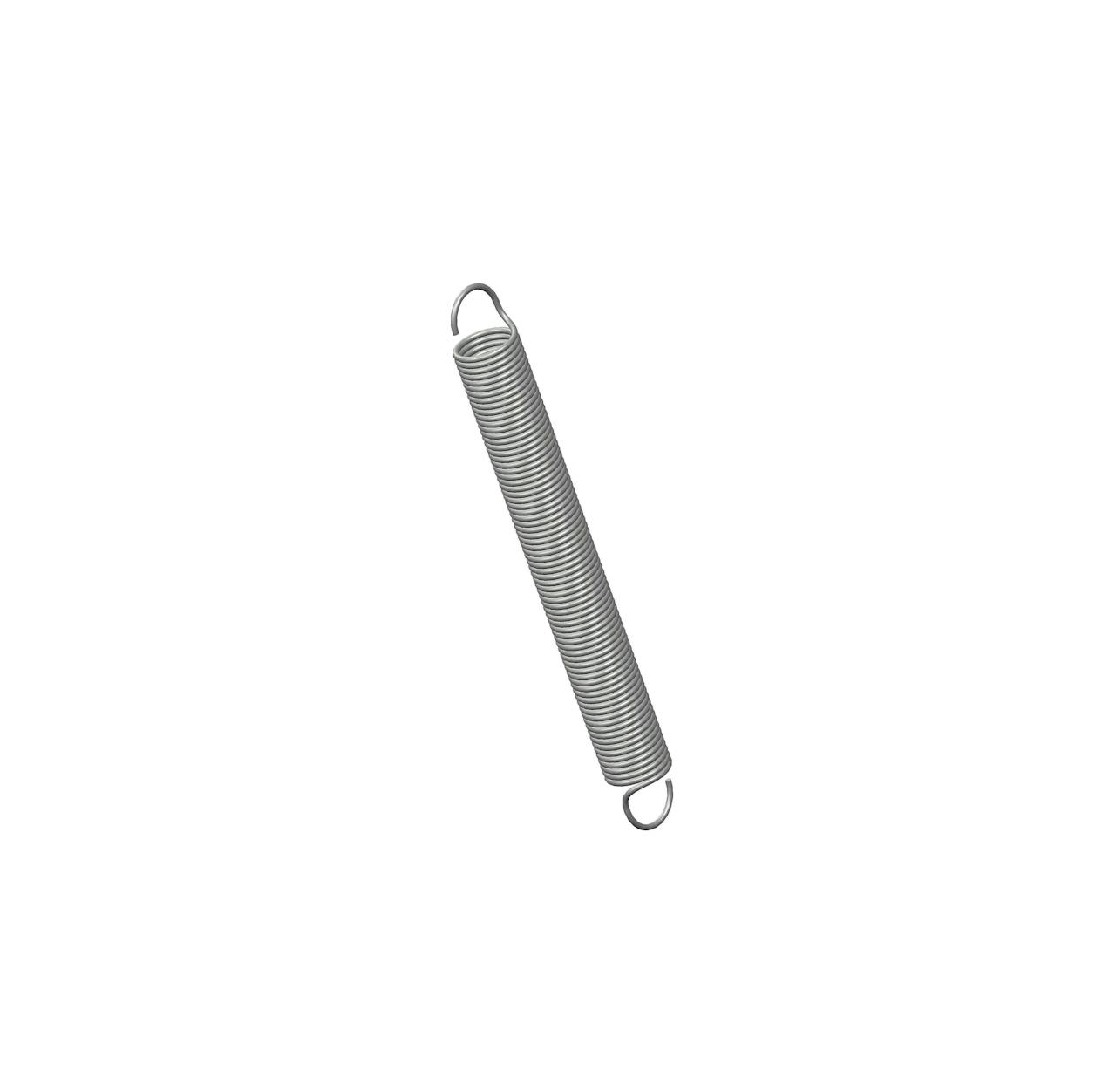

142CS - 8.5 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.938 Inch and an initial tension of 4 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 142
Ends Machine Hook
Finish Zinc
Initial Tension 4 lb
Length 8.5 in
Material High Carbon Steel
Outside Diameter 0.938 in
Part Type Standard
Rate 2 lbs/in
SKU 142CS
Sugg Max Deflection 10 in
Sugg Max Load 24 lbf
Wind Direction Left
Wire Diameter 0.091 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 142
Ends Machine Hook
Finish Zinc
Initial Tension 1.81 kg
Length 215.9 mm
Material High Carbon Steel
Outside Diameter 23.83 mm
Part Type Standard
Rate 0.35 N/mm
SKU 142CS
Sugg Max Deflection 254 mm
Sugg Max Load 106.75 N
Wind Direction Left
Wire Diameter 2.31 mm
