B5-7CS - 0.5" Music Wire Compression Spring

Inventory:
Estimated Lead Time

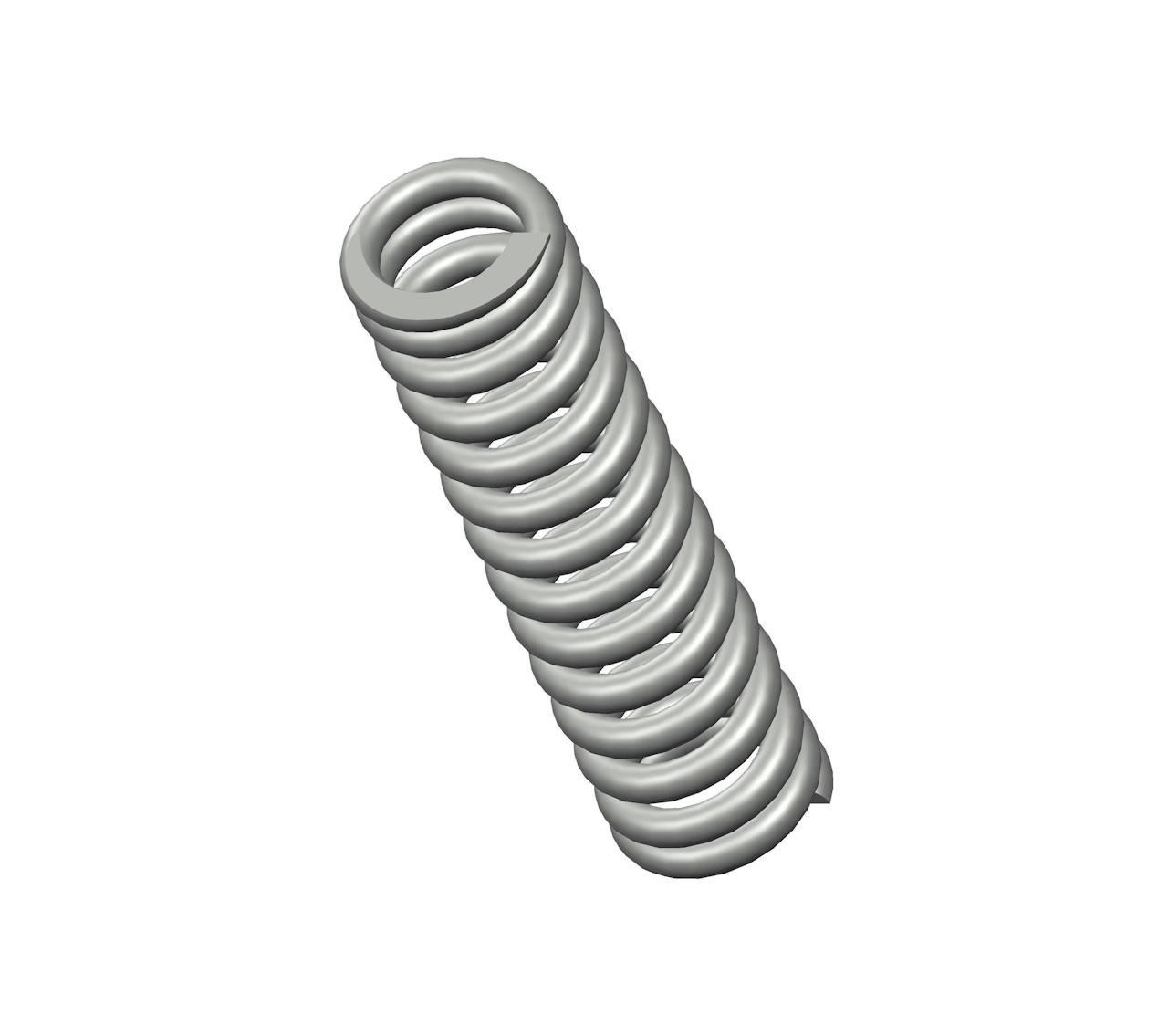

Compression spring manufactured from music wire with 14 coils and closed & ground ends. This spring features an O.D. of 0.125", and an I.D. of 0.081".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B5-7
Ends Closed & Ground
Finish None
Free Length 0.5 in
Inside Diameter 0.081 in
Material Music Wire
Outside Diameter 0.125 in
Part Type Standard
Rate 26 lbs/in
SKU B5-7CS
Solid Length 0.31 in
Suggested Max Deflection 0.19 in
Suggested Max Load 4.8 lbf
Total Coils 14
Wire Diameter 0.022 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B5-7
Ends Closed & Ground
Finish None
Free Length 12.7 mm
Inside Diameter 2.06 mm
Material Music Wire
Outside Diameter 3.18 mm
Part Type Standard
Rate 4.55 N/mm
SKU B5-7CS
Solid Length 7.87 mm
Suggested Max Deflection 4.83 mm
Suggested Max Load 21.35 N
Total Coils 14
Wire Diameter 0.56 mm
The compression spring B5-7CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the B5-7 compression spring design exhibits exceptional tensile strength and resilience.

The B5-7 design is manufactured with a free length of 0.5", with an outer diameter of 0.125", an inner diameter of 0.081", and a total of 14 coils, expertly designed to deliver consistent compression characteristics including a rate of 26 lbs/in.

The B5-7CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring B5-7 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
