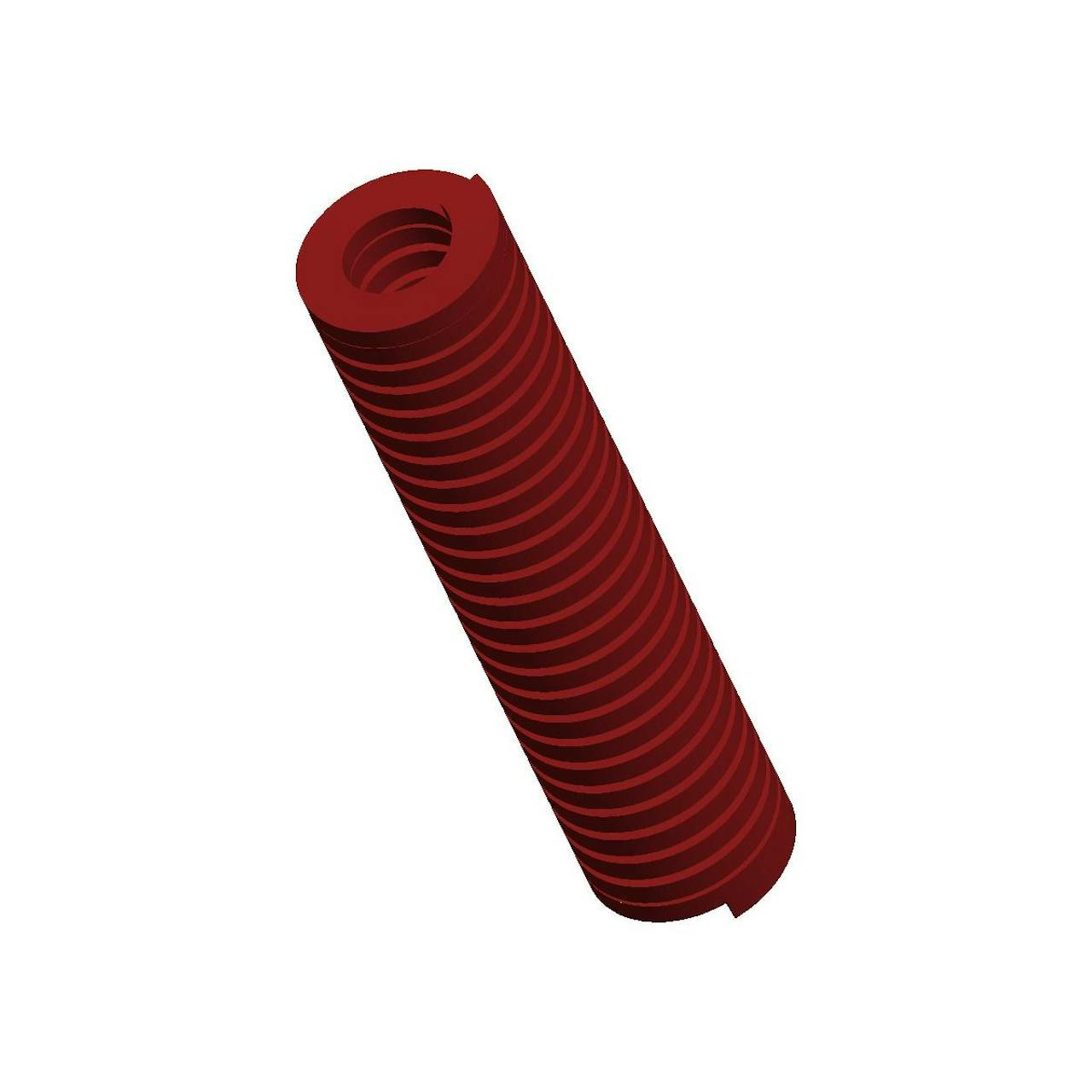

D-1241CS - 5 Inch Chrome Alloy Die Spring

Inventory:
Estimated Lead Time

5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 144 lb
Brand Century Spring
Deflection For Average Life 1 in
Deflection For Long Life 1.25 in
Display Name D-1241
Duty Load Medium
Finish None
Finish Color Red
Free Length 5 in
Hole Size 1 in
Long Life Deflection Force 180 lb
Material Chrome Alloy
Maximum Deflection 1.85 in
Maximum Deflection Force 266 lb
Measurement Units Standard
Rate 144 lbs/in
Rod Size 0.5 in
SKU D-1241CS
Wire Diameter 0.218 in x 0.115 in
Specs (in metric)
Label Value
Average Life Deflection Force 65.31 kg
Brand Century Spring
Deflection For Average Life 25.4 mm
Deflection For Long Life 31.75 mm
Display Name D-1241
Duty Load Medium
Finish None
Finish Color Red
Free Length 127 mm
Hole Size 25.4 mm
Long Life Deflection Force 81.63 kg
Material Chrome Alloy
Maximum Deflection 46.99 mm
Maximum Deflection Force 120.63 kg
Measurement Units Standard
Rate 25.21 N/mm
Rod Size 12.7 mm
SKU D-1241CS
Wire Diameter 5.54 mm x 2.92 mm
