B4-11CS - 0.5" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

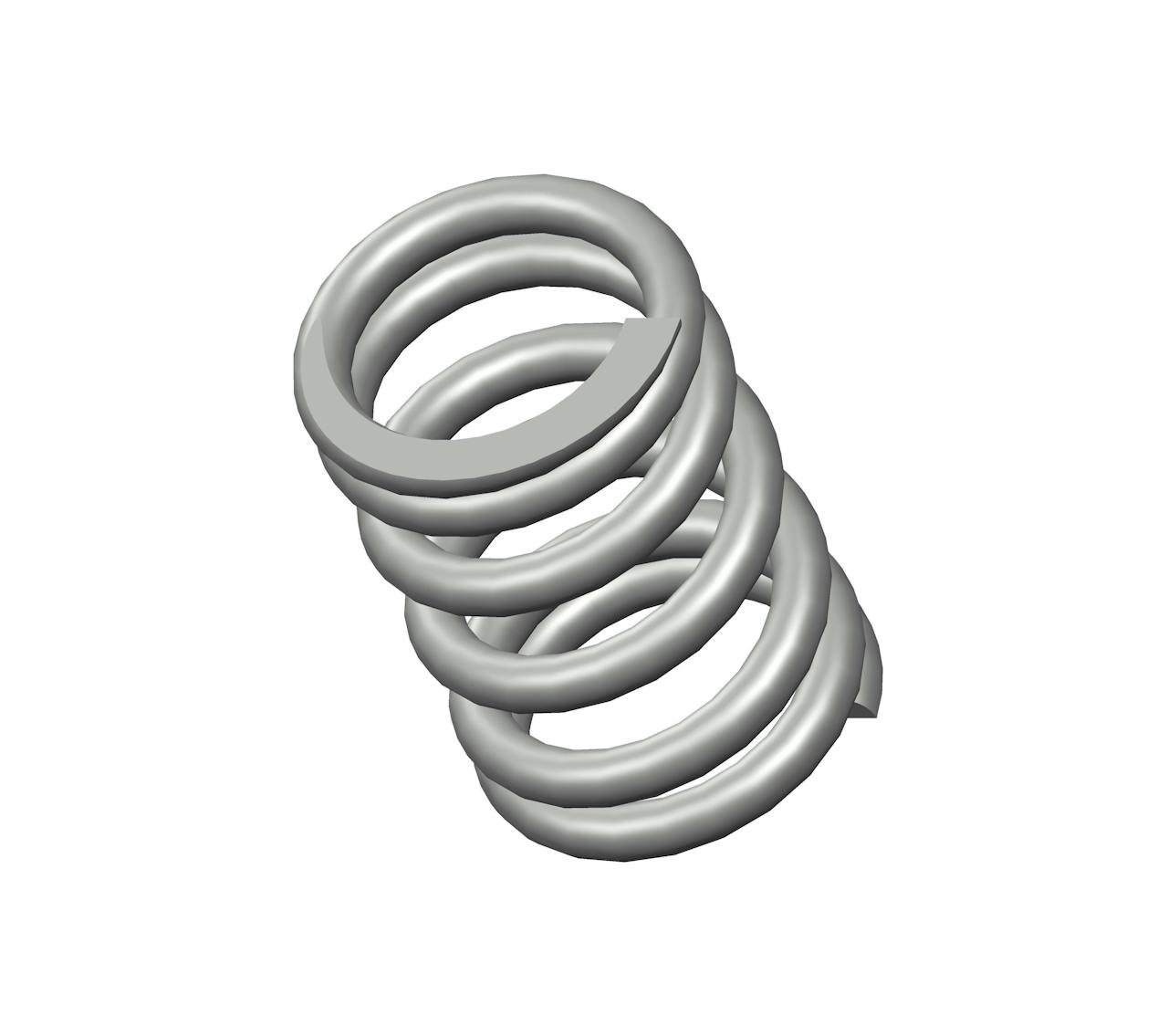

Compression spring manufactured from spring steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.328", and an I.D. of 0.236".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B4-11 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.5 in |
| Inside Diameter | 0.236 in |
| Material | Spring Steel |
| Outside Diameter | 0.328 in |
| Part Type | Standard |
| Rate | 72 lbs/in |
| SKU | B4-11CS |
| Solid Length | 0.28 in |
| Suggested Max Deflection | 0.16 in |
| Suggested Max Load | 11 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.046 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B4-11 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 12.7 mm |
| Inside Diameter | 5.99 mm |
| Material | Spring Steel |
| Outside Diameter | 8.33 mm |
| Part Type | Standard |
| Rate | 12.61 N/mm |
| SKU | B4-11CS |
| Solid Length | 7.11 mm |
| Suggested Max Deflection | 4.06 mm |
| Suggested Max Load | 48.93 N |
| Total Coils | 6 |
| Wire Diameter | 1.17 mm |
The B4-11 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The B4-11CS compression spring is designed with a free length of 0.63" total of 11.5 coils, and a rate of 9.1 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B4-11 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The B4-11CS compression spring is designed with a free length of 0.63" total of 11.5 coils, and a rate of 9.1 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B4-11 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
