Century Spring

10486CS - 0.56" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

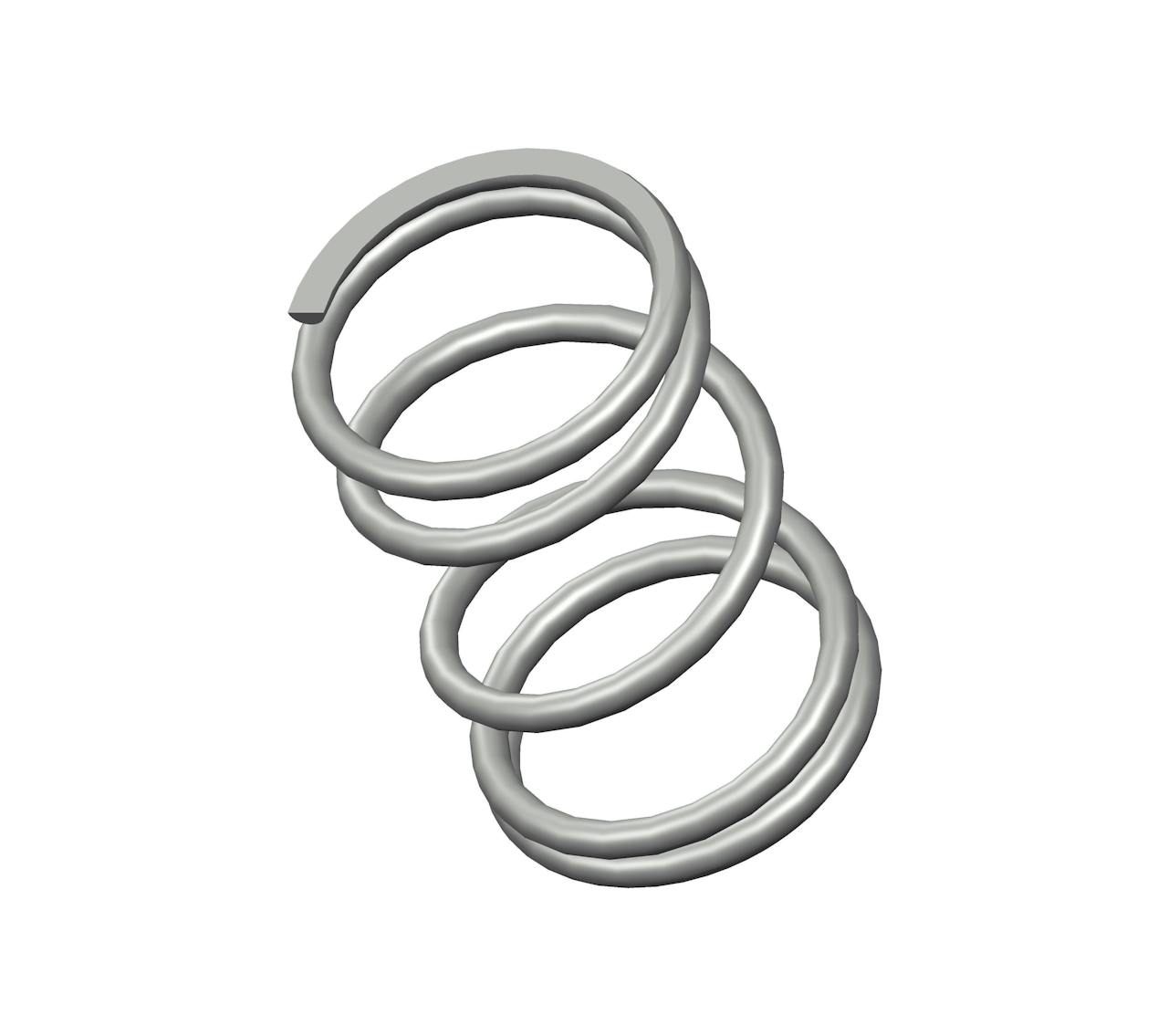

Compression spring manufactured from spring steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.294".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10486
Ends Closed & Ground
Finish Gold Iridite
Free Length 0.56 in
Inside Diameter 0.294 in
Material Spring Steel
Outside Diameter 0.36 in
Part Type Standard
Rate 16 lbs/in
SKU 10486CS
Solid Length 0.17 in
Suggested Max Deflection 0.25 in
Suggested Max Load 4 lbf
Total Coils 5
Wire Diameter 0.033 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10486
Ends Closed & Ground
Finish Gold Iridite
Free Length 14.22 mm
Inside Diameter 7.47 mm
Material Spring Steel
Outside Diameter 9.14 mm
Part Type Standard
Rate 2.8 N/mm
SKU 10486CS
Solid Length 4.32 mm
Suggested Max Deflection 6.35 mm
Suggested Max Load 17.79 N
Total Coils 5
Wire Diameter 0.84 mm
The 10486CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.033" diameter spring steel, the 10486 spring design exhibits reliable strength across its 5 active coils, withstanding repeated compression cycles with a maximum load of 4 lbf without succumbing to fatigue.

We manufacture the 10486 design to provide a compression spring that is 0.56" long at rest and provides a consistent rate of 16 lbs/in along its recommended maximum of 0.25" deflection. For best results, your application should fully accommodate the inner (0.294") and outer (0.36") diameters of this spring and be designed for its closed & ground end configuration.
