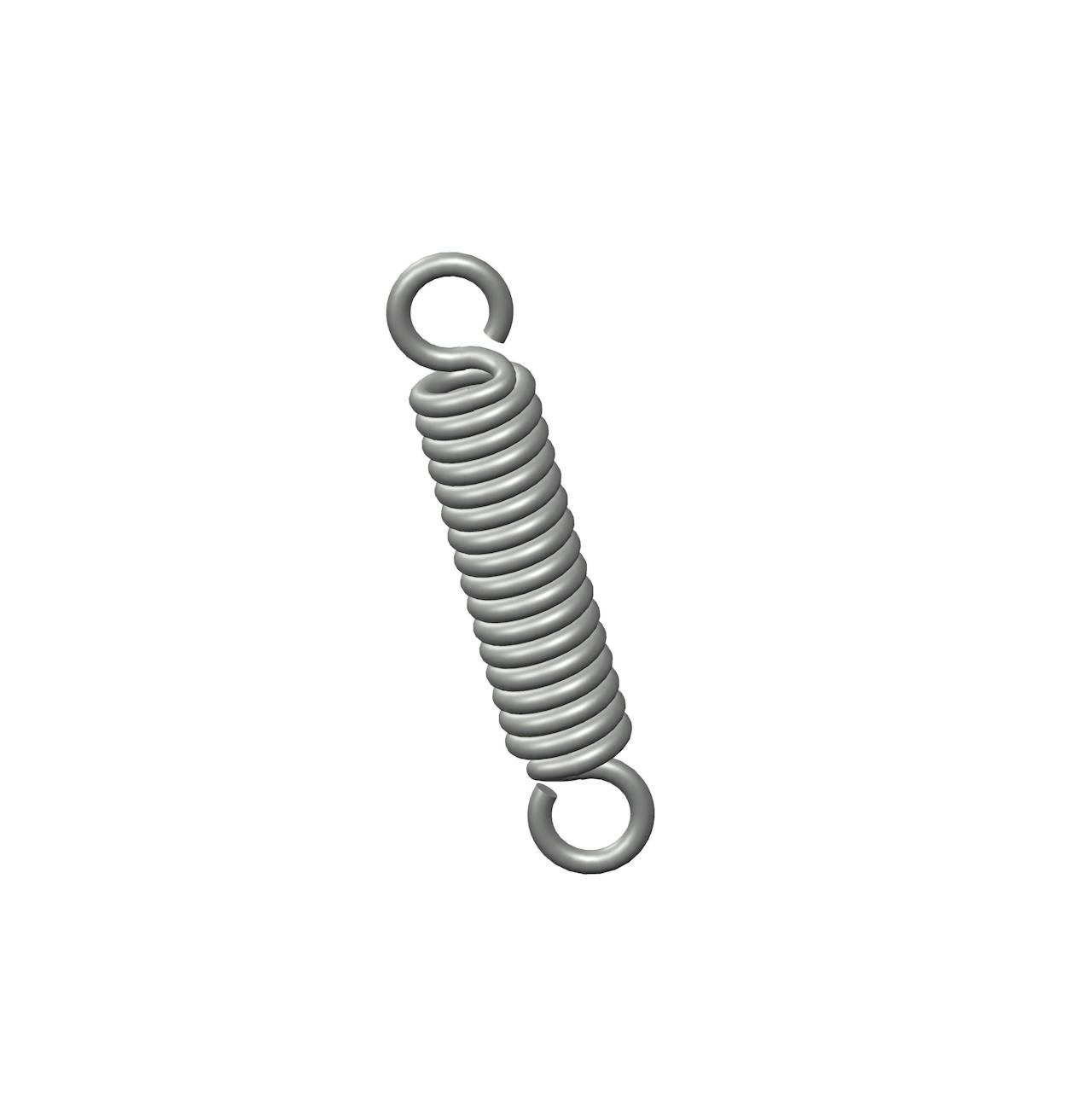

B18-124CS - 1.56 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.312 Inch and an initial tension of 8 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B18-124
Ends Full Loop
Finish None
Initial Tension 8 lb
Length 1.56 in
Material Spring Steel
Outside Diameter 0.312 in
Part Type Standard
Rate 56 lbs/in
SKU B18-124CS
Sugg Max Deflection 0.32 in
Sugg Max Load 26 lbf
Wire Diameter 0.06 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B18-124
Ends Full Loop
Finish None
Initial Tension 3.63 kg
Length 39.62 mm
Material Spring Steel
Outside Diameter 7.92 mm
Part Type Standard
Rate 9.81 N/mm
SKU B18-124CS
Sugg Max Deflection 8.13 mm
Sugg Max Load 115.65 N
Wire Diameter 1.52 mm
