TA-2386CS - 1.81 Inch Height High Carbon Steel Tapered Spring

Inventory Status
Estimated Lead Time

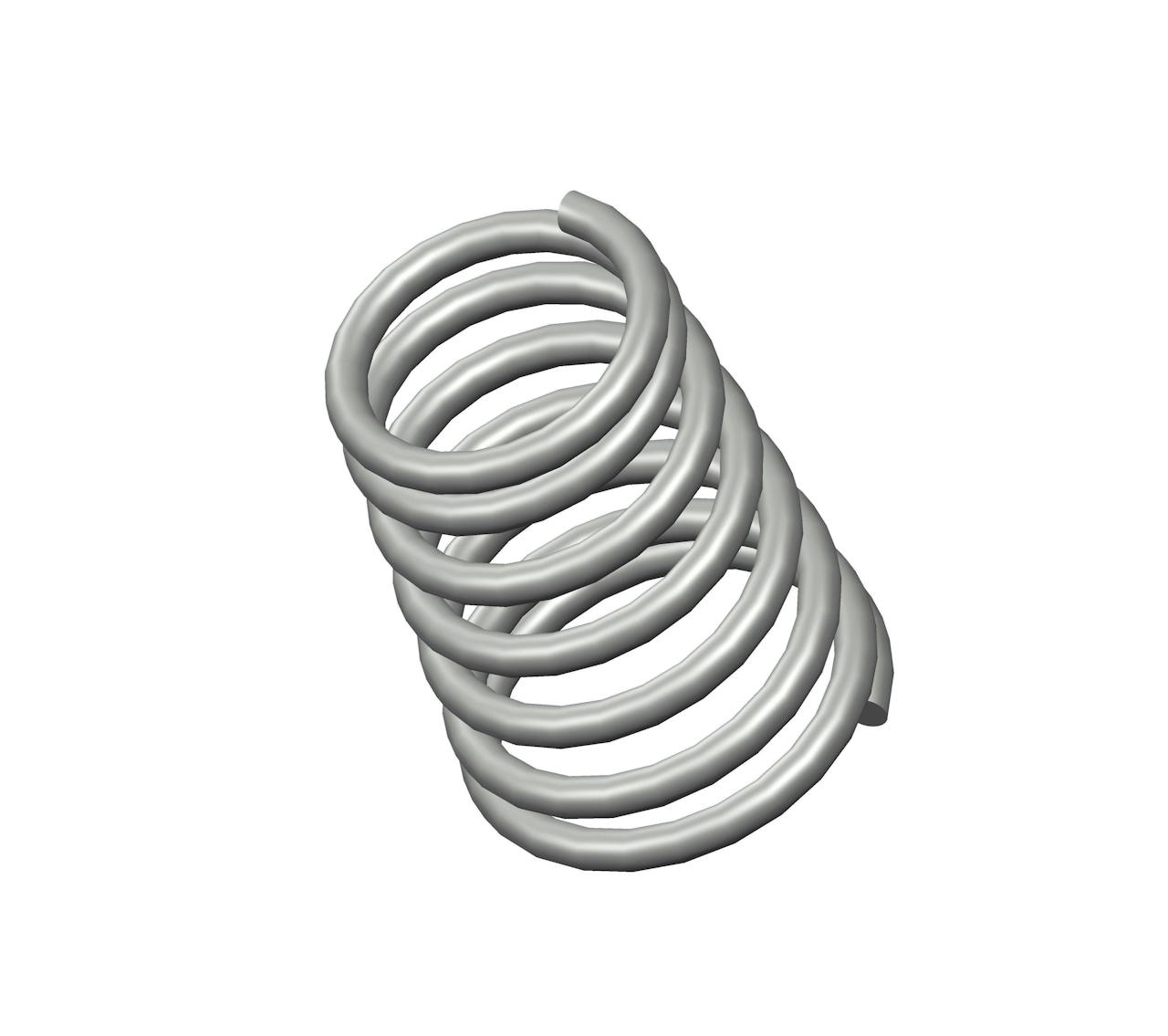

Tapered compression spring in High Carbon Steel with 7 total coils and Closed & Ground ends. The OD of this spring tapers from 1.015 Inch to 1.25 Inch. The spring has an I.D. of 0.775 Inch, and an average spring rate of 57.4 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 57.4 lbs/in
Brand Century Spring
Display Name TA-2386
Ends Closed & Ground
Finish Zinc
Free Length 1.81 in
Inside Diameter 0.775 in
Large Outside Diameter 1.25 in
Material High Carbon Steel
Measurement Units Standard
Outside Diameter 1.015 in
SKU TA-2386CS
Small Outside Diameter 1.015 in
Solid Height 0.83 in
Total Coils 7
Wind Direction Left
Wire Diameter 0.12 in
