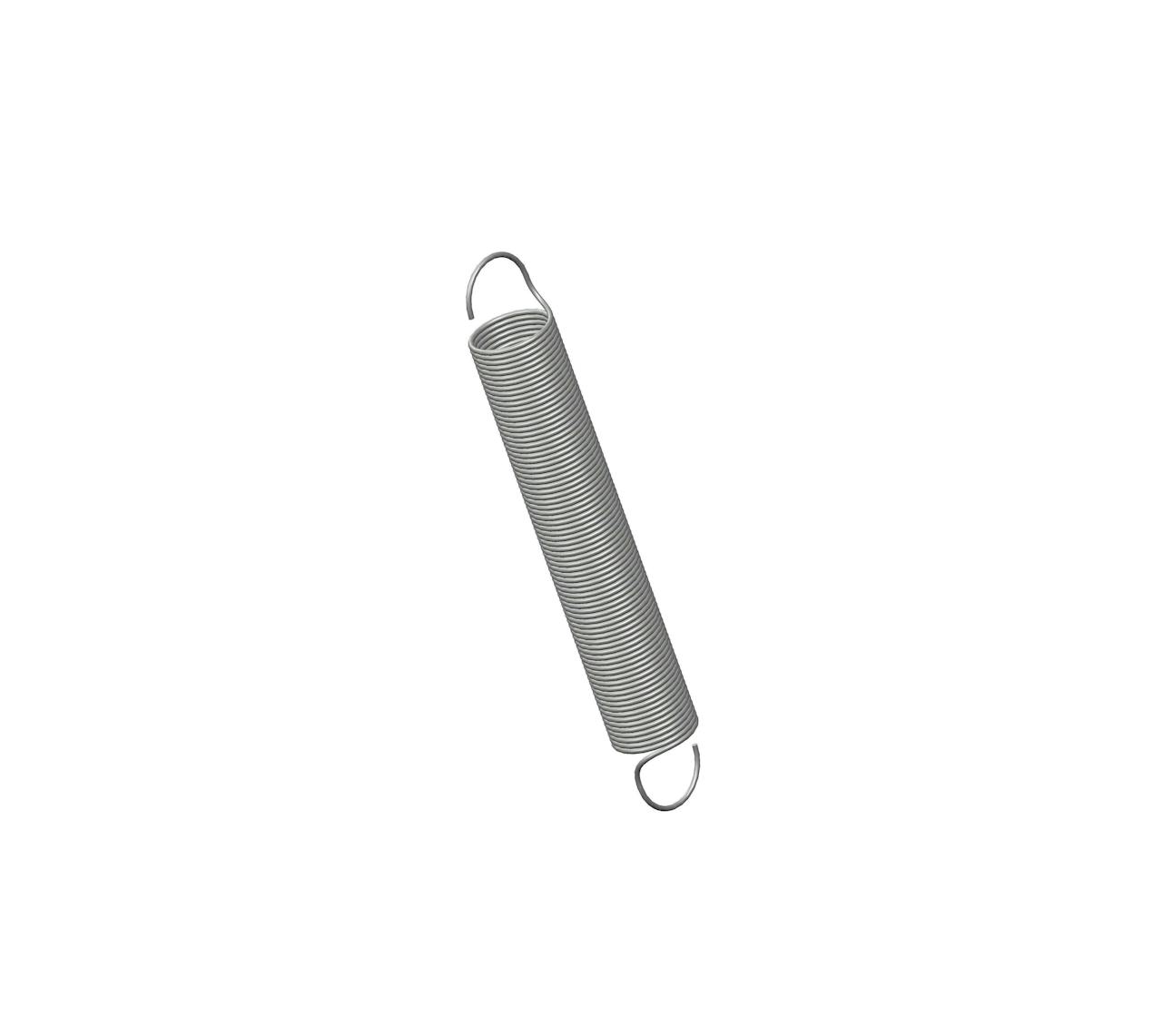

B17-178CS - 3.78 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.531 Inch and an initial tension of 0.2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B17-178
Ends Machine Hook
Finish Zinc
Initial Tension 0.2 lb
Length 3.78 in
Material Spring Steel
Outside Diameter 0.531 in
Part Type Standard
Rate 0.2 lbs/in
SKU B17-178CS
Sugg Max Deflection 13 in
Sugg Max Load 2.8 lbf
Wire Diameter 0.035 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B17-178
Ends Machine Hook
Finish Zinc
Initial Tension 0.09 kg
Length 96.01 mm
Material Spring Steel
Outside Diameter 13.49 mm
Part Type Standard
Rate 0.04 N/mm
SKU B17-178CS
Sugg Max Deflection 330.2 mm
Sugg Max Load 12.45 N
Wire Diameter 0.89 mm
